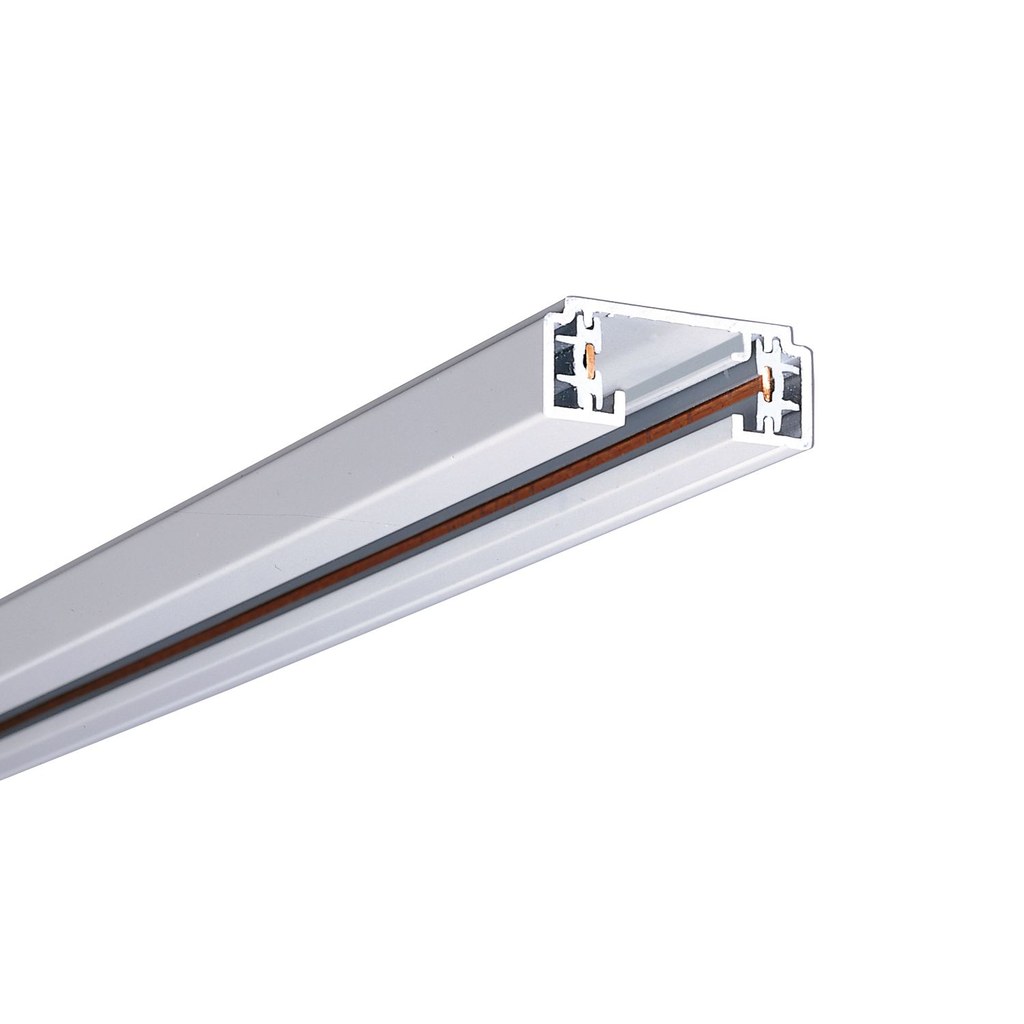

Halo LZR104MB Lazer Single Circuit Track, 4ft

Product Description

The HALO LZR104MB Lazer Two-Conductor track is available in two finishes and 4 lengths. The overall height is 9/16" and has a decorative reveal at the ceiling line. It accepts both Lazer Track lampholders and Halo Power-Trac lampholders. Connectors push into the ends of the Track. Straight, right angle and flexible connectors allow track to be assembled in almost any pattern.

• Accepts both Lazer Track and Power-Trac luminaires
• Structural channel is extruded aluminum,.050" nominal wall thickness
• Conductors are solid copper encased in rigid extruded PVC insulators

Product Highlights

The Lazer track is cULus listed and has visual polarity that indicates proper electrical installation of fixtures.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: LZR104MB
• Country of Origin: China

Technical Specifications

• Type: Lazer Lampholders and Systems
• Brand: Halo
• Width: 1.5 in
• Finish: Black
• Height: 0.7 Inch
• Length: 48 in
• Voltage: 120 Volt
• Amperage: 10 Amp
• Sub Brand: LZR102/LZR104/LZR106/LZR108 Lazer 2-Circuit Track
• Applications: Lighting
• Mounting Type: Track
• ARRA Compliant: No
• Manufacturer: Eaton Lighting Division
• Model / MPN: LZR104MB
• Family: LZR102/LZR104/LZR106/LZR108 Lazer Single Circuit Track
• UPC: 662400617426
• Amperage Rating: 20A
• Voltage Rating: 120V
• Material: Aluminum
• Standard/Approvals: UL Listed, CSA Certified, EISA Complaint
• Suitable For Use With: Both Lazer Track Lampholders and Halo Power-Trac Lampholders
