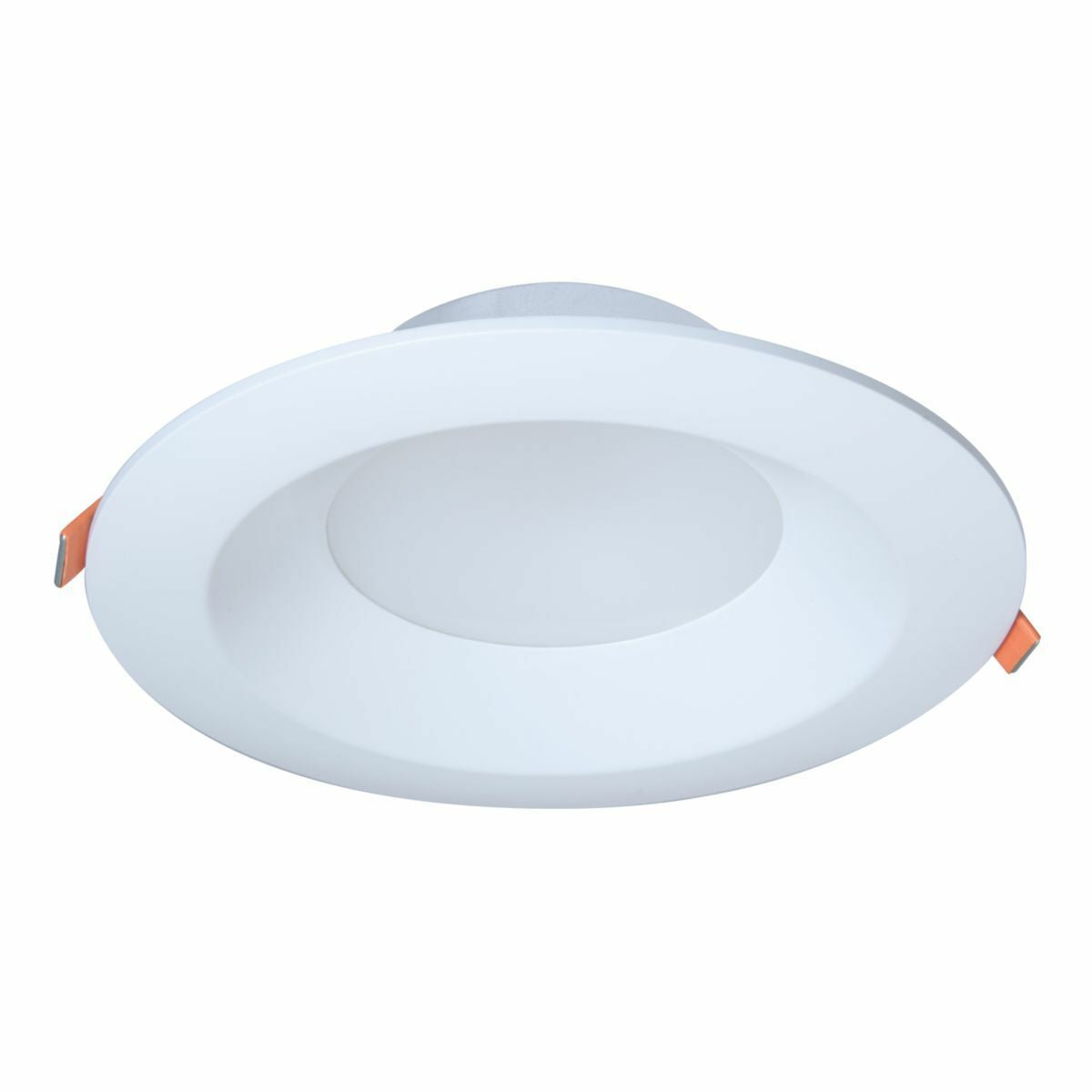

Halo LT6089FS231EWHDMR 6 inches LED Direct Mount Downlight Module, 800 Lumens, 2700/3000/3500K Selectable

Product Description

The Halo LT6089FS231EWHDMR is a 6" LED direct mount downlight module. This canless recessed light is designed for new construction, remodel, and retrofit installations without needing a housing or j-box. It features selectable color temperatures ranging from 2700K to 3500K and TRIAC dimming capability down to 10%.

• Canless Direct Mount design eliminates the need for a recessed housing or junction box.
• Offers selectable color temperatures: 2700K, 3000K, and 3500K.
• Dimmable down to 10% with select phase cut dimmers.

Product Highlights

This Halo LED downlight module provides uniform illumination and is suitable for wet locations. It's ideal for residential downlighting applications.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: LT6089FS231EWHDMR
• Country of Origin: China

Technical Specifications

• Type: Selectable CCT
• Brand: Halo
• Width: 3.375 in
• Height: 7.313 Inch
• Length: 7-1/2 Inch
• Lumens: 800 Lumen
• Voltage: 120 Volt
• Wattage: 8.3 Watt
• Diameter: 6 Inch
• Lamp Type: LED
• Sub Brand: Market Pro
• Applications: Lighting
• Mounting Type: Direct
• Color Temperature: 2500 - 3000 K Warm
• Correlated Color Temp: 3500 K
• Manufacturer: Cooper Lighting Solutions
• Country of Origin: China
• Special Features: Option for baffle trim or smooth splay
• Standard: UL Listed;Wet Locations Listed;AIR-TITE (TM) Certified ASTM E283;NEC;EMI/RFI per FCC 47CFR Part 15 Class B;RoHS Compliant;LM79/LM80 Compliant;TM21 standards;California Title 24;Energy Star Certified;IP66 Rated
• UPC: 080083159963
• GTIN: 00080083159963
• Series: LTDM6 Selectable Series
• Dimming: TRIAC dimming capability to 10%
• Location: Wet location listing
• CRI: 90.0000
• Frequency Rating: 60 Hz
• Power Factor: >=0.9
• Item Name: LED Recessed Canless Trim Module
• Temperature Rating: -30 to 40 deg C Ambient
• Finish: Matte
• Environmental Conditions: Wet Location
• Dimmable: Yes
• Degree of Protection: IP55
• Construction: Injection Molded Plastic, Die Formed Metal Driver/Junction Box
• Voltage Rating: 120 Volt AC
• Amperage Rating: 0.074 Amp
• Standards: UL Listed, ASTM-E283, IES LM-80-08 And TM-21-11 Tested, IECC, NEC 410.16, EMI/RFI Emissions Per FCC 47 CFR Part 15 Consumer Limit, California Title 24, JA8, RoHS Compliant, Energy Star Qualified
• Trim Type: Baffle
• Component Type: Trim
• Trim Size: 6 Inch
• Lamp Type/Designation: LED
• Lamp Included: No
• Fixture Wattage: 8.3 Watt
• Driver Type: LE And TE Phase Cut 10% Dimming
• Ceiling Type: Insulated/Non-Insulated, Air-Tight
• Average Life: 35000 Hour
• Shape: Round
• UNSPSC: 39111505
• Manufacturer Part Number: LT6089FS231EWHDMR
• Manufacturer Name: Cooper Lighting
• Light Color: White
• LED Chip Code: 2835
• Power Source: Hardwired
• Control Style: Switch
• Sensor Type: Light
• Features: Dimmable
• Room: Kitchen, Living Room, Home Office/Study, Bathroom, Bedroom, Dining Room
• Lighting Technology: LED
• Number of Settings: 3
• Light Direction: Downwards
• Installation Area: Indoor
• Shade Shape: Round
• Output Voltage: 120 V
• Product Line: Halo
