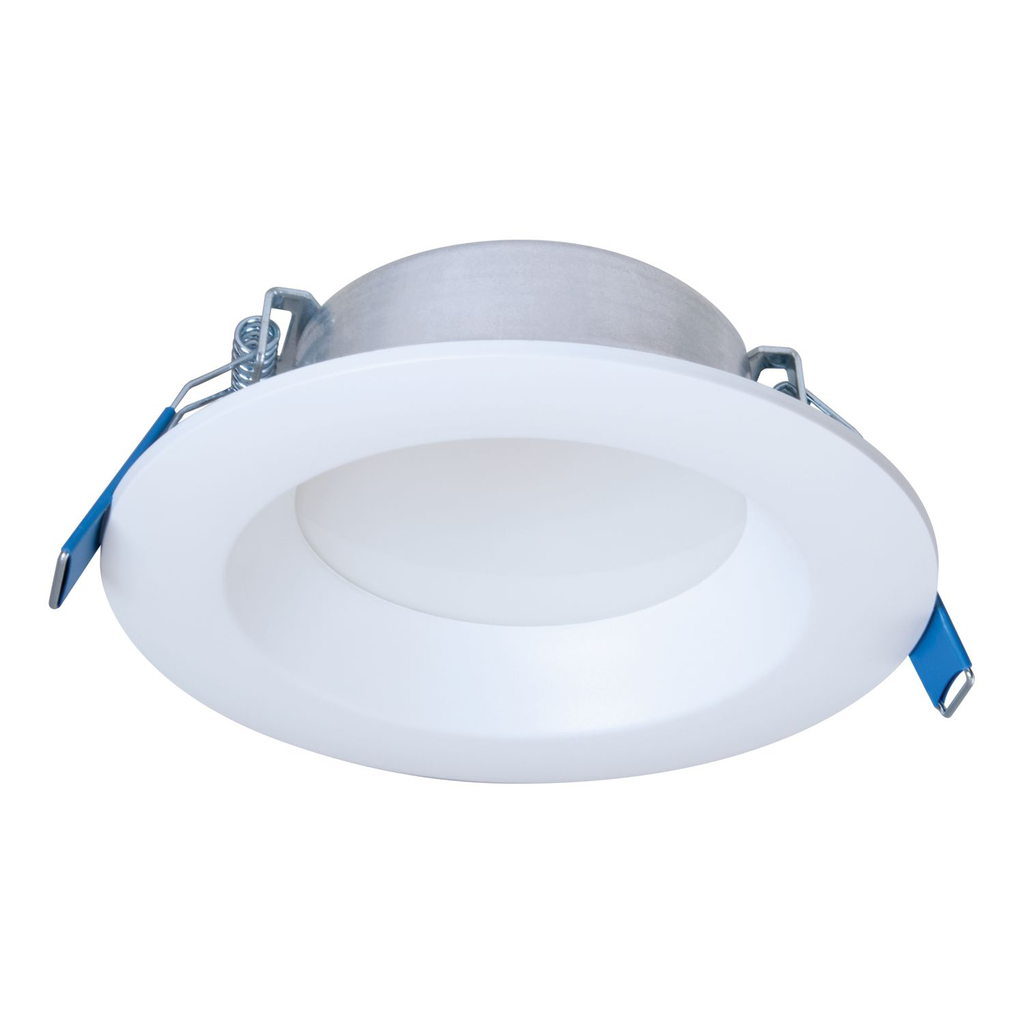

Halo LT4069FS231EWHDMR 4 inches LED Direct Mount Downlight Module 600 Lumens 2700/3000/3500K Selectable

Product Description

The Halo LT4069FS231EWHDMR is a 4" LED direct mount downlight module. This canless recessed light is designed for new construction, remodel, and retrofit installations without needing a housing or j-box. It features field selectable 3 CCT color temperatures. The LED driver offers TRIAC dimming capability to 10%, and the lens provides uniform illumination and wet location listing.

• Canless Direct Mount does not require recessed housing or junction box
• 3-color selectable CCT: 2700K, 3000K, 3500K
• 120V input, dimmable down to 10% with select phase cut dimmers

Product Highlights

The Halo LT4069FS231EWHDMR LED downlight module is easy to install in shallow plenum spaces and is compatible with Halo round or square mounting frames.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: LT4069FS231EWHDMR
• Country of Origin: China

Technical Specifications

• Type: Selectable CCT
• Brand: Halo
• Lumens: 600 Lumens
• Voltage: 120 Volt
• Wattage: 6.97 Watt
• Diameter: 4 Inch
• Lamp Type: LED
• Sub Brand: Market Pro
• Applications: Lighting
• Mounting Type: Direct
• Color Temperature: 2700/3000/3500K Selectable
• CRI: 90
• Dimming: TRIAC dimming capability to 10%
• Size: 4"
• Location: Wet location listing
• Frequency Rating: 60 Hz
• Power Factor: >=0.9
• Item Name: LED Recessed Canless Trim Module
• Temperature Rating: -30 to 40 deg C Ambient
• Finish: Matte White Flange
• Environmental Conditions: Wet Location
• Degree of Protection: IP55
• Construction: Injection Molded Plastic, Die Formed Metal Driver/Junction Box
• Voltage Rating: 120 Volt AC
• Amperage Rating: 0.06 Amp
• Standards: UL Listed, ASTM-E283, IES LM-80-08 And TM-21-11 Tested, IECC, NEC 410.16, EMI/RFI Emissions Per FCC 47 CFR Part 15 Consumer Limit, California Title 24, JA8, RoHS Compliant, Energy Star Qualified
• Trim Type: Baffle
• Component Type: Trim
• Trim Size: 4 Inch
• Lamp Type/Designation: LED
• Lamp Included: No
• Fixture Wattage: 6.67 Watt
• Driver Type: LE And TE Phase Cut 10% Dimming
• Ceiling Type: Insulated/Non-Insulated, Air-Tight
• Average Life: 35000 Hour
• Shape: Round
• Manufacturer Part Number: LT4069FS231EWHDMR
• Manufacturer Name: Cooper Lighting
• UPC: 08008315993
• Energy Star Flag: No
• Color Rendering Index (CRI): 90
• Lens Type: Diffuse Injection Molded
• Light Color: Soft White
• Light Output: 93.3 Lumens/W
• Lighting Technology: seleCCTable®
• Series: LT4
• Ceiling Opening: 4 in
• Special Features: Option for baffle trim or smooth splay
• Standard: UL Listed;Wet Locations Listed;AIR-TITE (TM) Certified ASTM E283;NEC;EMI/RFI per FCC 47CFR Part 15 Class B;RoHS Compliant;LM79/LM80 Compliant;TM21 standards;California Title 24;Energy Star Certified;IP66 Rated
• GTIN: 00080083159925
• Item Type: LT4 Module
