Product Description

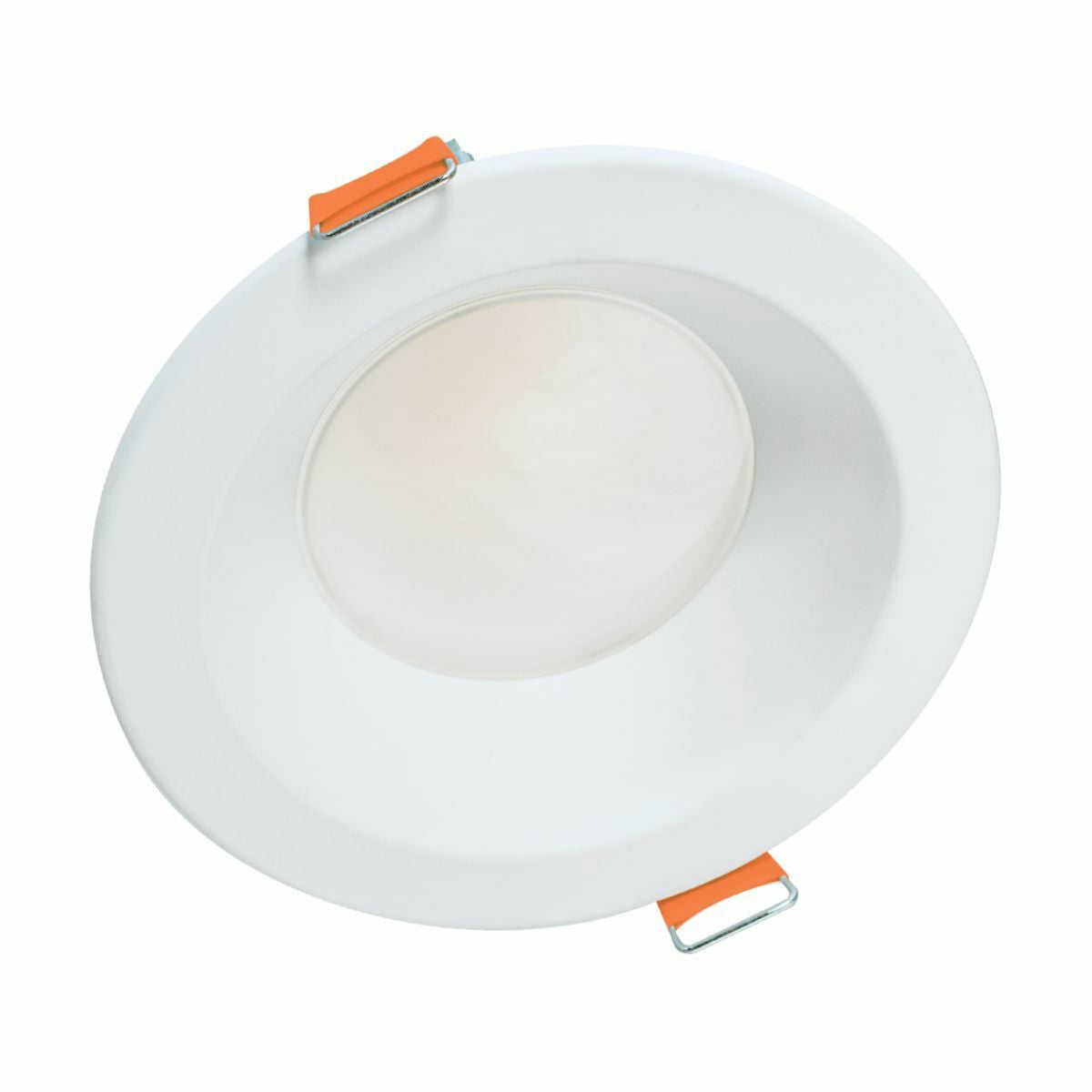

The HALO LCR615RD9FSE020 is a 6 inch round canless LED downlight with an LED lamp. This 16 W fixture operates on 120 to 277 VAC at 50/60 Hz, producing 1500 nominal lumens. It features field selectable CCT via switch, offering choices between 2700K, 3000K, 3500K, 4000K, 5000K, or 6500K, and has a 90 CRI.

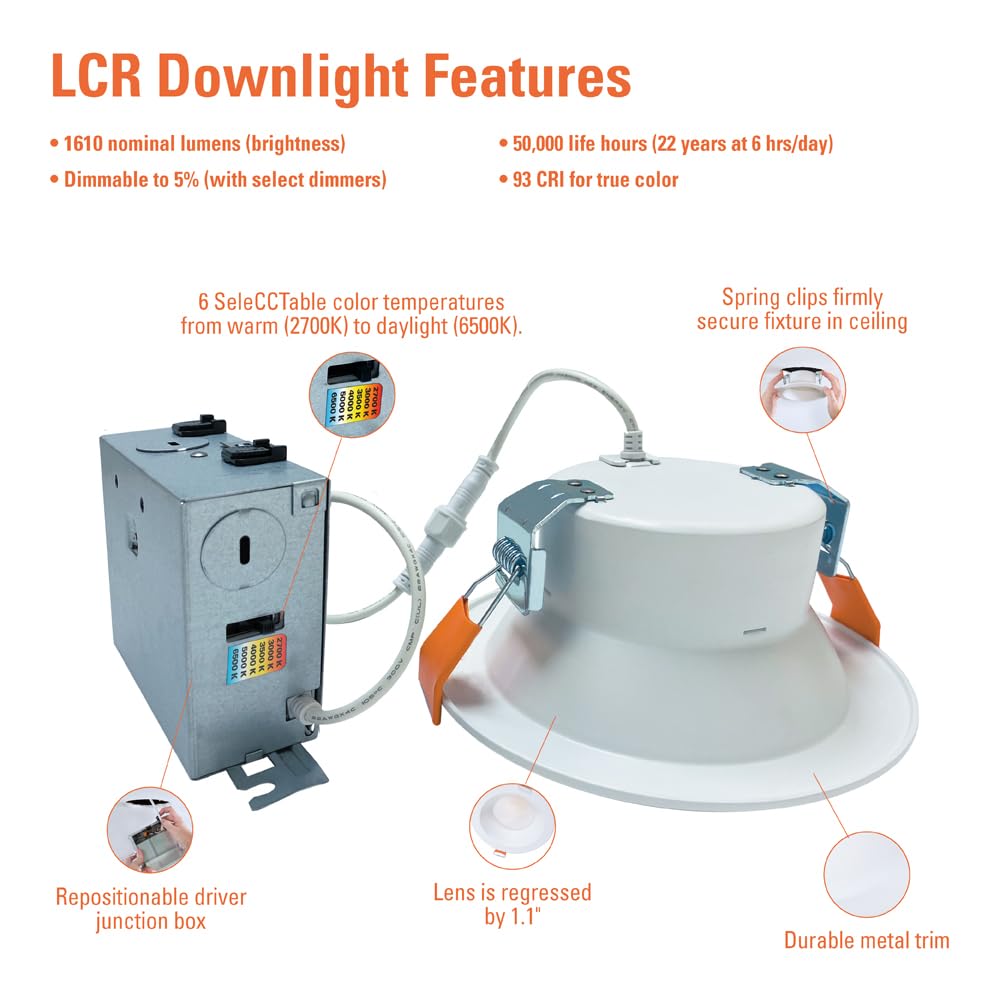

- Select from 6 CCTs via switch; 2700K, 3000K, 3500K, 4000K, 5000K, 6500K CCT; 90 CRI
- IC Rated

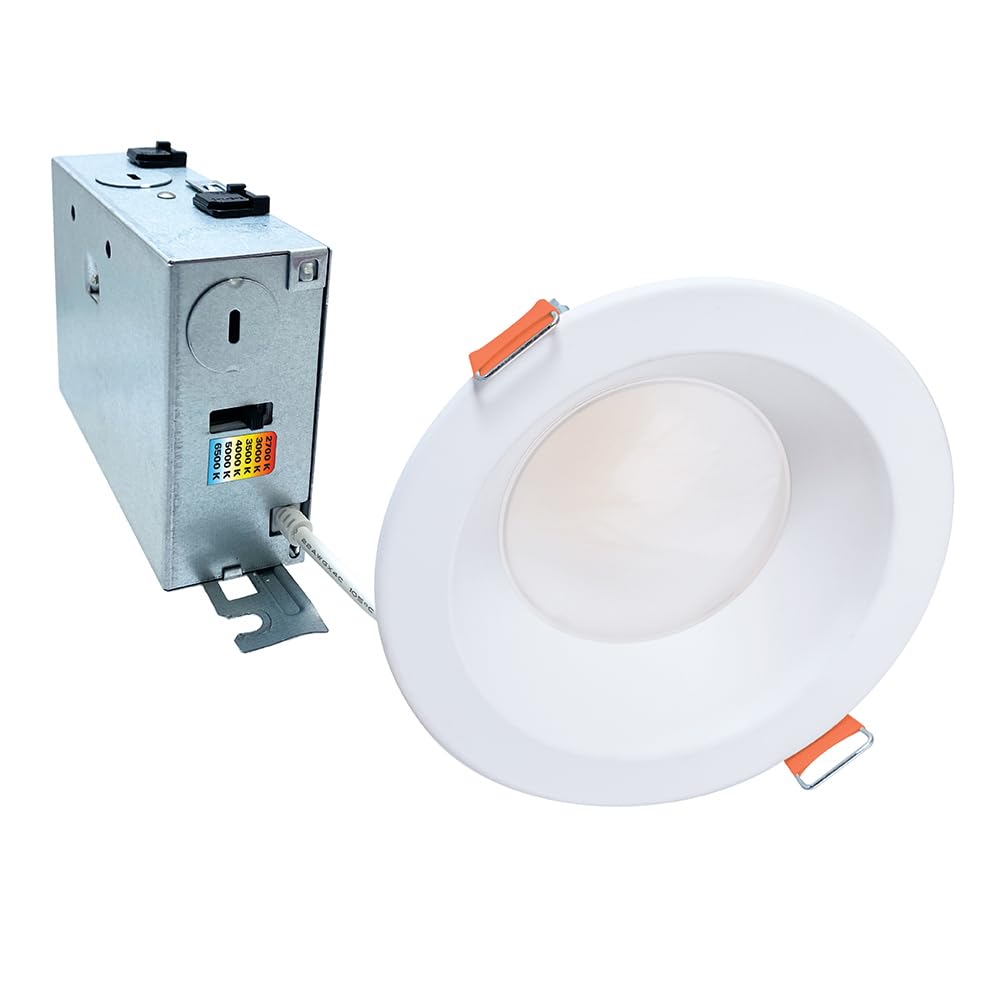

- Canless - does not require recessed housing or junction box
Product Highlights
The HALO LCR downlight is easy to install and provides high optical cutoff and visual comfort. Suitable for general area illumination in mixed-use, healthcare, education and hospitality environments.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: LCR615RD9FSE020
-
Country of Origin: China
Technical Specifications
-
Type: Direct Mount, Round Canless Downlight
-
Lumens: 1500 (nominal) Lumens
-
Series: LCR
-
Lamp Type: LED
-
Lens Type: Regressed Flat Lens
-
Dimensions: 6" Diameter
-
Light Color: Selectable
-
Manufacturer: Cooper Lighting Solutions
-
Mounting Type: Fixture Mounted
-
Voltage Rating: 120-277 V
-
Amperage Rating: 0.05A @ 277V
-
Fixture Wattage: 16 Watt
-
Color Temperature: Selectable, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K CCT
-
Lighting Technology: LED
-
Color Rendering Index (CRI): 90 CRI
-
Catalog Number: LCR615RD9FSE020
-
Brand: Halo
-
Sub Brand: LCR Series
-
Country of Origin: China
-
Made in USA: No
-
Application: Lighting
-
Standard: Energy Star;IECC Compliant;Title 24 Compliant;UL Listed;RoHS Compliant
-
UPC: 080083261628
-
GTIN: 00080083261628
-
Item Type: 6" LCR
-
Size: 6 in
-
Model / MPN: LCR615RD9FSE020
-
Product Type: LIGHT_FIXTURE
-
Wattage: 18 watts
-
Brightness: 1500 Lumen
-
Included Components: Bulb
-
Model Number: LCR615RD9FSE020
-
Model Name: Canless Downlight
-
Item Type Name: Downlight
-
Is Assembly Required?: No
-
Watts: 18
-
Lumens/Watt: 83
-
Input Volts: 120-277V
-
Dimmable: Yes
-
Life (hrs): 50,000
-
Indoor/Outdoor: Indoor/Outdoor
-
Fixture Type: Downlight Recessed
-
Total Light Output (lumens): 1610
-
Appearance/Correlated Color Temperature (Kelvin): 4000k,5000k,2700k,3500k,3000k
-
Color Quality (CRI): 96
-
Can Size(s) (inches): 5
-
Can Rating(s): Type IC Airtight
-
Light Source Life (hours): 72000
-
Total Input Power (Watts): 17.5
-
Power Factor: 0.99
-
Energy Efficiency (lumens/Watt): 92.0
-
Connected Capable: No
-
Certifications: UL, RoHS
