Product Description
The Halo HU1124D9SP under cabinet lighting is an integrated LED lamp with an 11 W fixture. Operating at 120 VAC and 0.092 A, it features a selectable color temperature of 2700/3000/4000 K and a 90 CRI. Ideal for task, accent, office, cove and utility lighting, it offers dimming down to 5%.
- Dimmable down to 5% with select 120 V dimmers
- Three position external selectable color temperature switch allows users to choose between 2700K, 3000K and 4000K and adjust per their lighting needs
- Extruded aluminum housing and color matched end caps with a sleek over all height less than 1 in
Product Highlights
This Halo under cabinet light provides maximum energy savings with easy installation and customizable color temperature.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: HU1124D9SP
-
Country of Origin: China
Technical Specifications
-
Lumens: 785 Lumens
-
Series: HU11
-
Lamp Type: LED
-
Lens Type: Clustered Proximity Phosphor
-
Lamp Wattage: 11 W
-
Light Output: 60 Lumens/W
-
Mounting Type: Surface
-
Housing Finish: White
-
Voltage Rating: 120 VAC
-
Amperage Rating: 0.092 A
-
Fixture Wattage: 11 W
-
Housing Material: Aluminum
-
Color Temperature: 2700/3000/4000 K
-
Color Rendering Index (CRI): 90
-
Wattage: 11 W
-
Sub Brand: Market Pro
-
Applications: Lighting
-
Mounting: Under Cabinet
-
Correlated Color Temp: 2700 K
-
Finish: White
-
Standard: cULus Listed;Damp Locations Listed;Energy Star Certified;Title 24 Compliant
-
Application: For task, accent, office, cove and utility, under and above cabinet lighting display
-
Socket Type: N/A
-
Brand Name: Cooper Halo
-
Special Features: 3 selectable color temperatures: 2700K; 3000K and 4000K; 90 CRI
-
Voltage: 120 Volt
-
Power Factor: >0.9
-
Number of Lamps: 1.0000
-
Item Name: LED Undercabinet Light
-
Includes: Romex or 1/2 Inch Conduit Connector
-
Environmental Conditions: Damp Location
-
Dimmable: Yes
-
CRI: 90.0000
-
Construction: Extruded Aluminum
-
Standards: cULus Listed, IECC, ASHRAE, FCC Class B, Title 24 Compliant, Energy Star Certified, RoHS Compliant
-
Shade Type: Low-Glare Angled Lens
-
Lamp Type/Designation: Integrated LED
-
Lamp Included: Yes
-
Driver Type: ELV/Triac, Flicker-Free Dimming to 5%
-
Collection: SeleCCTable™
-
Average Life: 50000 Hour
-
Manufacturer Name: Cooper Lighting
-

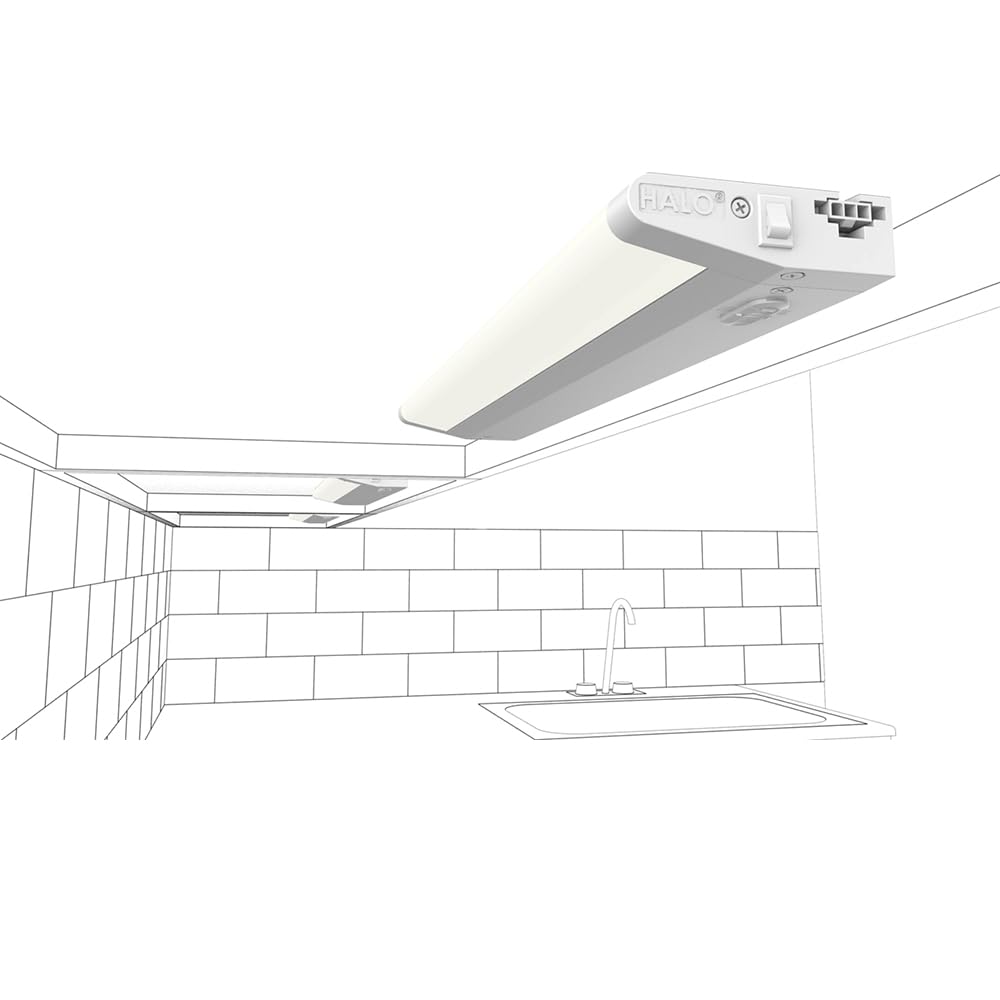

Feature8: Each unit is secured directly to the mounting surface with two integral fasteners keeping installation costs and efforts low, can be mounted in horizontal and vertical orientations
-
Manufacturer Part Number: HU1124D9SP
-
Cabinet Light Length (Inches): 24
-
Model / MPN: HU1124D9SP
-
Product Type: LIGHT_FIXTURE
-
Number of Items: 1.0
-
Description: CPL HU1124D9SP 24" LED UNDERCAB27K/30K/40K WHITE
-
Trade Size: 24IN
-
Catalog Description (MFR): 24" Integrated Undercabinet, Selectable CCT (2700K-4000K), Dimmable, White
-
Catalog Number: HU1124D9SP
