Product Description

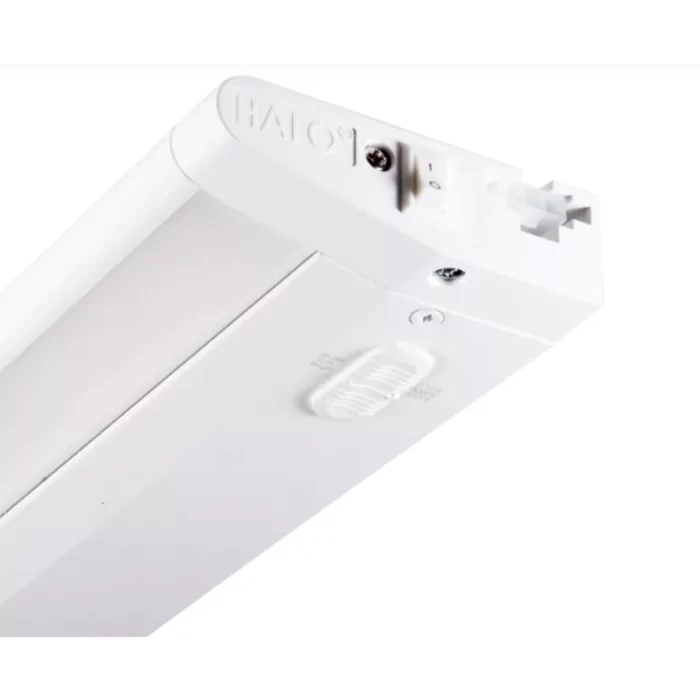

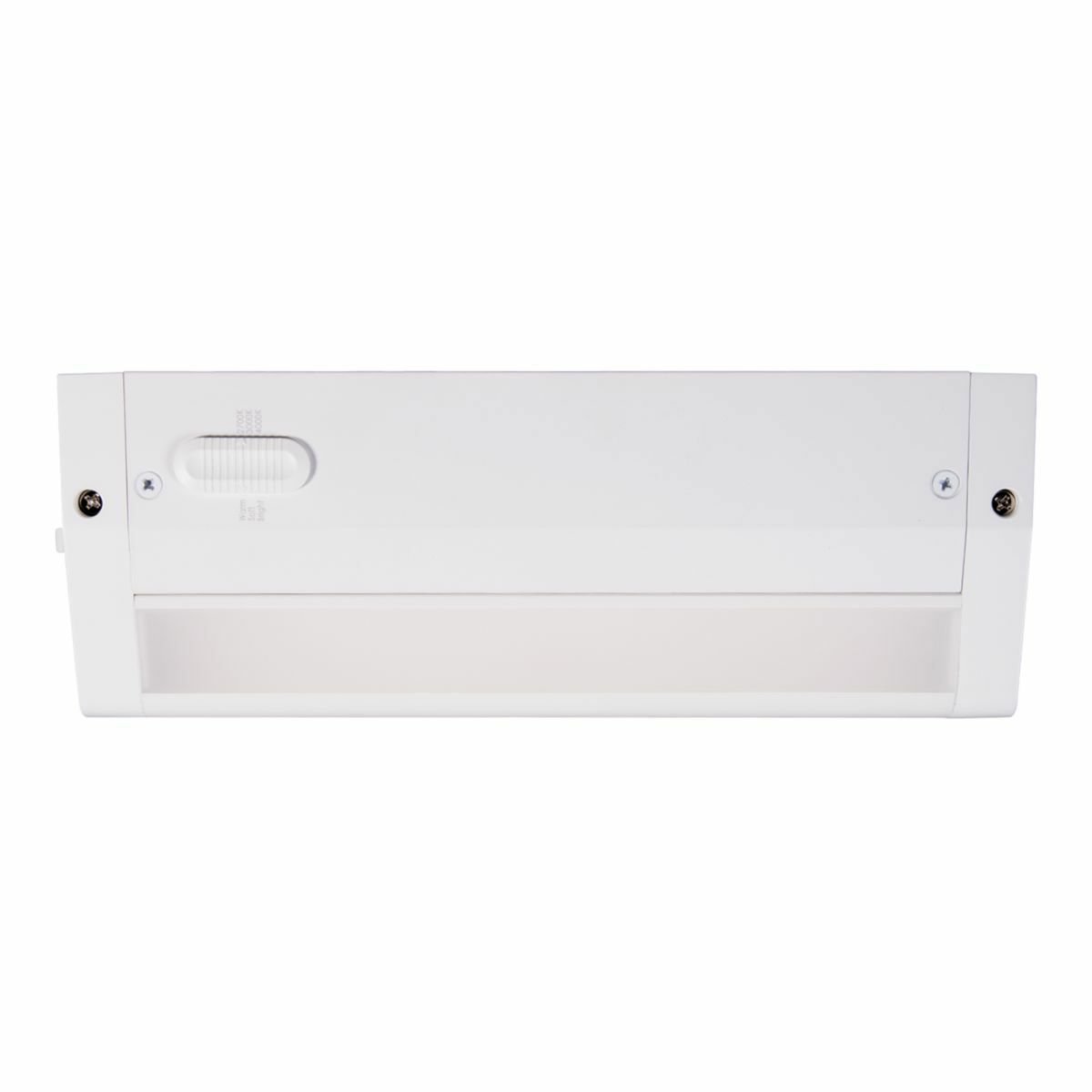

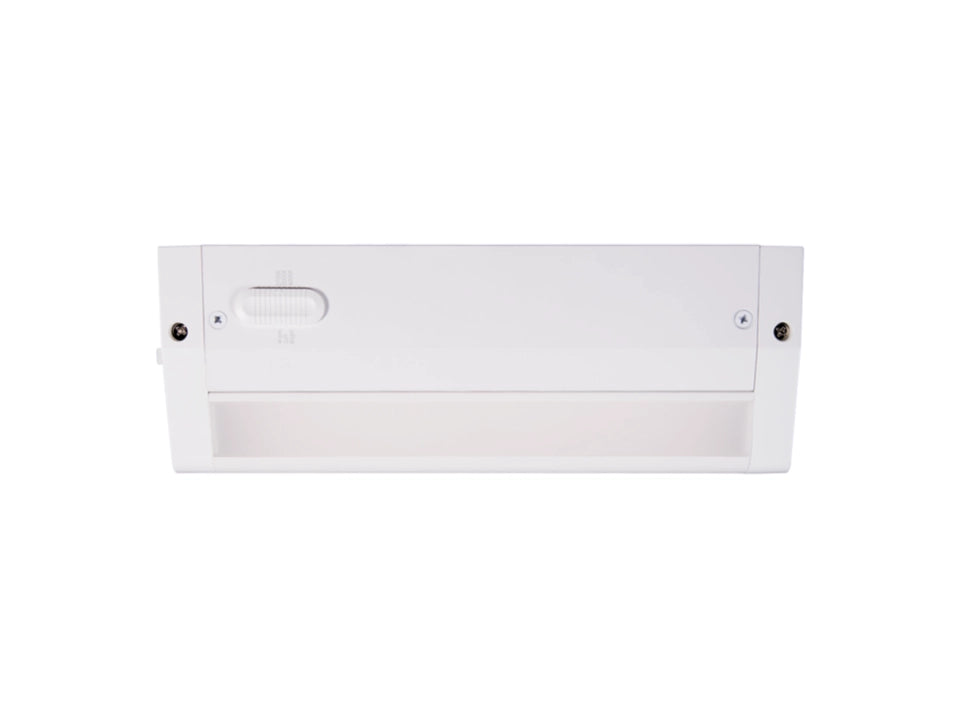

The Halo HU1109D9SP under cabinet lighting features an integrated design. Operating at 120 VAC and 4.5 W, this LED lamp fixture provides 300 lumens with a light output of 60 Lumens/W. Users can customize the color temperature at 2700/3000/4000 K with a 90 CRI. Ideal for task, accent, office, cove and utility lighting.
- Dimmable down to 5% with select 120 V dimmers
- Three position external selectable color temperature switch allows users to choose between 2700K, 3000K and 4000K and adjust per their lighting needs
- Extruded aluminum housing and color matched end caps with a sleek over all height less than 1 in
Product Highlights
This under cabinet lighting has multiple wiring options for easy installation and includes conduit connector and Romex strain relief hardware.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: HU1109D9SP
-
Country of Origin: China
Technical Specifications
-
Type: Integrated
-
Lumens: 300 Lumens
-
Series: HU11
-
Lamp Type: LED
-
Lens Type: Clustered Proximity Phosphor
-
Lamp Wattage: 4.5 W
-
Light Output: 60 Lumens/W
-
Manufacturer: Cooper Lighting Solutions
-
Mounting Type: Surface
-
Housing Finish: White
-
Voltage Rating: 120 VAC
-
Amperage Rating: 0.0375 A
-
Fixture Wattage: 4.5 W
-
Housing Material: Aluminum
-
Color Temperature: 2700/3000/4000 K
-
Color Rendering Index (CRI): 90
-
Finish: White
-
Brand: Halo
-
Sub Brand: HU11 LED SeleCCTable™ Under Cabinet
-
Country of Origin: China
-
Made in USA: No
-
Application: Lighting
-
Special Features: CCT Selectable
-
Standard: cULus Listed;Damp Locations Listed;Energy Star Certified;Title 24 Compliant
-
Item Type: Surface
-
Wattage: 4.5 W
-
Size: 9
-
Family group: LIGHTING FIXTURES
-
Input Volts: 120V
-
Dimmable: Yes
-
Lumens/Watt: 67
-
CRI: 90
-
Efficiency: 66.67 lm/W
-
Voltage: 120 Volt
-
ARRA Compliant: No
-
Order Code: HU1109D9SP
-
Accepted Voltage Frequency: 100 to 120 Volts and 60 Hertz
-
Control Method: Touch
-
White Brightness: 300 Lumens
-
Power Consumption: 4.5 Watts
-
Light Source Wattage: 4.5 Watts
-
Light Source Type: LED
-
Indoor Outdoor Usage: Indoor
-
Power Source: Corded Electric
-
Brightness: 300 lumen
-
Color Temperature Max: 4000K
-
Special Feature: Dimmable
-
Watts: 4.5
-
Input Voltage: 120V
-
Dimmable to: 5%
-
Life: 50,000 Hours
-
Damp Rated: True
-
UL Listed: True
-
ENERGY STAR Qualified: True
-
Correlated Color Temp: 4,000 K
-
Color Accuracy: 90
-
Applications: Lighting
-
Amperage: 0.0375 Amp
