Product Description

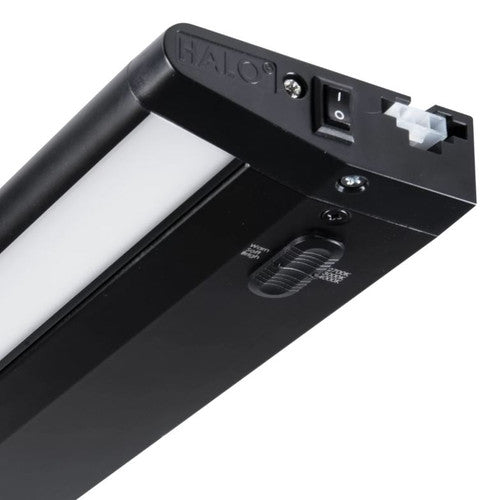

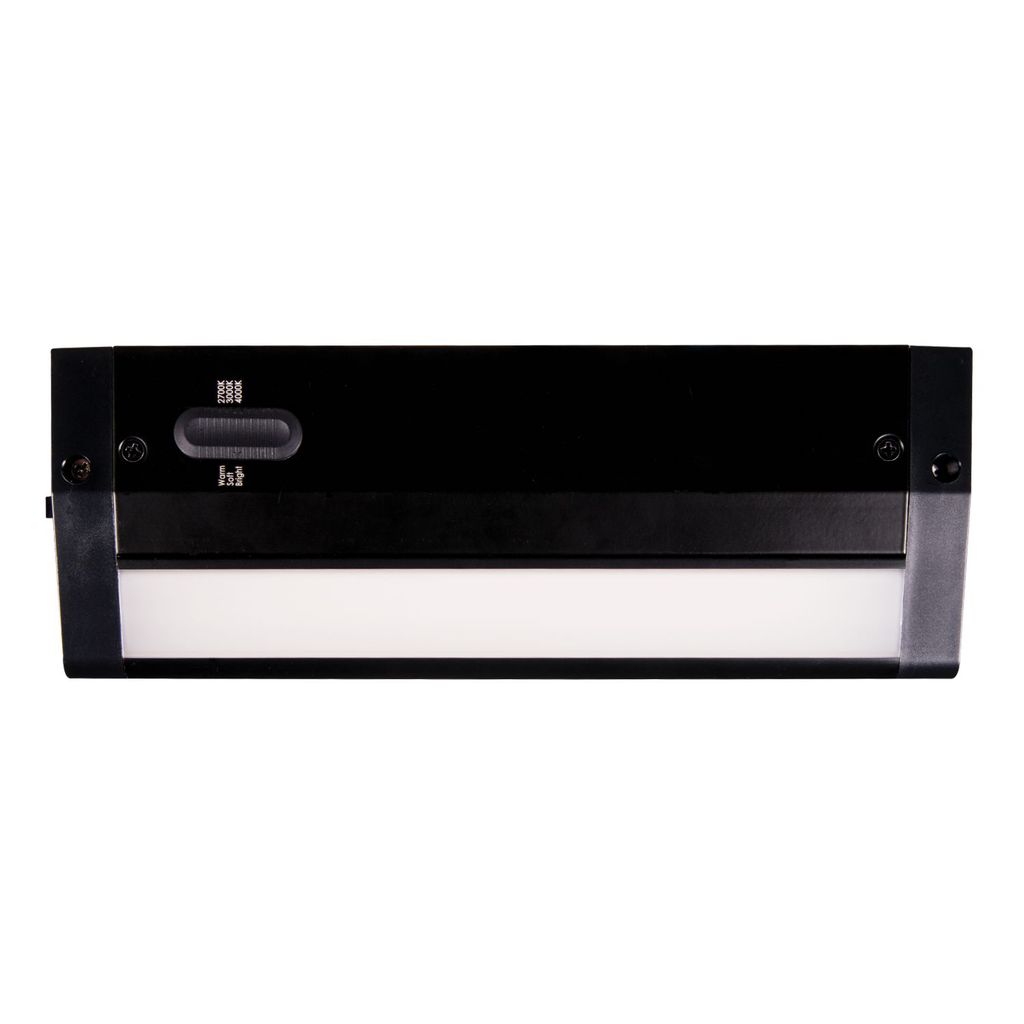

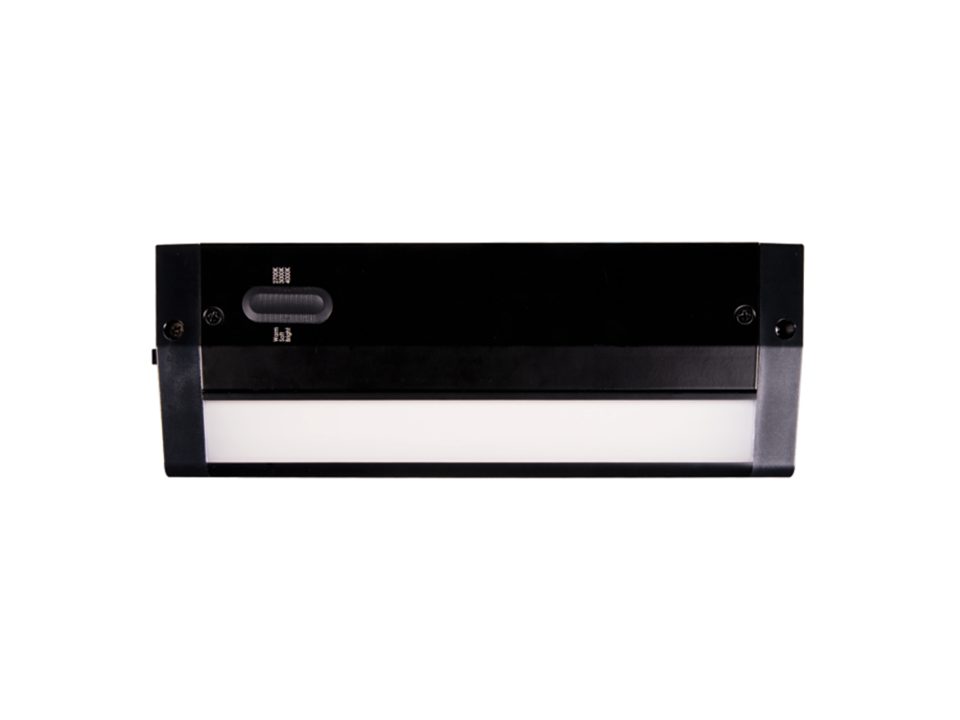

The HALO HU1109D9SMB under cabinet lighting features an integrated LED with a 4.5W fixture. It operates at 120 VAC and 0.0375 A. The aluminum housing has a matte black finish. Ideal for task, accent, office, cove and utility, under and above cabinet lighting display.
- Dimmable down to 5% with select 120 V dimmers
- Multiple wiring options including flexible conduit, romex or plugin
- Equipped with a seleCCTable switch that allows users to customize color temperature of 2700 K, 3000 K and 4000 K in 90 CRI
Product Highlights
This undercabinet light has a low profile design and delivers maximum energy savings with easy installation. It provides 60 Lumens/W light output and 300 Lumens.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: HU1109D9SMB
-
Country of Origin: China
Technical Specifications
-
Type: Integrated
-
Lumens: 300 Lumens
-
Lamp Type: Integrated LED
-
Light Output: 60 Lumens/W
-
Manufacturer: Cooper Lighting Solutions
-
Mounting Type: Surface
-
Housing Finish: Matte Black
-
Voltage Rating: 120V
-
Amperage Rating: 0.0375 A
-
Fixture Wattage: 4.5 W
-
Housing Material: Aluminum
-
Color Temperature: 2700/3000/4000 K
-
Color Rendering Index (CRI): 90
-
Wattage: 4.5 Watt
-
Amperage: 0.0375 Amp
-
Sub Brand: HU11 LED SeleCCTable?? Under Cabinet
-
Product UPC: 08008387524
-
12-Digit UPC: 080083875245
-
Applications: Lighting
-
ARRA Compliant: No
-
Color Accuracy: 90
-
Correlated Color Temp: 4,000 K
-
Shape: Rectangular
-
Power Factor: >0.9
-
Lamp Wattage: 4.5 Watt
-
Item Name: LED Under Cabinet Fixture
-
Includes: Mounting Hardware
-
Dimmable: Yes
-
Construction: Extruded Aluminum
-
Standards: cULus Listed, IECC, Energy Star Certified, FCC, Title 24 Compliant
-
Lamp Type/Designation: LED
-
Lamp Included: No
-
Driver Type: ELV/Triac Down to 5%
-
Manufacturer Name: Cooper Lighting
-
RoHS Flag: Contact manufacturer
-
Energy Star Flag: No
-
UNSPSC: 39111528
-
GTIN: 00080083875245
-
UPC: 08008387524
-
Manufacturer Part Number: HU1109D9SMB
-
Country Of Origin: China
-
Color Temperature Max: 4000K
-
Voltage: 120 Volt
-
Mounting: Under Cabinet
-
Special Features: 3 selectable color temperatures: 2700K, 3000K and 4000K, 90 CRI
-
Standard: cULus Listed;Damp Locations Listed;Energy Star Certified;Title 24 Compliant
-
Item Type: Surface
