Product Description

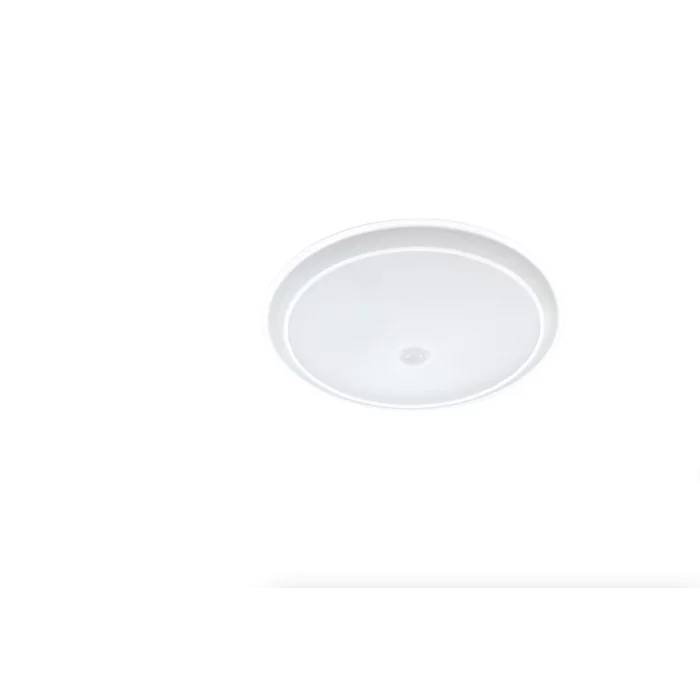

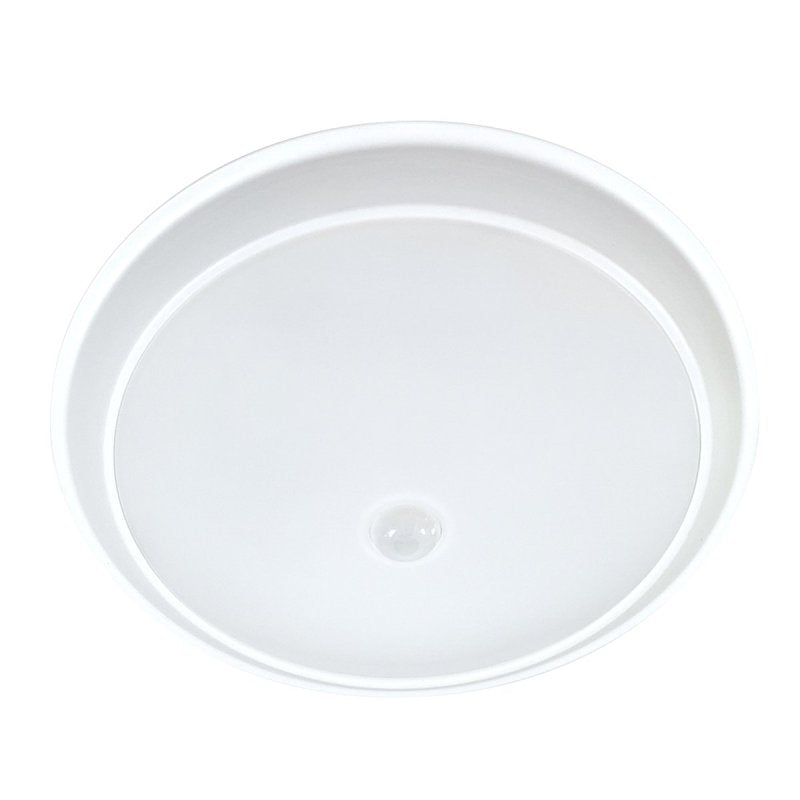

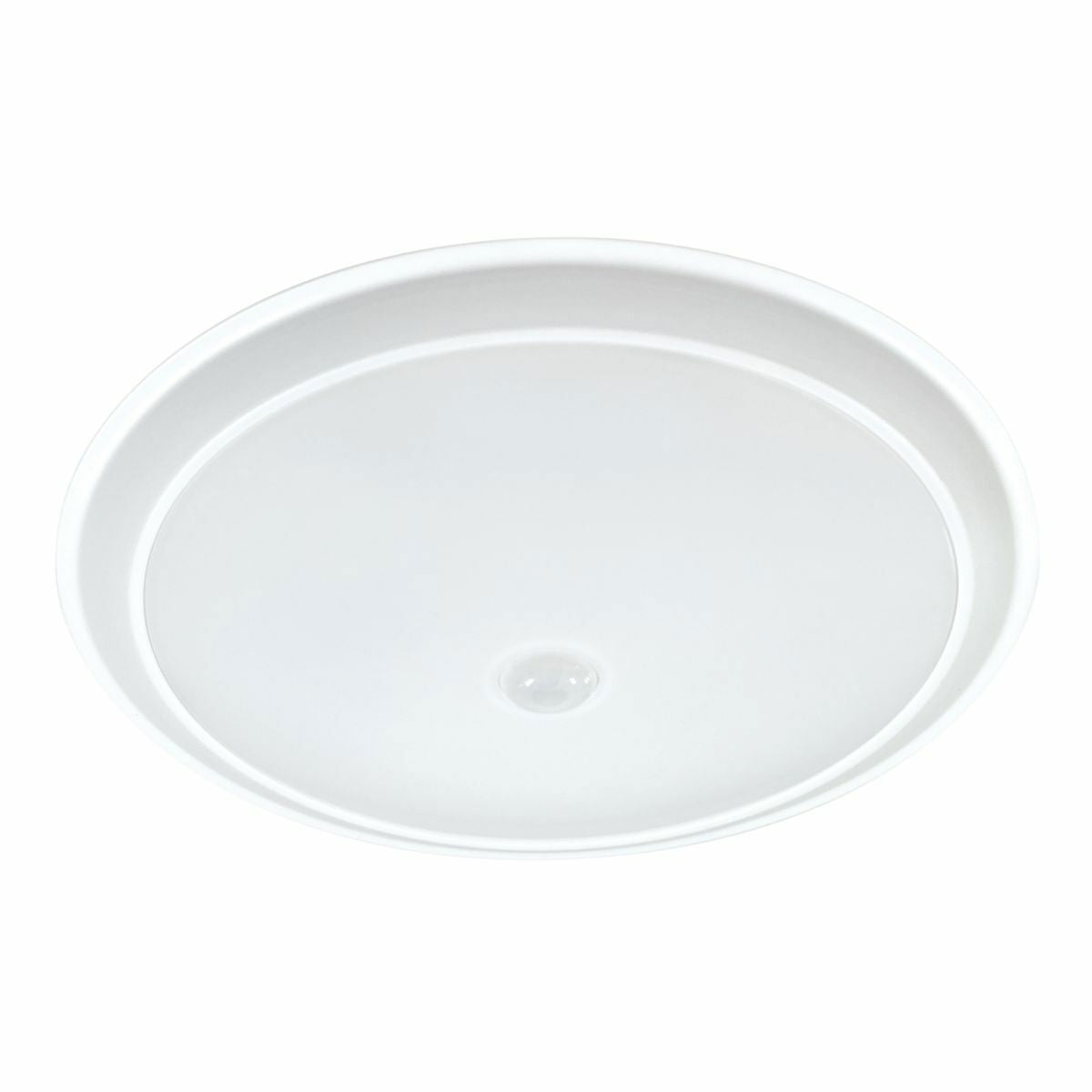

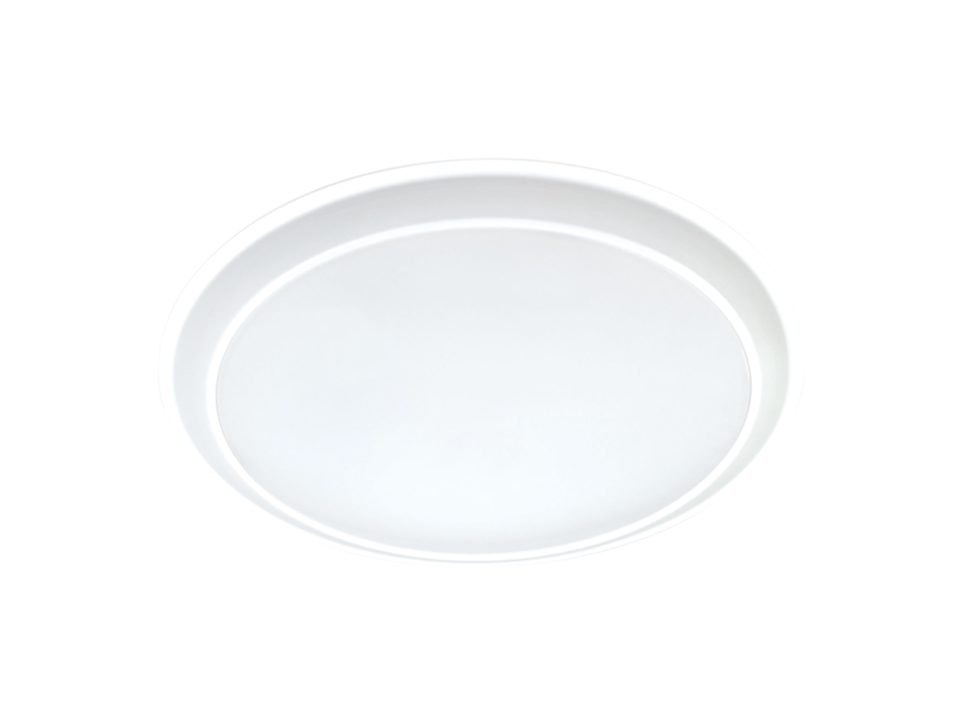

The HALO HLSMS9129301EWH 9" Motion Sensor LED Surface Light is a low-profile surface mount fixture suitable for ceiling or wall mounting. Operating at 120V, 17.5W, and 60Hz, it delivers 1200 lumens at 3000k CCT with a 90 CRI. The fixture is designed for damp locations and features continuous, flicker-free dimming from 100% to 10% with select leading or trailing edge 120V phase cut dimmers.
- Low profile surface mount fixture for ceiling or wall mounting
- Below the ceiling installation, no clips or plates needed
- Installs in most 3-1/2" and 4" ceiling junction and pancake boxes
Product Highlights
This LED surface light is easy to install and suitable for various residential applications, including damp locations.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: HLSMS9129301EWH
-
Country of Origin: China
Technical Specifications
-
Type: Low Profile, Dimmable, Damp Location
-
Lumens: 1200 Lumens
-
Series: Halo, HLS Series
-
Lamp Type: LED
-
Lens Type: low-profile convex lens
-
Average Life: L70 at 50,000 hours (TM-21)
-
Manufacturer: Cooper Lighting Solutions
-
Housing Finish: Matte White
-
Voltage Rating: 120 V
-
Fixture Wattage: 17.5 Watts
-
Housing Material: Stamped Aluminum
-
Color Temperature: 3000k CCT
-
Lighting Technology: LED
-
Color Rendering Index (CRI): 90 CRI
-
Sub Brand: HLS Series
-
Country of Origin: China
-
Made in USA: No
-
Application: Lighting
-
Mounting: Surface
-
Special Features: Sizes include 4", 6", & 9"
-
Standard: Energy Star;IECC Compliant;UL Listed;Title 24 Compliant;RoHS Compliant
-
UPC: 080083256969
-
GTIN: 00080083256969
-
Item Type: HLS Round LED Surface Mount
-
Wattage: 17.7 W
-
Amperage Rating: 0.148A
-
Aperture: 9 Inch
-
Color Temperature Max: 3000K
-
Mfg #: HLSMS9129301EWH
-
Certifications: UL
-
Watts: 18
-
Lumens/Watt: 70
-
Dimmable: Yes - 120v Only
-
Life (hrs): 50,000
-
Order Code: HLSMS9129301EWH
-
Current Rating: 0.147 A
-
Driver Type: Constant Current
-
Finish: Matte
-
Includes: Mounting and Wiring Hardware
-
Lamp Base: Integrated
-
Mounting Type: Surface
-
Recessed Can Diameter: 9 in
-
Trim Material: Aluminum
