Product Description

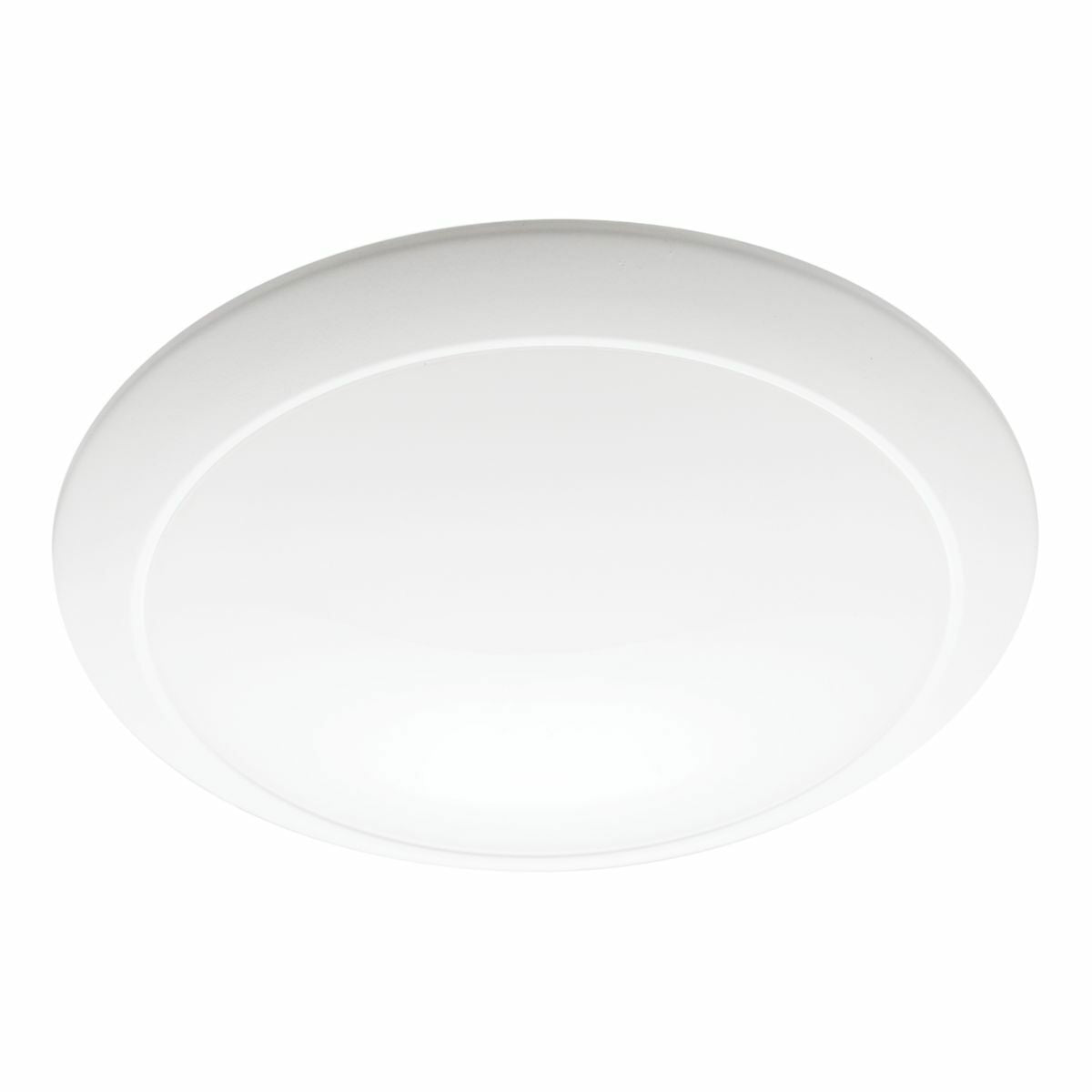

The Halo HLC9129301EWH is a slim profile, high-performance surface mount LED luminaire. Operating at 120V and 17.6W, it delivers 1230 lumens with a color temperature of 3000K and a CRI of 93. Designed for below-the-ceiling installation, it fits most 3-1/2 and 4 inch junction boxes. It is damp location listed and dimmable down to 10%.
- Features a removable low profile convex lens.
- Designed for surface mounting.
- Average life of 50000 hours.
Product Highlights
This Halo LED luminaire offers easy installation and dimming capability for various applications, including closets and walls.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: HLC9129301EWH
-
Country of Origin: China
Technical Specifications
-
Series: HLC9
-
Lamp Type: LED
-
Lumens: 1230 Lumens
-
Lens Type: Removable Low Profile Convex
-
Average Life: 50000 hr
-
Ballast Type: Dimmable
-
Light Output: 69.9 Lumens/W
-
Manufacturer: Cooper Lighting Solutions
-
Mounting Type: Surface
-
Housing Finish: Matte White
-
Voltage Rating: 120 V
-
Fixture Wattage: 17.6 W
-
Housing Material: Stamped Aluminum
-
Color Temperature: 3000 K
-
Lighting Technology: Back-Lit
-
Color Rendering Index (CRI): 93
-
Sub Brand: HLC9 LED 9" Round Surface-Mount Luminaire
-
Application: Lighting
-
Finish: Matte White, White Flange
-
Special Features: Low-profile lens surface-mount luminaire, Ceiling/wall mounting
-
Standard: Energy Star Certified;IECC Compliant;Title 24 Compliant;UL Certified - Damp Location;RoHS Compliant;AIR-TITE (TM) Certified ASTM E283;Damp Locations Listed;LM79/LM80 Compliant;EMI/RFI per FCC 47CFR Part 15 B;California Title 24;NEC;Title 20 Compliant
-
UPC: 080083884667
-
GTIN: 00080083884667
-
Item Type: HLC LED
-
Frequency Rating: 60 Hz
-
Environmental Conditions: Indoor, Damp Location
-
Dimmable: Yes
-
Construction: Stamped Aluminum
-
Shade Type: Acrylic Prismatic Convex Lens
-
Driver Type: LE and TE Phase Cut Dimming To 10%
-
Temperature Rating: -30 to 40 deg C
-
Aperture Size: 9 in
-
Color Accuracy: 90
-
Correlated Color Temp: 3,000 K
-
Voltage: 120 V
-
Diameter: 9 Inch
