Product Description

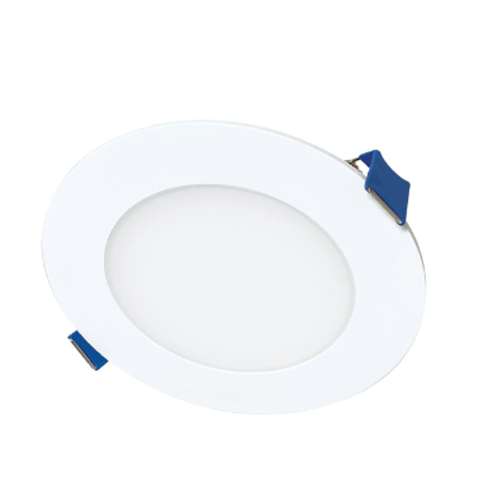

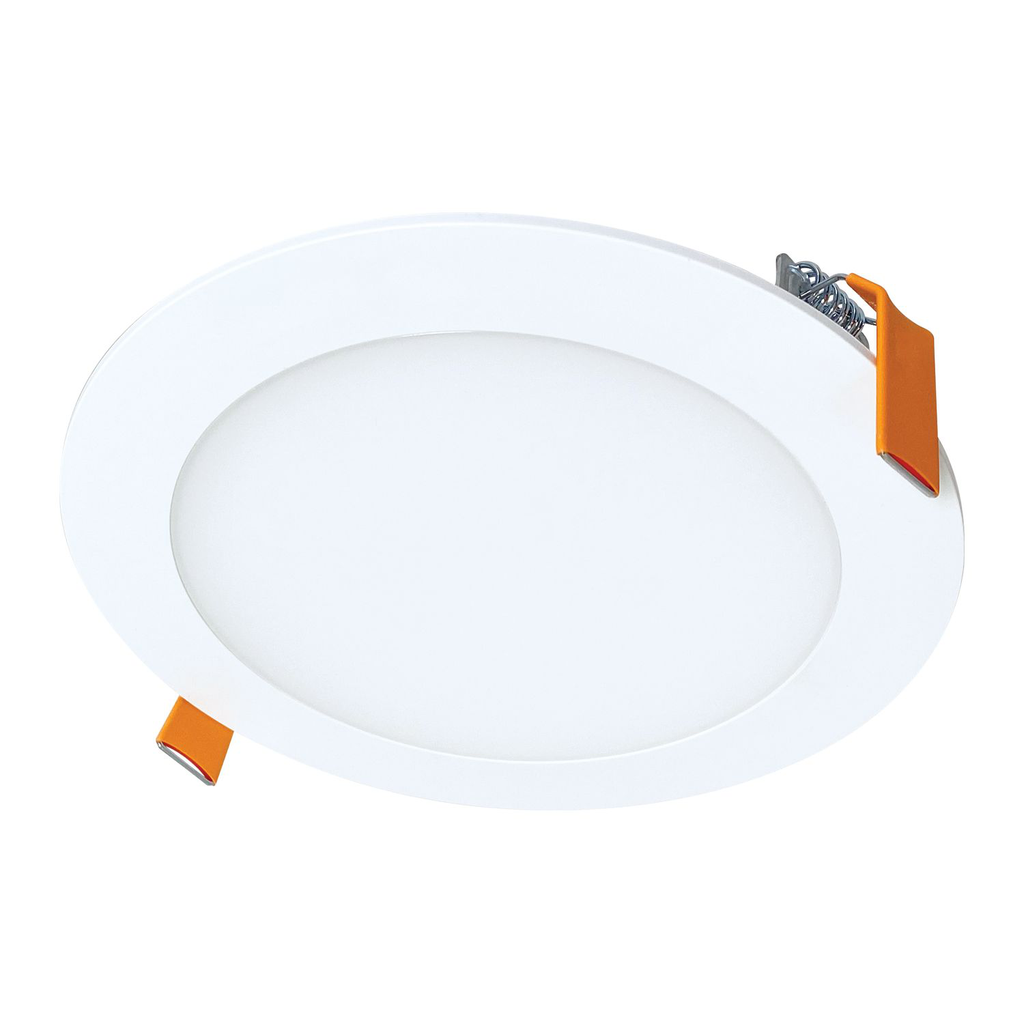

The HALO HLBPH6099FS1EMWR HLBPH6 6-Inch LED Direct Mount Downlight with plastic housing and remote driver delivers up to 1100 Lumens. This direct mount LED lens downlight operates at 120 VAC and 60 Hz. It features a selectable CCT of 2700K, 3000K, 4000K, and 5000K and is wet location listed for showers and protected ceilings.
- Direct mount design eliminates the need for a recessed housing or junction box.
- Delivers up to 1,100 lumens.
- Achieves L70 at 50,000 hours in IC and non-IC applications.
Product Highlights
This 6-inch LED downlight is ideal for new construction and renovation. It features selectable color temperature, smooth lens, and is air-tite and IC rated.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: HLBPH6099FS1EMWR
-
Country of Origin: China
Technical Specifications
-
Type: Direct Mount LED Lens Downlight
-
Lumens: 1100 Lumens
-
Series: HALO HLBPH6
-
Lamp Type: LED
-
Lens Type: Smooth Lens
-
Average Life: 50,000 Hours
-
Mounting Type: Direct
-
Housing Finish: Matte White
-
Voltage Rating: 120 V
-
Amperage Rating: 0.117 Amp
-
Fixture Wattage: 14.2 to 14.3 Watts
-
Housing Material: Plastic
-
Color Temperature: selectable 2700K, 3000K, 4000K, and 5000K
-
Color Rendering Index (CRI): 90+
-
Wattage: 14 W
-
Width: 6.69 in
-
Height: 6.89 Inch
-
Length: 2.047 Inch
-
Correlated Color Temp: 5000 K
-
Lighting Technology: seleCCTable®
-
Light Output: 72.5 Lumens/W
-
Ceiling Opening: 6 in
-
Light Color: Bright White Light
-
Ballast: 5% Cut LE/TE Phase Dimming
-
Enclosure: IP44
-
Mounting: Ceiling/Surface Mounting
