Product Description

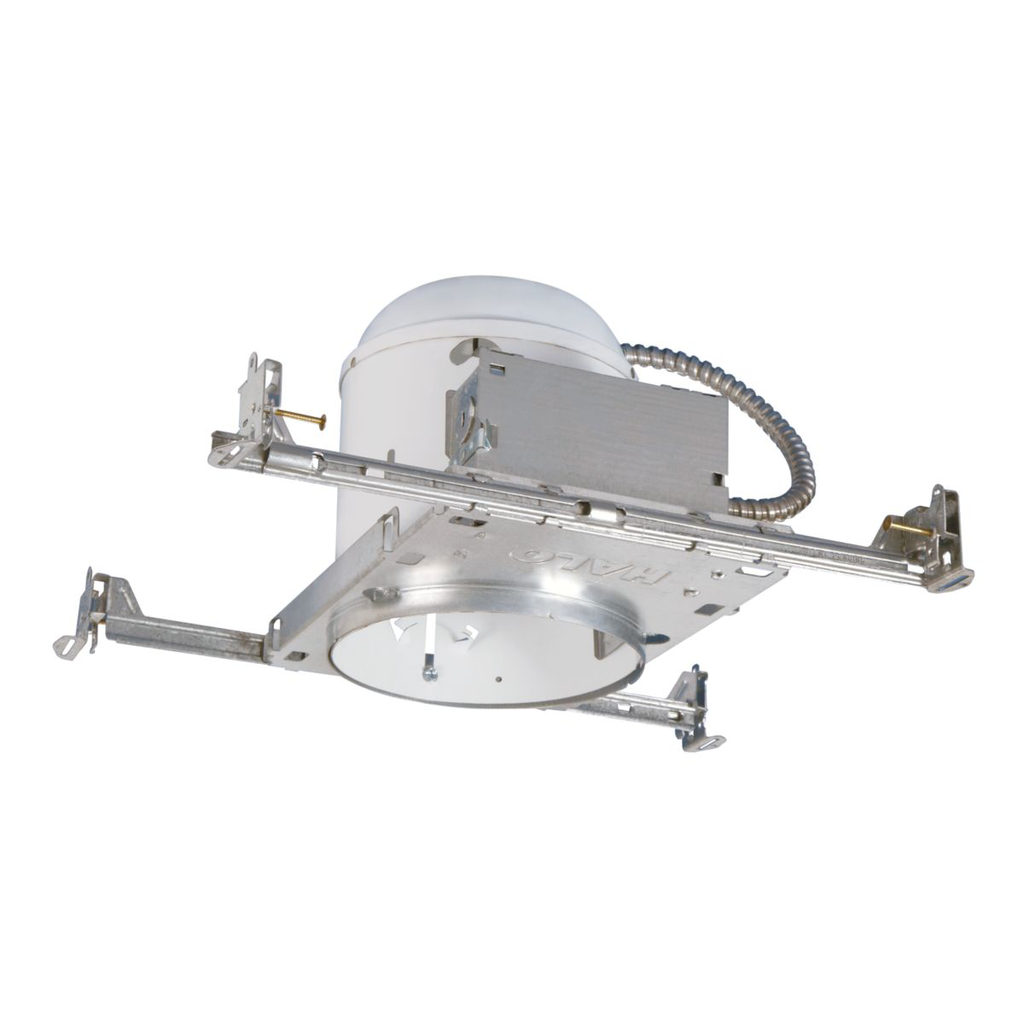

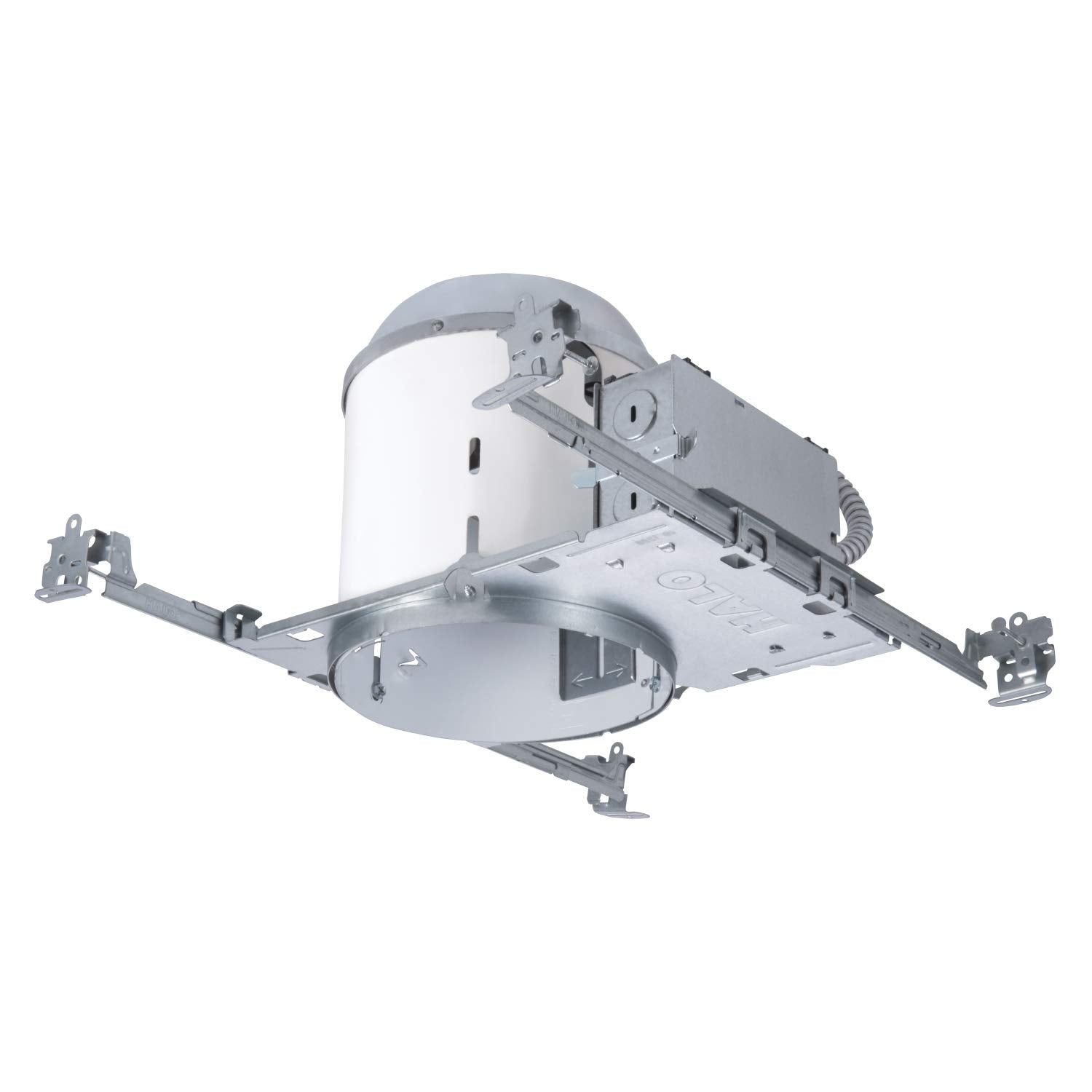

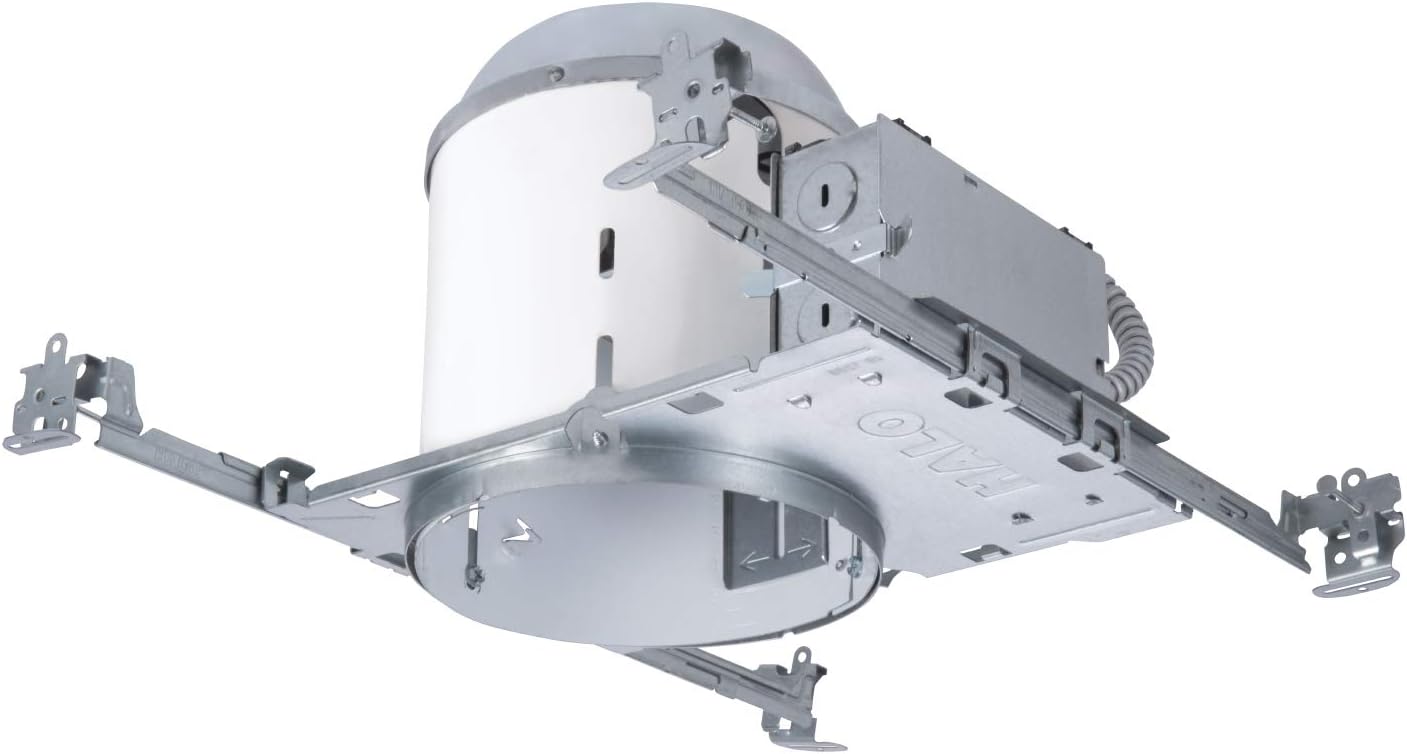

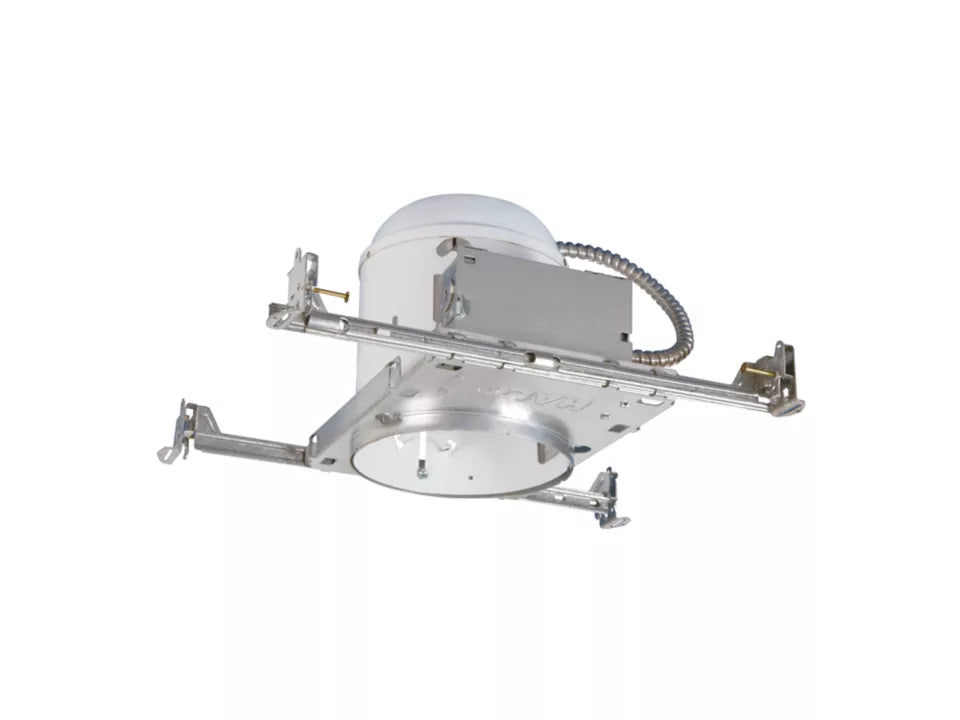

The HALO H7T is a 6-inch housing designed for non-IC (Insulation Contact) applications with a 120V line voltage, suitable for recessed lighting installations. Designed for use with compatible Halo trim modules, the H7T is for use in non-insulated ceilings. If ceiling insulation is present, it must be kept 3 inches from all sides of housing.
- Features Got Nail!™ bar hangers
- Includes Pass-N-Thru™ tool-less shortening of bar hangers
- Has Slide-N-Side™ wire traps
Product Highlights
The H7T recessed housing is the industry standard for commercial and residential applications. A wide variety of trims are available.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: H7T
-
Country of Origin: Mexico
Technical Specifications
-
Color: Silver
-
Style: Thermal
-
Finish: Nickel
-
Voltage: 120 Volts
-
Material: Metal
-
Certification: CSA/IP/UL
-
Light Source Type: LED
-
Installation Method: Screw In
-
Type: 6" H7 Housing
-
Aperture Size: 6 in
-
Mounting Type: Recessed
-
Number of Lamps: 1
-
Ballast Type: N/A
-
Applications: Lighting
-
Sub Brand: H7T Series
-

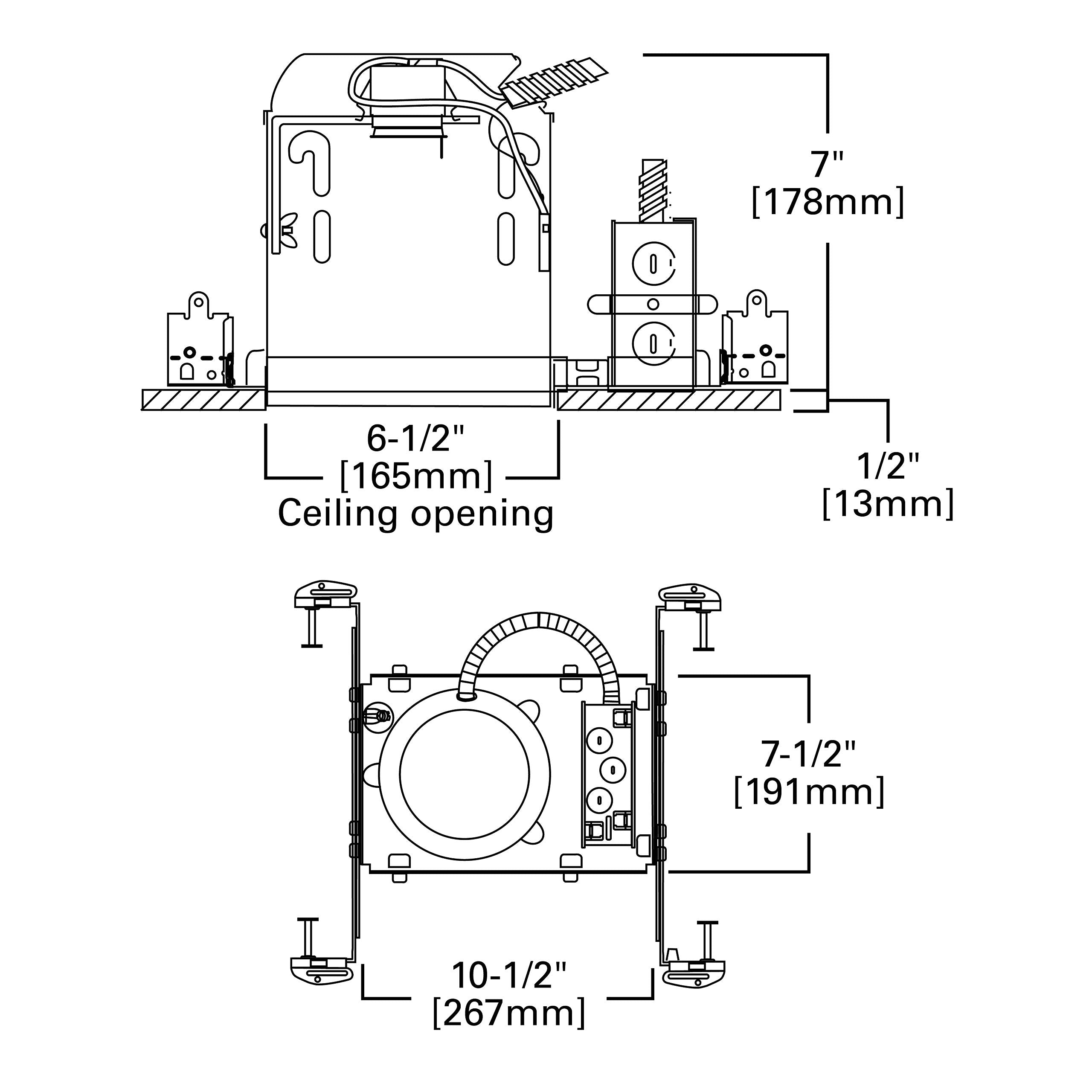

Width: 12.5 in
-
Height: 7.5 in
-
Lamp Type: Incandescent
-
Diameter: 6 in
-
Insulation Type: Non-IC
-
Housing Material: Steel
-
Lamp Wattage: 150 W
-
Ceiling Opening: 6-1/2 in
-
Voltage Rating: 120 VAC
-
Suitable For Use With: Halo Recessed Downlight Fixture
-
Length: 14.5 in
-
For Use In: 2" x 8" joist construction
-
Series: H7
-
Junction Box Type: (7) 1/2 Inch Conduit Knockout with Pryout Slot, (4) Romex Pryout
-
Application: Damp/Wet Location, Commercial, Residential
-
Approval: UL, CUL, CSA
-
Lamp Mounting Position: Vertical
-
Nominal Aperture Size: 6 Inch
-
Aperture Shape: Round
-
Ceiling Type: Non-Insulated
