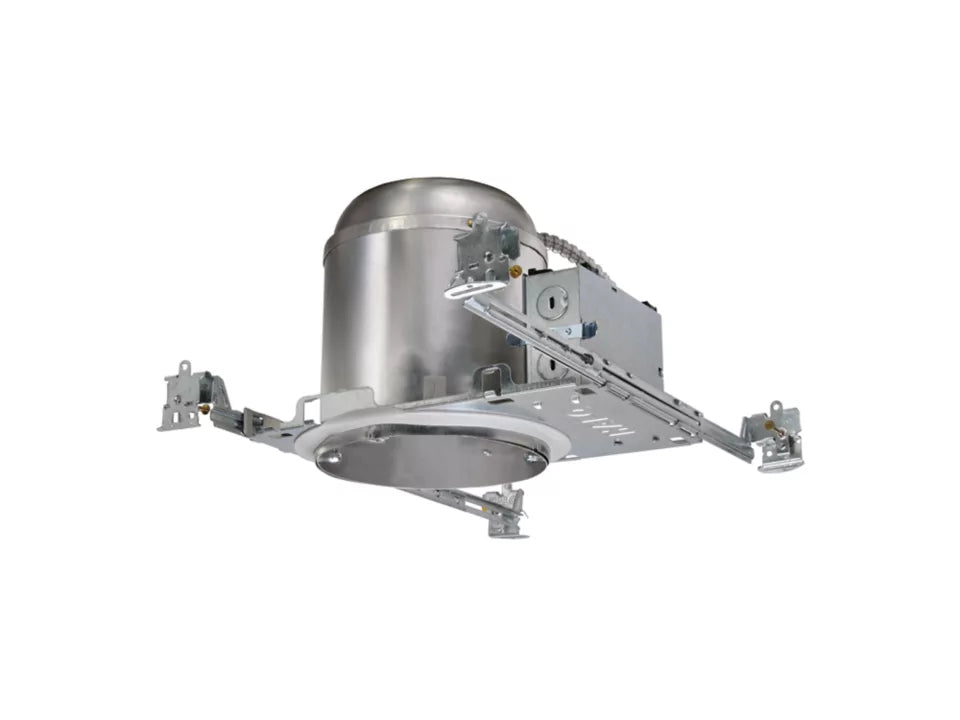

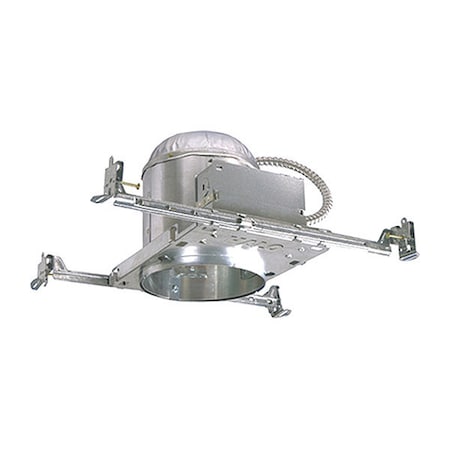

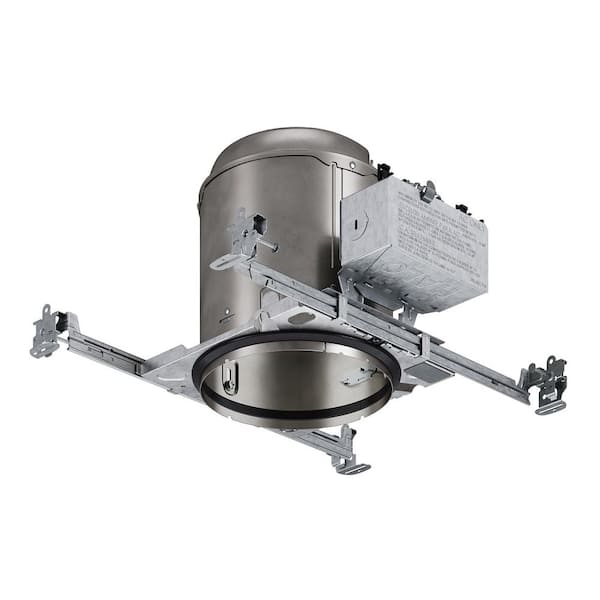

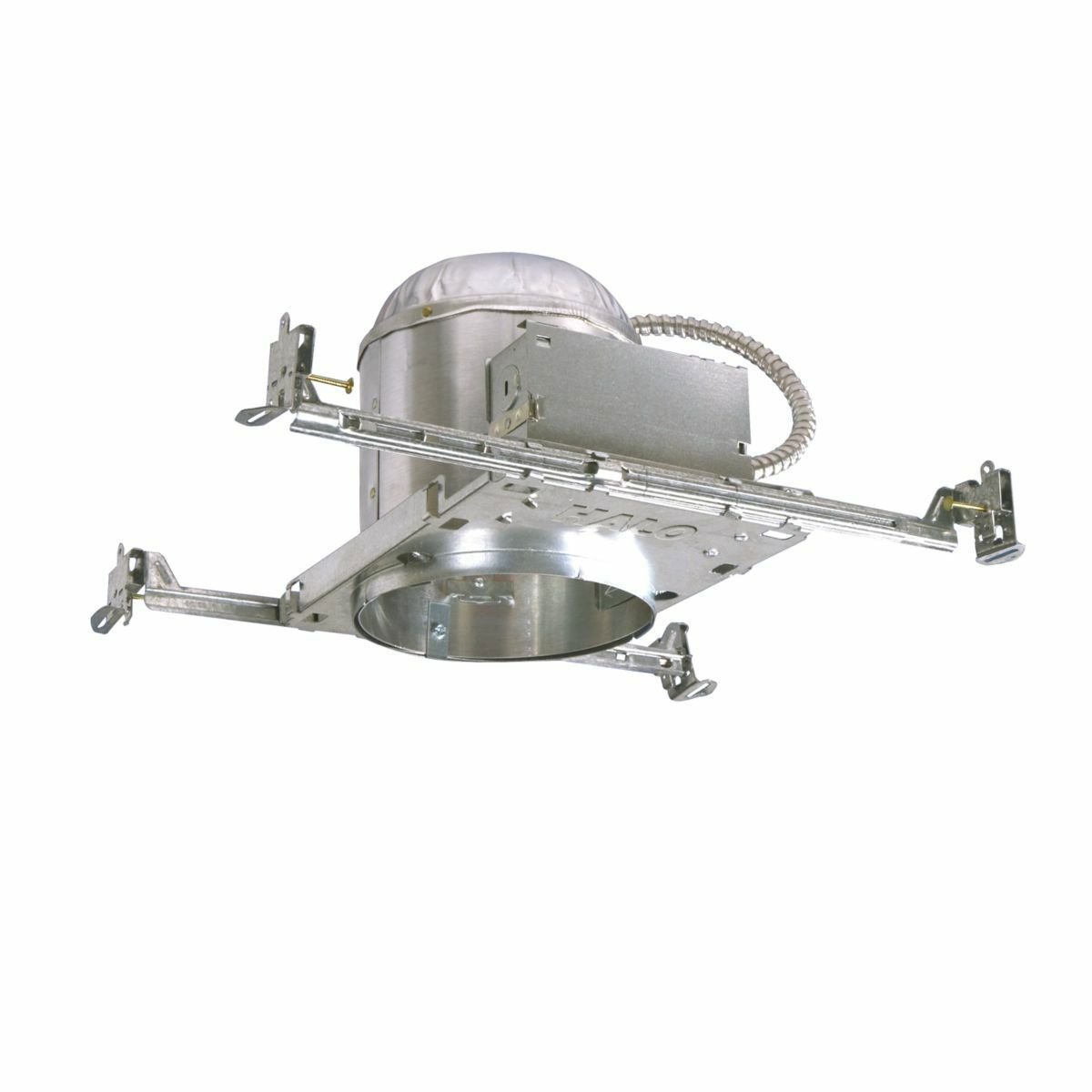

Halo H7ICATNB 6 inches Housing IC Air-Tite No Socket Bracket 120V Line Voltage Incandescent

Product Description

The HALO H7ICATNB 6" Housing is an IC Air-Tite new construction housing designed without a socket bracket, saving installation time. It is a 120V line voltage housing suitable for incandescent lamps. The housing can be in direct contact with insulation and meets restricted airflow requirements. It features Got Nail! bar hangers and Slide-N-Side wire traps.

• IC Air-Tite
• No socket bracket
• 120V line voltage housing

Product Highlights

6" IC Air-Tite new construction housing with no socket bracket and 120V line voltage.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: H7ICATNB
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: H7ICATNB
• Manufacturer: Cooper Lighting Solutions
• Brand: Halo
• Sub Brand: H7ICATNB 6" AIR-TITE™ New Construction Housing
• Country of Origin: Mexico
• Made in USA: No
• Application: Lighting
• Special Features: No socket bracket, 120V line voltage housing
• Standard: UL/cUL Listed 1598 Luminaire;UL/cUL Listed for Insulation Contact;cULus Listed - Damp Location;cULus Listed - Wet Location;RoHS Compliant;AIR-TITE (TM) Certified ASTM E283;UL/cUL Listed for Feed Through
• UPC: 662400612032
• GTIN: 00662400612032
• Item Type: 6" H7 Housing
• Voltage Rating: 120V
• Air Rating: Airtight
• Lamp Type: A19/BR30/R30/PAR30/PAR38
• Lamp Wattage: 60/65/75 W
• Nominal Aperture Size: 6 Inch
• Aperture Shape: Round
• Ceiling Type: Insulated
• Ceiling Opening Size: 6-1/2 Inch
• Installation: New Construction
• Housing Material: Aluminum
• Junction Box Type: (7) 1/2 Inch Conduit Knockout with Pryout Slot
• Approval: UL, CUL
• Socket Type: E26
• Trade Size: 6IN
• Diameter: 6 IN
• Mounting Type: Ceiling
• Number Of Lamps: 1
• Adjustable Size: Yes
• Airtight Construction: Yes
• Bulb Type Compatibility: LED, E26 base
• Dimmable: Yes
• IC Rating: Insulation Contact (IC) Rating
• Installation Features: Tool-less bar hangers, Slide-N-Side wire traps, quick connect wiring
• Construction Material: Aluminum, die-formed housing and plaster frame
• Trim Size: 6 in.
• Housing Type: New Construction Housing
• Light Direction: Down Lighting
• Material: Aluminum
• Number of Light Source(s): 1
• Power Source: Hardwired
• Voltage: 120
• Voltage Type: Line Voltage (110-120V)
• Approved for Commercial Use: Yes
• Certifications: UL
• Collection: H7
• Energy Star: No
• Fire Rated: No
• Location Rating: Wet Location
