Product Description

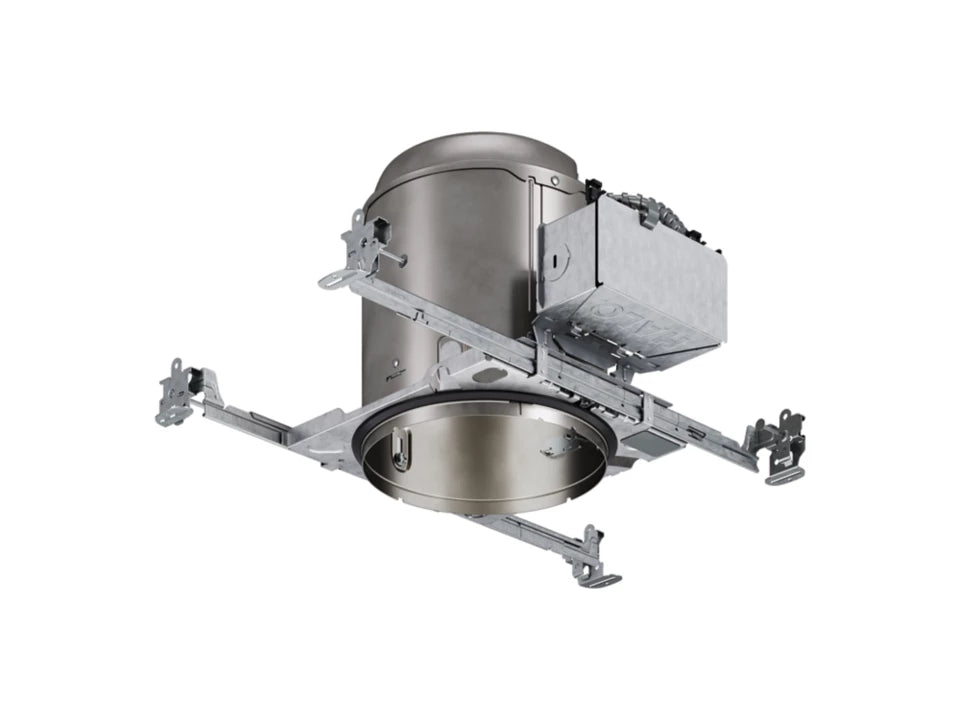

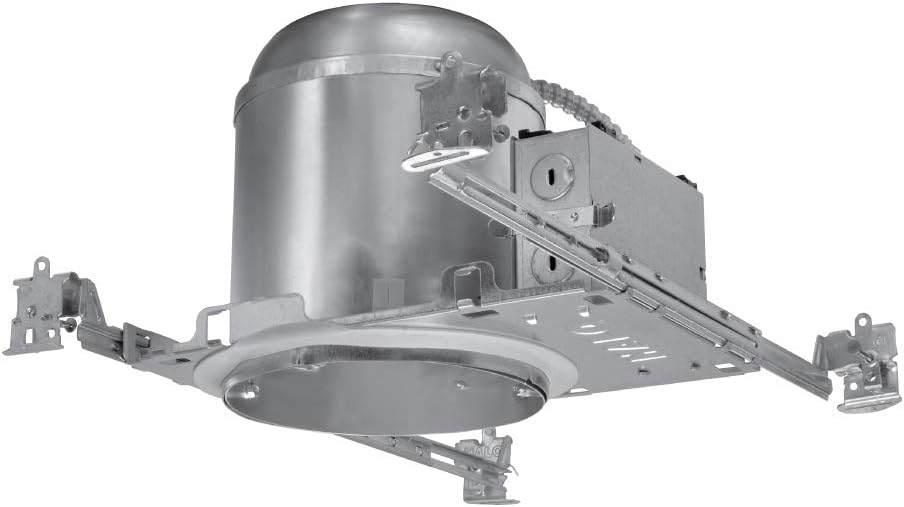

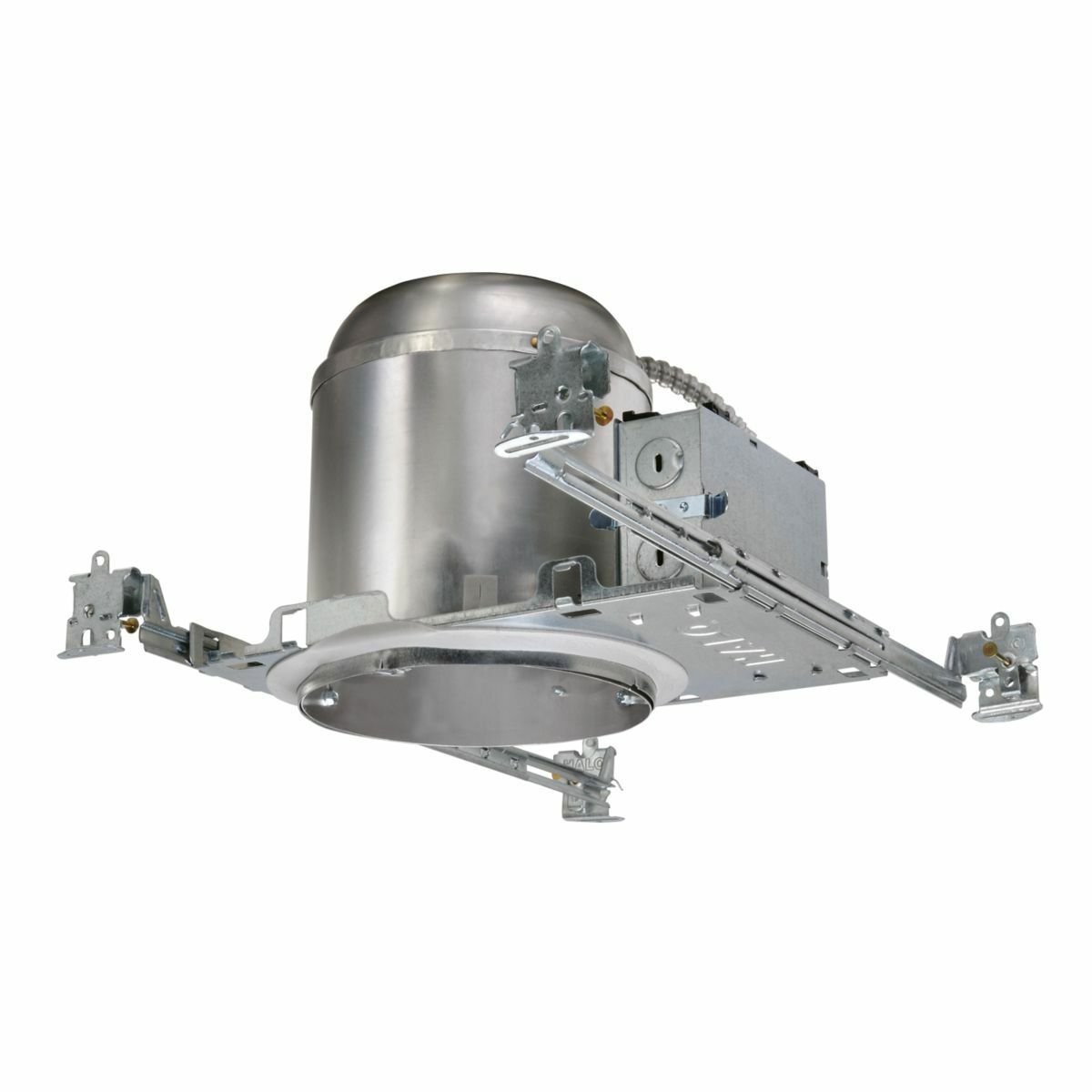

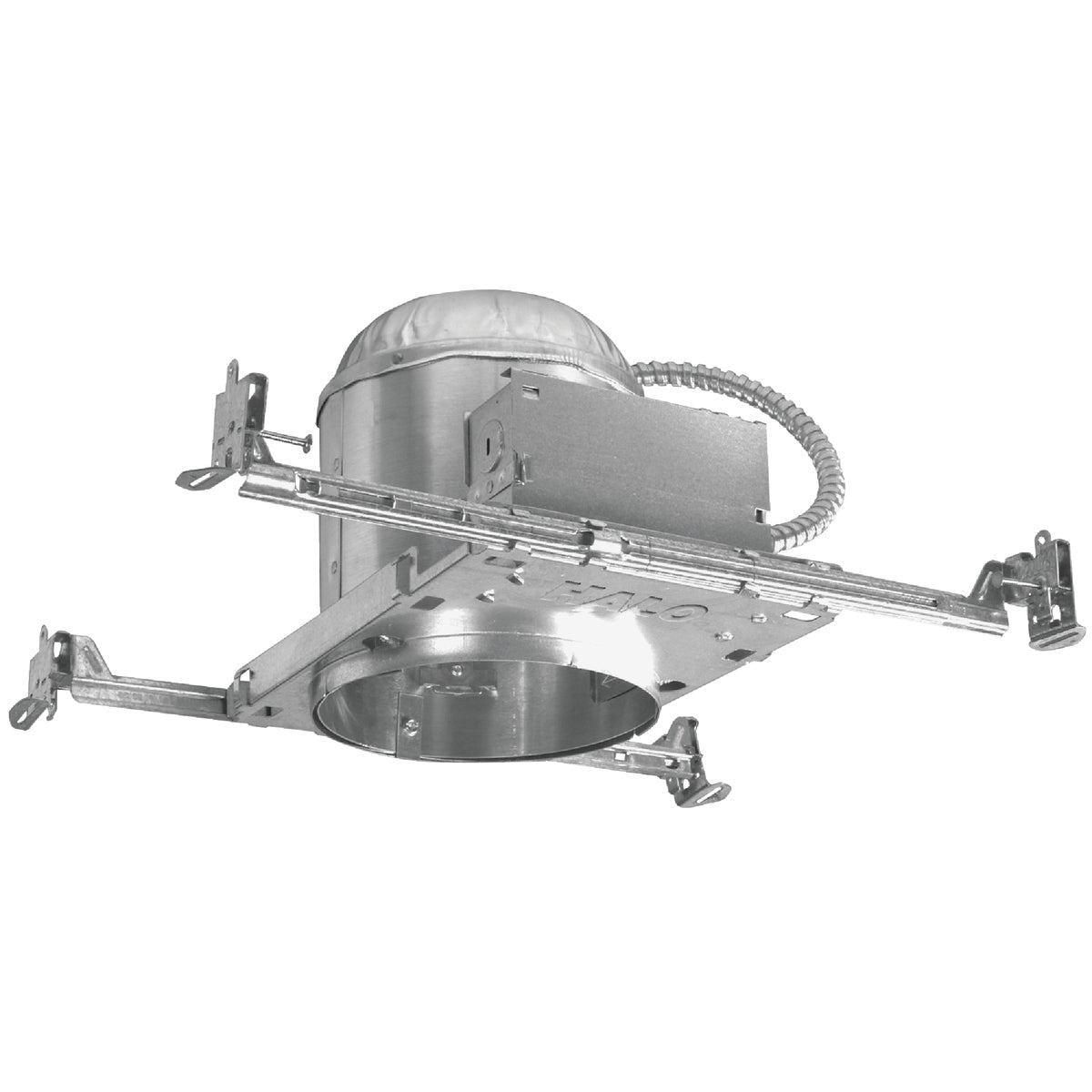

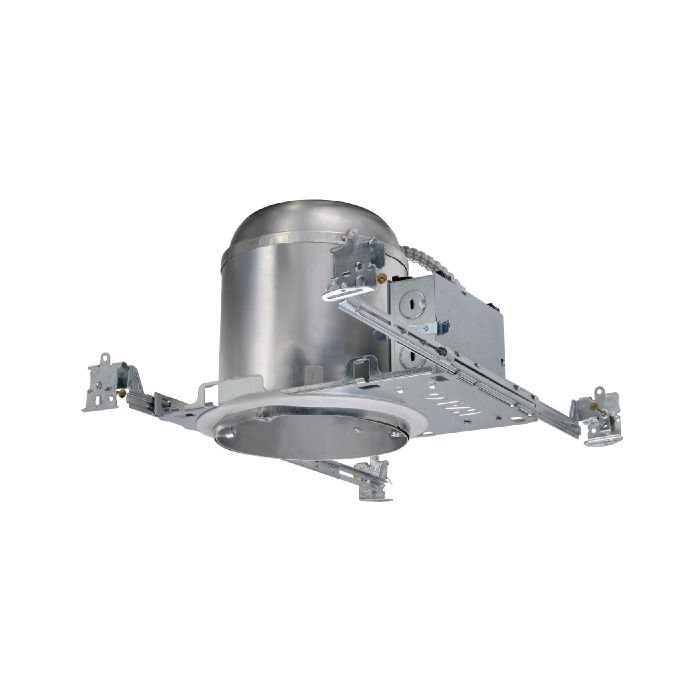

The HALO H7ICAT 6 In. New Construction Air-Tight IC Rated Recessed Light Fixture features single wall aluminum construction. Designed for insulated ceilings, this recessed housing has a 6-1/2 inch ceiling opening. It is suitable for damp locations and uses a 120V incandescent lamp. The housing is cULus listed.
- Air-Tight IC Rated
- New Construction
- Vertical Lamp Mounting
Product Highlights
The Halo H7ICAT is an air-tight, IC rated recessed light fixture for new construction. It features vertical lamp mounting and is suitable for insulated ceilings and damp locations.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: H7ICAT
-
Country of Origin: Mexico
Technical Specifications
-
MPN: H7ICAT
-
Brand: Halo
-
Manufacturer: Cooper Lighting
-
UOM: Each
-
Application: Damp Location
-
Aperture Shape: Round
-
Ceiling Opening Size: 6-1/2 inch
-
Housing Type: Recessed
-
Lamp Mounting: Vertical
-
Junction Box: (7) 1/2 Inch Pryout Knockout
-
Housing: Plaster Frame
-
Height: 7-1/2 Inch
-
Feature: Air Tight
-
Ceiling: Insulated
-
Voltage: 120-Volts
-
Mountable: Insulated ceiling mountable
-
Construction: Single wall aluminum
-
Housing Size: 6 in
-
Listing: UL/cUL listed for damp location, feed through, and direct contact with insulation and combustible material
-
Voltage Rating: 120V
-
Lamp Type: Incandescent
-
Lamp Wattage: 90 W
-
Mounting Type: Ceiling
-
Insulation Type: IC
-
Number of Lamps: 1
-
Housing Material: Aluminum
-
Suitable For Use With: Halo Suspended Ceiling T-Grid System, 376P, 376W, 378, 420, 478, 74 and 76 Trim
-
Width: 13.95 in
-
Diameter: 6 in
-
Series: H7 Series
-
Cutout Size: 6-1/2 Inch
-
Item Name: New Construction Recessed Housing
-
Standards: cULus 1598, RoHS Compliant
-
Component Type: Housing
-
Trim Size: 6 Inch
-
Lamp Included: No
-
Ceiling Type: Insulated, Air-Tight
-
Shape: Round
-
Mounting: Recessed
-
Dimmable: No
-
Type: 6" H7 Housing
-
Finish: Raw Finish
-
Wattage: 90 Watt
-
Applications: Lighting
-
Ballast Type: N/A
-
Country of Origin: Mexico
-
Sub Brand: H7ICAT 6" AIR-TITE?? New Construction Housing
-
Product UPC: 08008360962
-
12-Digit UPC: 080083609628
-
ARRA Compliant: Yes
-
AIR-TITE: Yes
-
Standard: cULus Listed
-
Description: 6” New Construction Housing, Traditional E26 Socket-Based, IC Rated
-
Aperture: 6 Inch
-
Range of Motion: N/A
-
Case Quantity: 6
-
Pallet Quantity: 144
-
ARRA: Yes
