Product Description

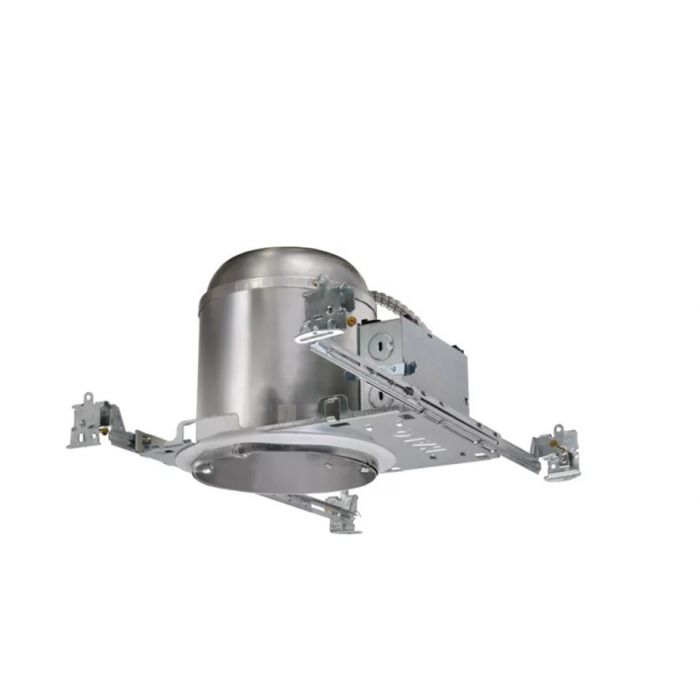

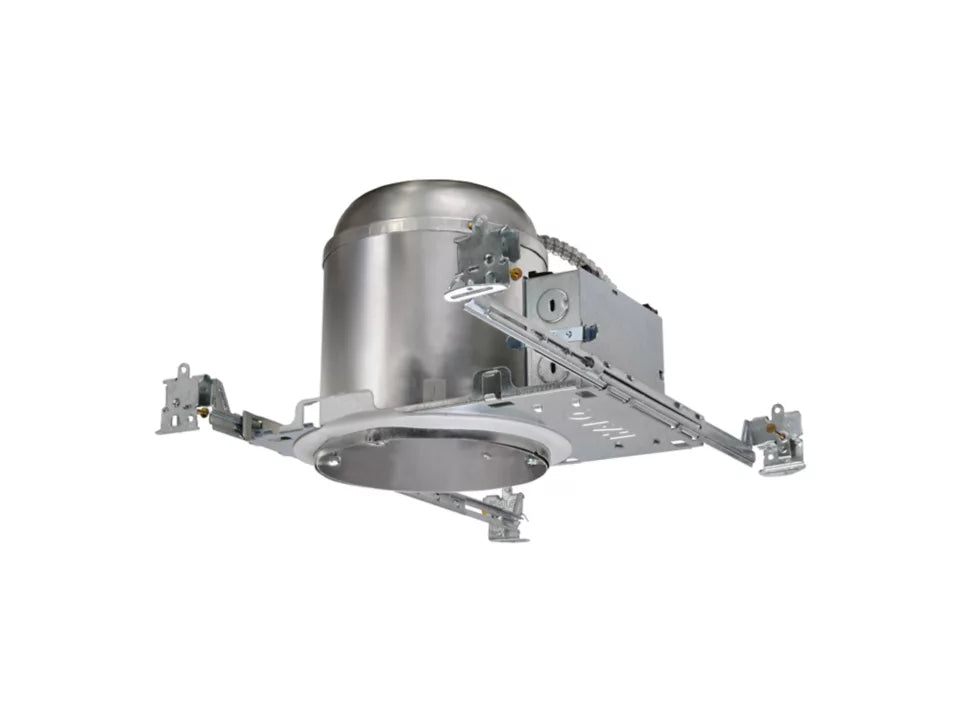

The HALO H750ICATD010 is a 6 inch LED housing designed for new construction with IC rating and air-tite construction. Compatible with ML56 0-10V series, this housing operates on 120-277V and supports 0-10V dimming. The H750ICAT housing accepts a wide variety of trims allowing for different lighting effects. It is suitable for installations where the housing will be in direct contact with insulation.
- For use with ML56 0-10V series
- 120-277V Input
- 0-10V dimming compatibility
Product Highlights
IC rated and air-tite, the HALO H750ICATD010 LED housing is ideal for residential and light commercial LED applications.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: H750ICATD010
Technical Specifications
-
Type: New Construction ICAT, Dimming Compatible
-
Series: H750ICATD010
-
Diameter: 6 Inch
-
Lamp Type: LED
-
Manufacturer: Cooper Lighting Solutions
-
Mounting Type: Recessed
-
Enclosure Type: IC Rated, Air-Tite
-
Voltage Rating: 120/277 V
-
Housing Material: Aluminum
-
Suitable For Use With: ML56 0-10V Series
-
Dimming Compatibility: 0-10V dimming compatible
-
Bar Hangers: Got Nail!™ bar hangers
-
Bar Hanger Shortening: Pass-N-Thru™ tool-less shortening of bar hangers
-
Wire Traps: Slide-N-Side™ wire traps
-
Wiring Connectors: Quick Connect wiring connectors included in junction box
-
IC Rating: IC rated
-
Air-Tite: Air-Tite per ASTM E283
-
Housing: Die-formed housing and plaster frame
-
Housing Access: Housing may be removed from plaster frame for junction box access
-
Module Compatibility: Compatible with Halo ML56 0-10V series
-
Material: Aluminum
-
Light Source Type: LED
-
Specification Met: Energy Star
