Product Description

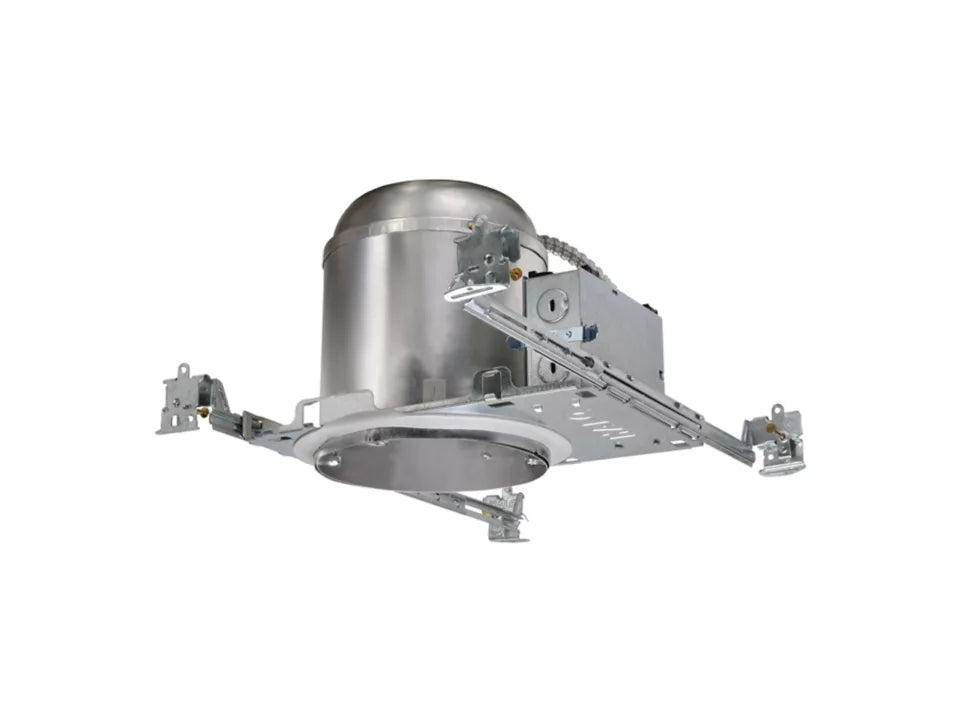

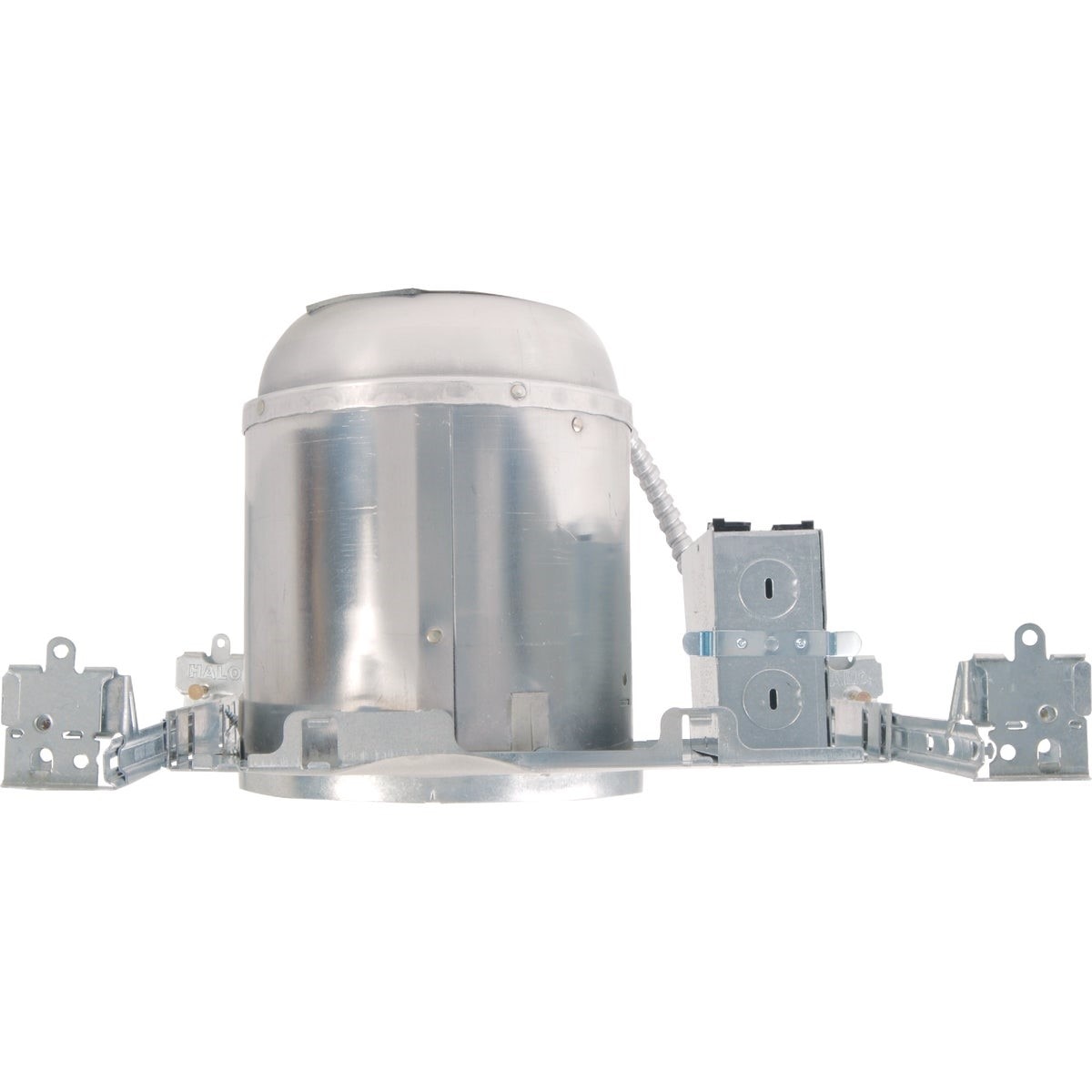

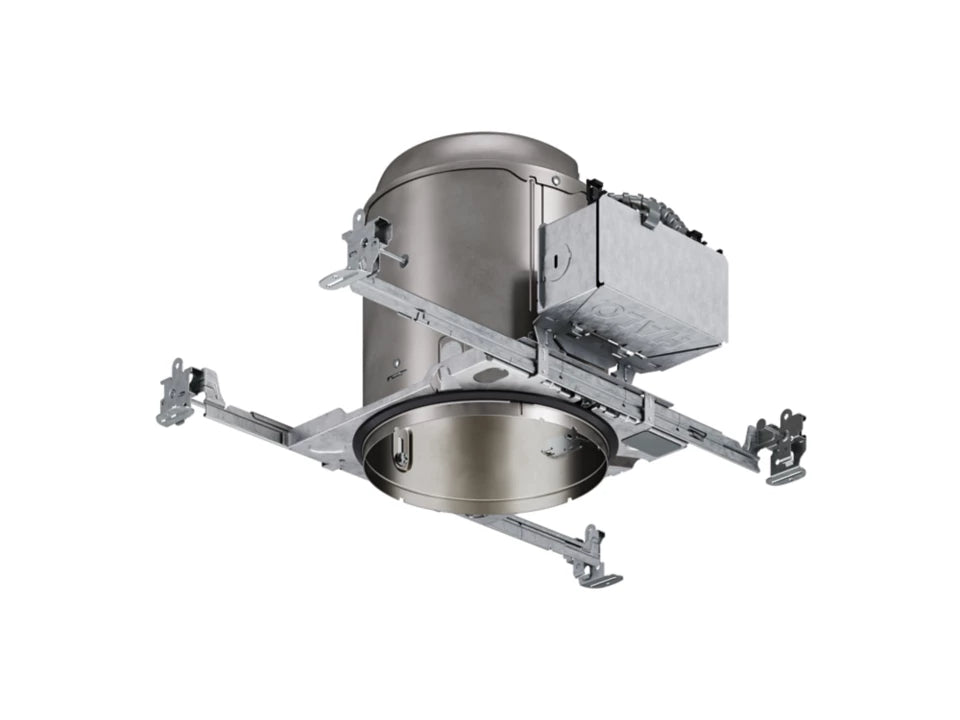

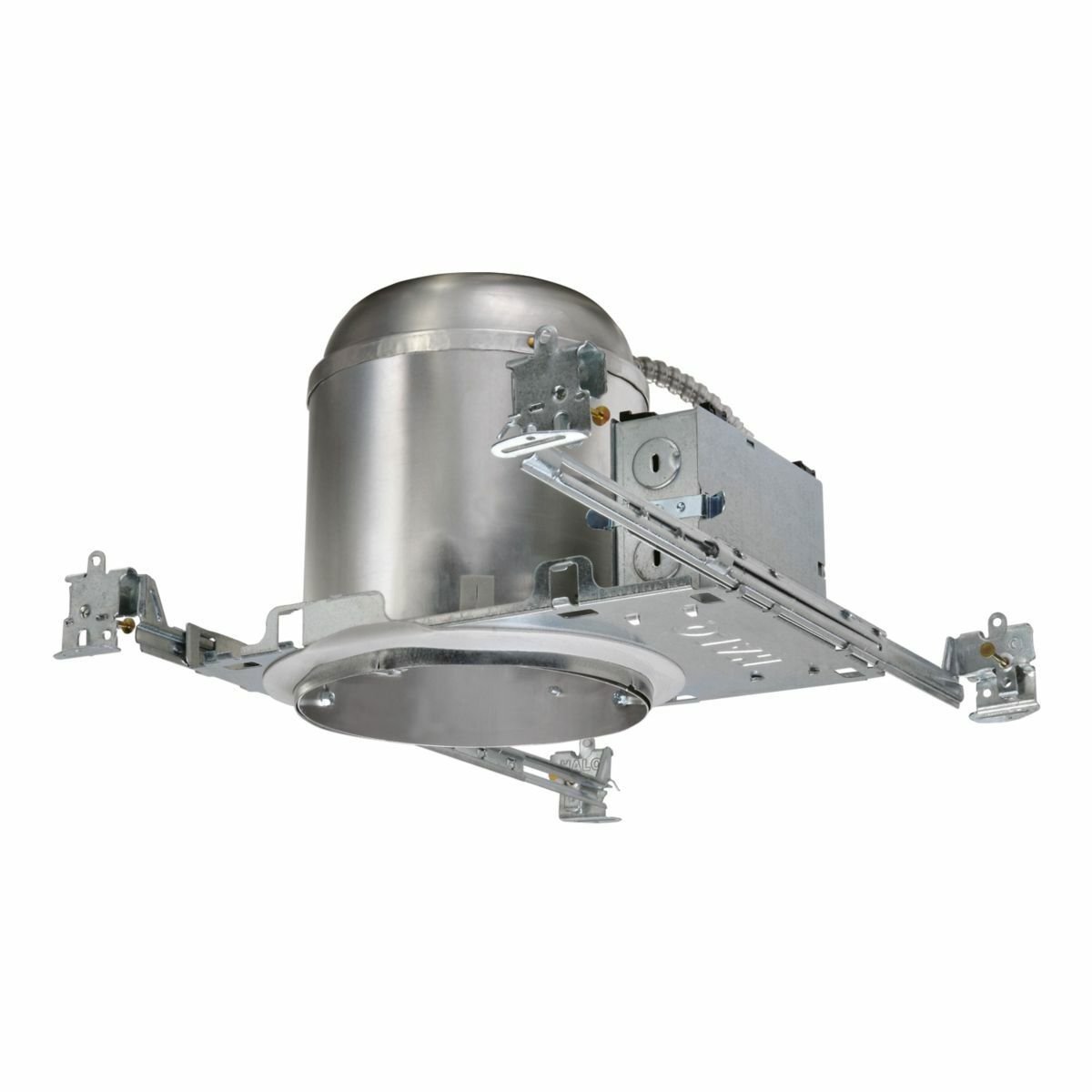

The Halo H750ICAT is an air-tite 6 inch new construction IC rated recessed light fixture. Designed for insulated ceilings, it can be in direct contact with insulation. This housing prevents airflow between attic and living areas, saving on heating and air conditioning costs. It is compatible with Halo 600 and 900 series LED modules.
- Air-Tite
- New Construction
- IC Rated
Product Highlights
The Halo H750ICAT is ideal for new construction projects. It's air-tite design and IC rating make it a versatile choice for any home.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: H750ICAT
-
Country of Origin: MX
Technical Specifications
-
MPN: H750ICAT
-
Manufacturer: Cooper Lighting
-
Brand: Halo
-
UOM: Each
-
Country: MX
-
Voltage: 120 Volts
-
Material: Aluminum
-
Room Type: Attic
-
Unit Count: 1.00 Count
-
Fixture Type: Non Removable
-
Power Source: Corded Electric
-
Mounting Type: Ceiling Mount
-
Installation Type: Recessed
-
Light Source Type: LED
-
Light fixture form: Ceiling
-
Size: 6 in
-
Type: LED Recessed Can Housing
-
Voltage Rating: 120 V
-
Dimmable: No
-
Cutout Size: 6-1/2 Inch
-
Construction: Aluminum
-
Item Name: LED Housing
-
Standards: UL Listed, CSA Certified
-
Component Type: Housing
-
Trim Size: 6 Inch
-
Lamp Included: Yes
-
Ceiling Type: Insulated, Air-Tight
-
Shape: Round
-
Manufacturer Part Number: H750ICAT
-
Manufacturer Name: Cooper Lighting
-
Depth: 10-1/2 in
-
Series: H7 Series
-
Height: 7-1/2 in
-
Lamp Wattage: 20 W
-
Ceiling Opening: 6-1/2 in
-
Insulation Type: IC
-
Number of Lamps: 1
-
Housing Material: Aluminum
-
Suitable For Use With: Halo 600/900 Series LED Module
-
Special Features: Use with HALO 6" RL56, RA56 and ML56 600, 900, 1200 series modules
-
Standard: UL Listed;Airtite
-
Item Type: 6" LED Housing
-
Wattage: 20 W
-
Standard & Approvals: UL, cUL Listed, CSA Certified, ASTM E283, California Title 24, IECC, RoHS Compliant
-
Application: For damp locations
-
Includes: Quick Connect™ Wiring Connectors
-
Features & Benefits: Got-Nail™ bar hangers
Pass-N-Thru™ tool-less shortening of bar hangers
Slide-N-Side™ wire traps
Die-formed housing and plaster frame
Housing may be removed from plaster frame for junction box access
-
Use with: HALO 6" RL56, RA56 and ML56 600, 900, 1200 series modules
-
Insulated Ceiling (IC) rated: to be in direct contact with insulation
-
AIR-TITE™: reduces airflow between unconditioned and conditioned spaces
-
Rated for: 15W
-
Pack Size: 1
-
Nominal Size (in.): 6 in
-
Recessed Size: 6"
-
Family: New Construction Housings (Next Gen)
-
Description: 6" IC, LED, Air-Tite, New Construction Housing, with push-in connectors, 120V, LED Orange Connector Socket Type.
-
Aperture: 6 Inch
-
Mounting: Recessed
-
Light Technology: LED
