Product Description

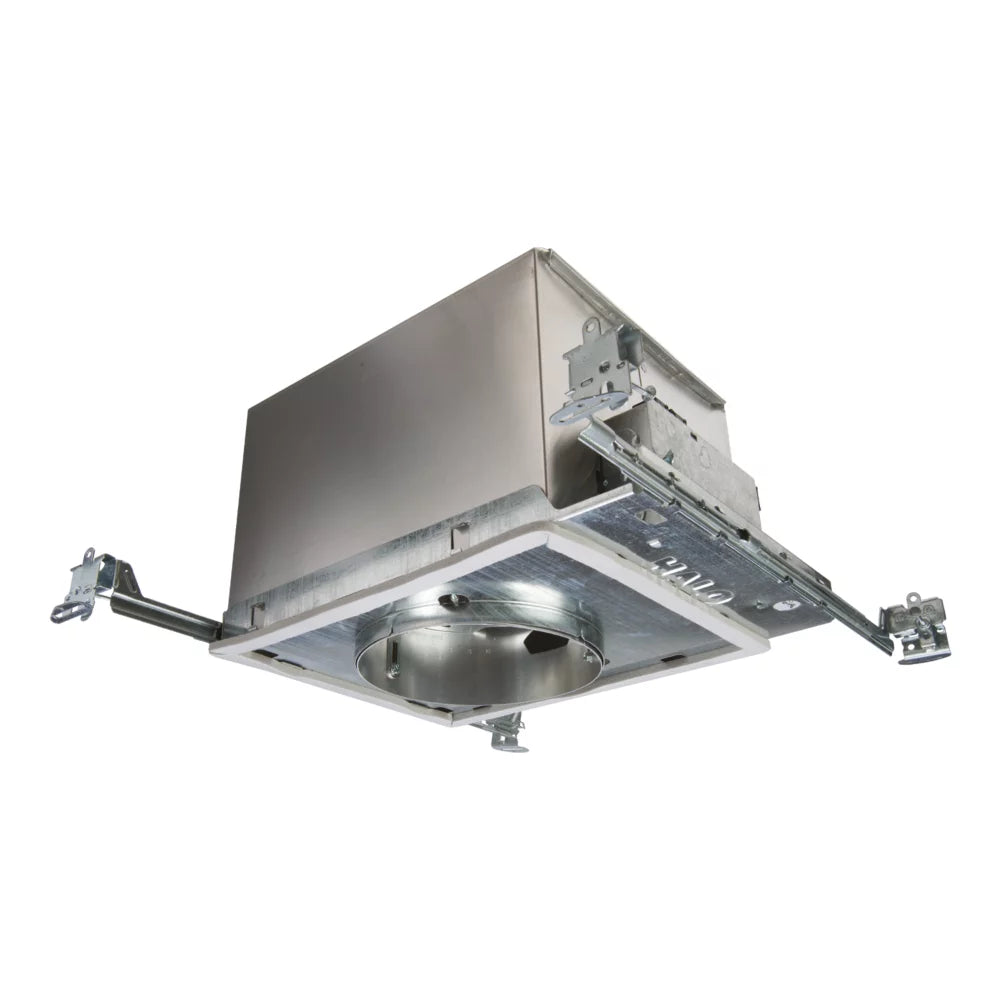

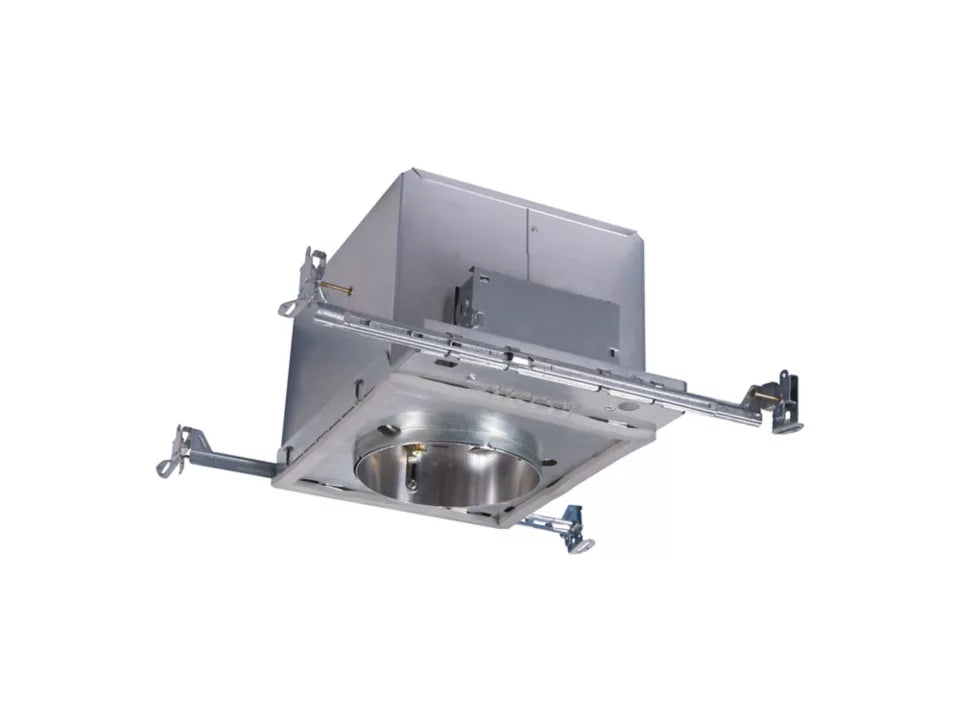

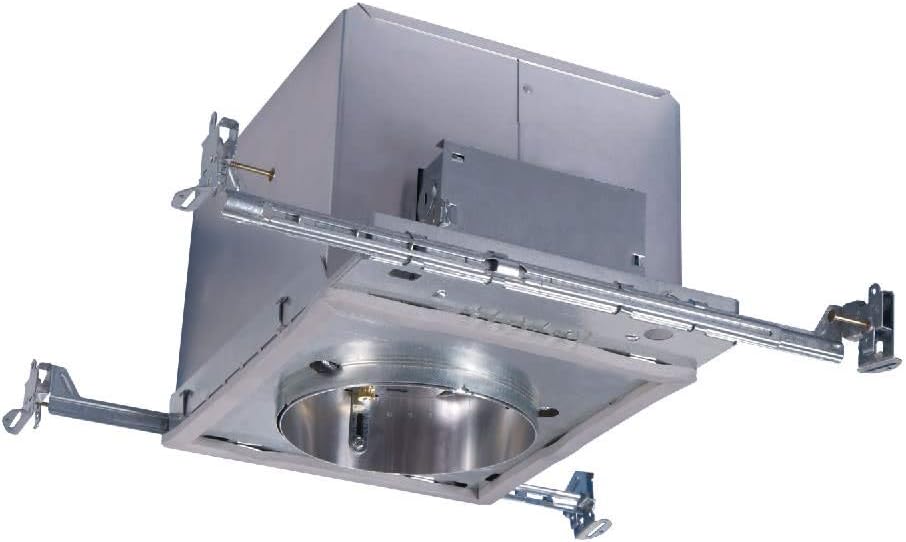

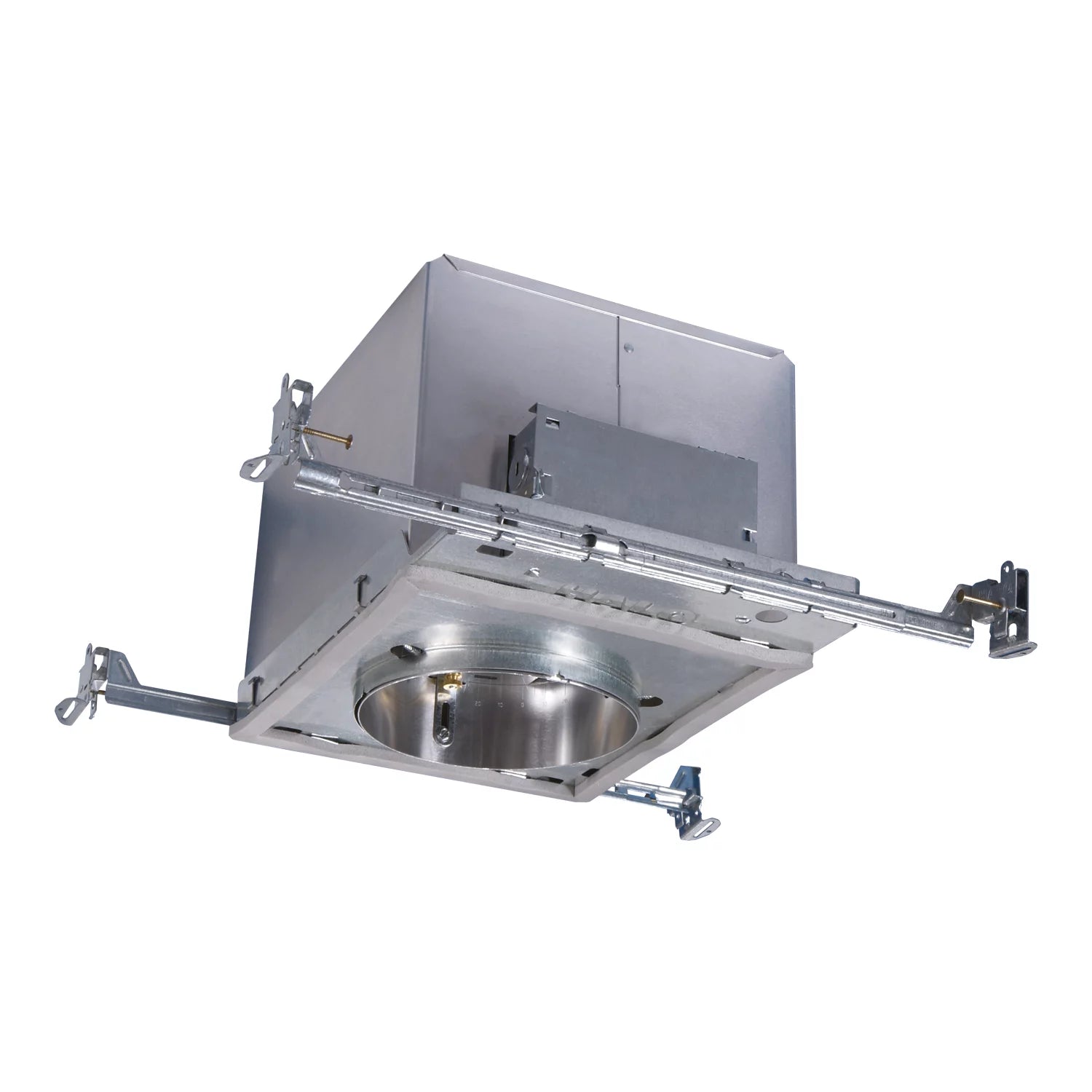

The HALO H645IC IC Air-Tight 6 Inch Universal Slope Ceiling Housing is designed for sloped ceiling installations with pitches from 2/12 to 12/12. The socket aiming mechanism allows the lamp to be aimed straight down. This housing is AIR-TITE gasketed to limit airflow. It uses a 120V line voltage and is suitable for use with Halo recessed downlight fixtures.
- Designed for sloped ceiling installations for ceilings from 2/12 to 12/12 pitch
- AIR-TITE housing designed to prevent airflow between living spaces and unconditioned areas
- Quick Connect wiring connectors included in junction box
Product Highlights
The Halo H645IC is an air-tight, IC-rated housing designed for insulated and sloped ceilings, ensuring energy efficiency and proper lighting alignment.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: H645IC
-
Country of Origin: Mexico
Technical Specifications
-
Shape: round
-
Voltage: 120 VAC
-
Material: Aluminium
-
Light Type: Incandescent, LED
-
Unit Count: 1.0 Count
-
Type of Bulb: Incandescent
-
Bulb Shape Size: PAR30L
-
Controller Type: Push Button
-
Batteries Included?: No
-
Batteries Required?: No
-
Specific Uses For Product: Lamp
-
Style: Traditional
-
Finish: Steel
-
Finish Type: Steel
-
Power Source: AC
-
Light Source Type: LED
-
Installation Method: Recessed
-
Type: 6" Slope Ceiling Housing
-
Amperage: 0.625 at (120V)
-
Bulb Shape: BR30/PAR30L/R30
-
Applications: Lighting
-
Aperture Size: 6 in
-
Mounting Type: Recessed
-
Number of Lamps: 1
-
Voltage Rating: 120 VAC
-
Manufacturer: Cooper Lighting Solutions
-
Brand: Halo
-
Diameter: 6 in
-
Insulation Type: IC
-
Housing Material: Aluminum
-
Suitable For Use With: Halo Recessed Downlight Fixture
-
Lamp Type/Designation: BR30/PAR30/PAR30L Halogen
-
Dimmable: No
-
Cutout Size: 6-1/2 Inch
-
Construction: Single Wall Aluminum
-
Item Name: Universal Slope Ceiling Housing
-
Standards: UL Listed, CSA Certified
-
Component Type: Housing
-
Trim Size: 6 Inch
-
Lamp Included: No
-
Ceiling Type: Insulated, Air-Tight
-
Sub Brand: H645IC Series
-
Catalog Number: H645IC
-
Application: Lighting
-
Special Features: Got Nail!™ bar hangers
-
Standard: UL Listed - Damp Location;CSA Certified
-
AIR-TITE™: Yes
-
Thermally protected: Yes
-
Housing and plaster frame: Die-formed
-
Socket aiming: For ceilings from 2/12 to 12/12 pitch
-
Slope indicator: Provides quick and consistent lamp settings
-
Maximum Compatible Light Source Wattage: 60 Watts
-
Ceiling Opening Size: 6-1/2 in
-
Light Source Special Features: Thermally protected, Adjustable socket aiming
-
Color Rendering Index: 85
-
Bulb Base: E26 Medium
-
Amperage Output: 0.63 Amps
-

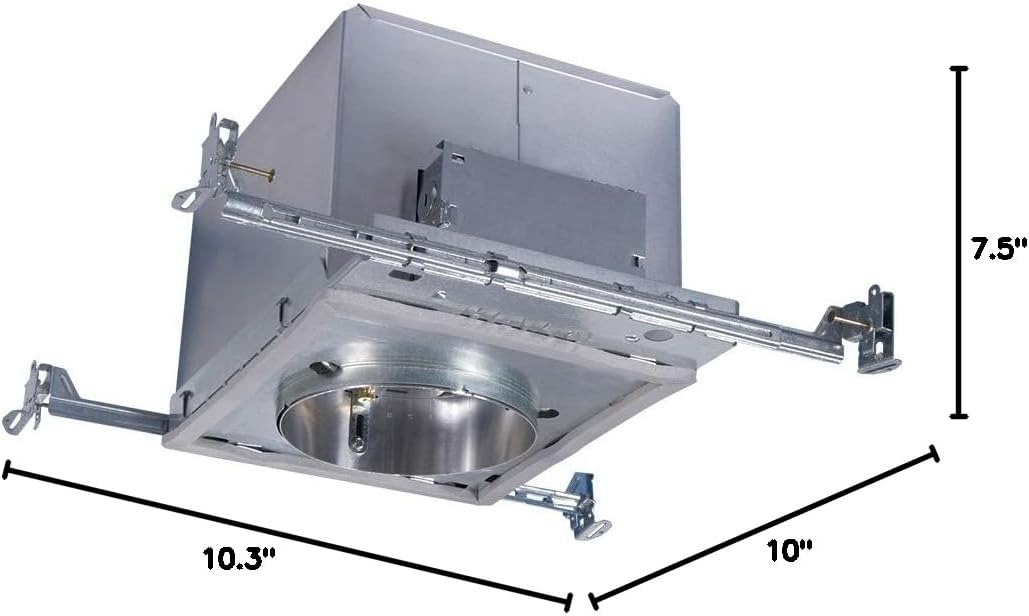

Outside Diameter: 6-1/2 in
-
Overall Height: 7-3/8 in
-
Overall Width: 13 in
-
Width: 13 in
