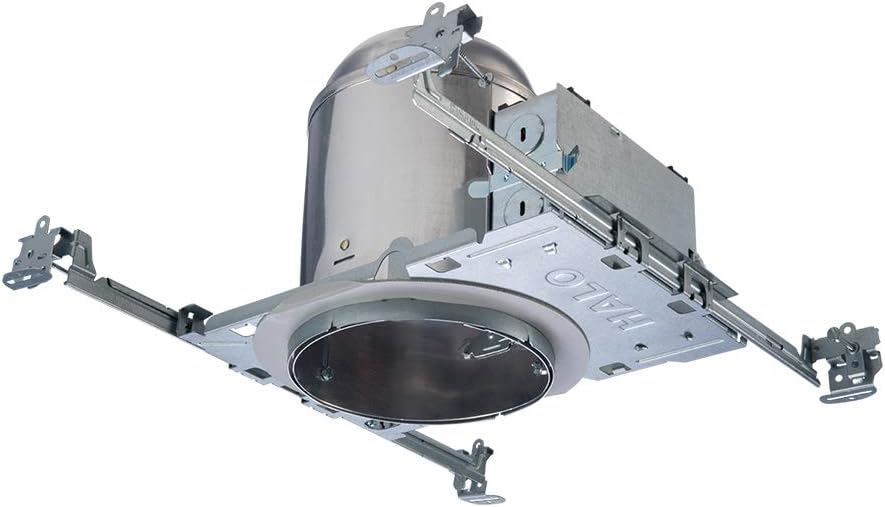

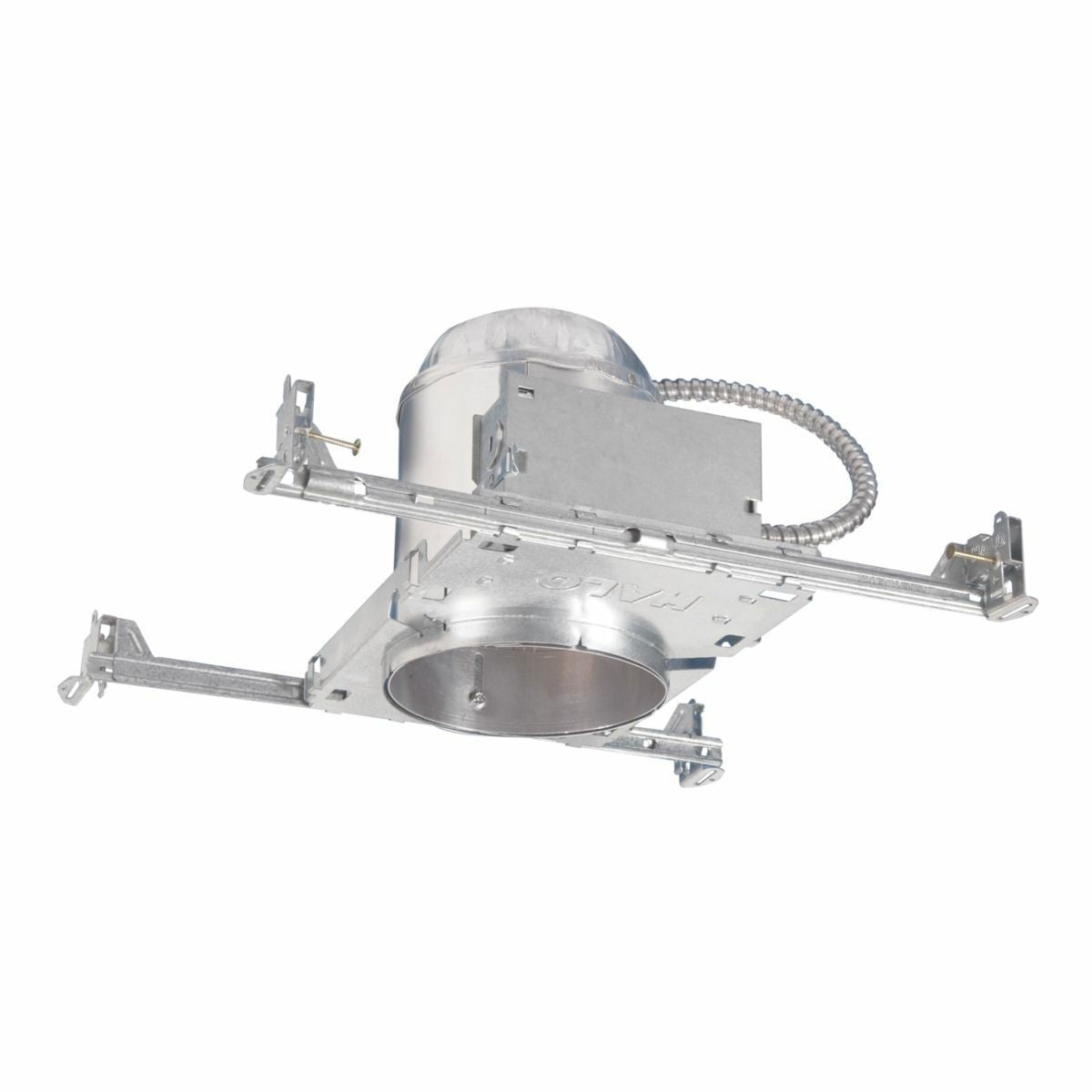

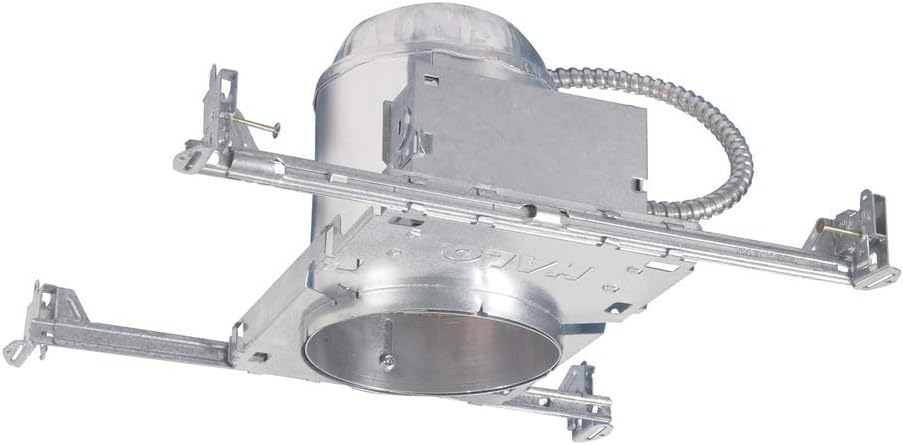

Halo H5ICAT 5 inches Housing IC Air-Tite 120V Line Voltage

Product Description

The Halo H5ICAT is designed to accommodate smaller sized PAR20 and PAR30 halogen lamps. It allows different lighting effects to be created with one basic housing. Designed for insulated ceiling applications, this AIR-TITE housing meets restricted airflow requirements. It uses a 5 inch aperture and can be used with 120V incandescent lamps.

• Got Nail! bar hangers
• Pass-N-Thru tool-less shortening of bar hangers
• Slide-N-Side wire traps

Product Highlights

The H5ICAT features quick connect wiring connectors, thermal protection, and a die-formed housing and plaster frame.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: H5ICAT
• Country of Origin: Mexico

Technical Specifications

• Color: Silver
• Voltage: 120V
• Material: Aluminum
• Type of Bulb: LED
• Certification: CUL/UL
• Lamp Type: Incandescent
• Mounting Type: Recessed
• Wattage: 75 Watt
• Amperage: 0.625 Amp
• Applications: Lighting
• Voltage Rating: 120 VAC
• Ceiling Opening: 5-3/4 in
• Insulation Type: IC
• Number of Lamps: 1
• Housing Material: Aluminum
• Diameter: 5 in
• Cutout Size: 5-3/4 Inch
• Construction: Single Wall Aluminum
• Standard: cULus Listed - Wet Location;Airtite;RoHS Compliant
• Recessed Size: 5"
• Socket: E26
• Series: H5 Series
• Suitable For Use With: Halo Recessed Downlight Fixture
