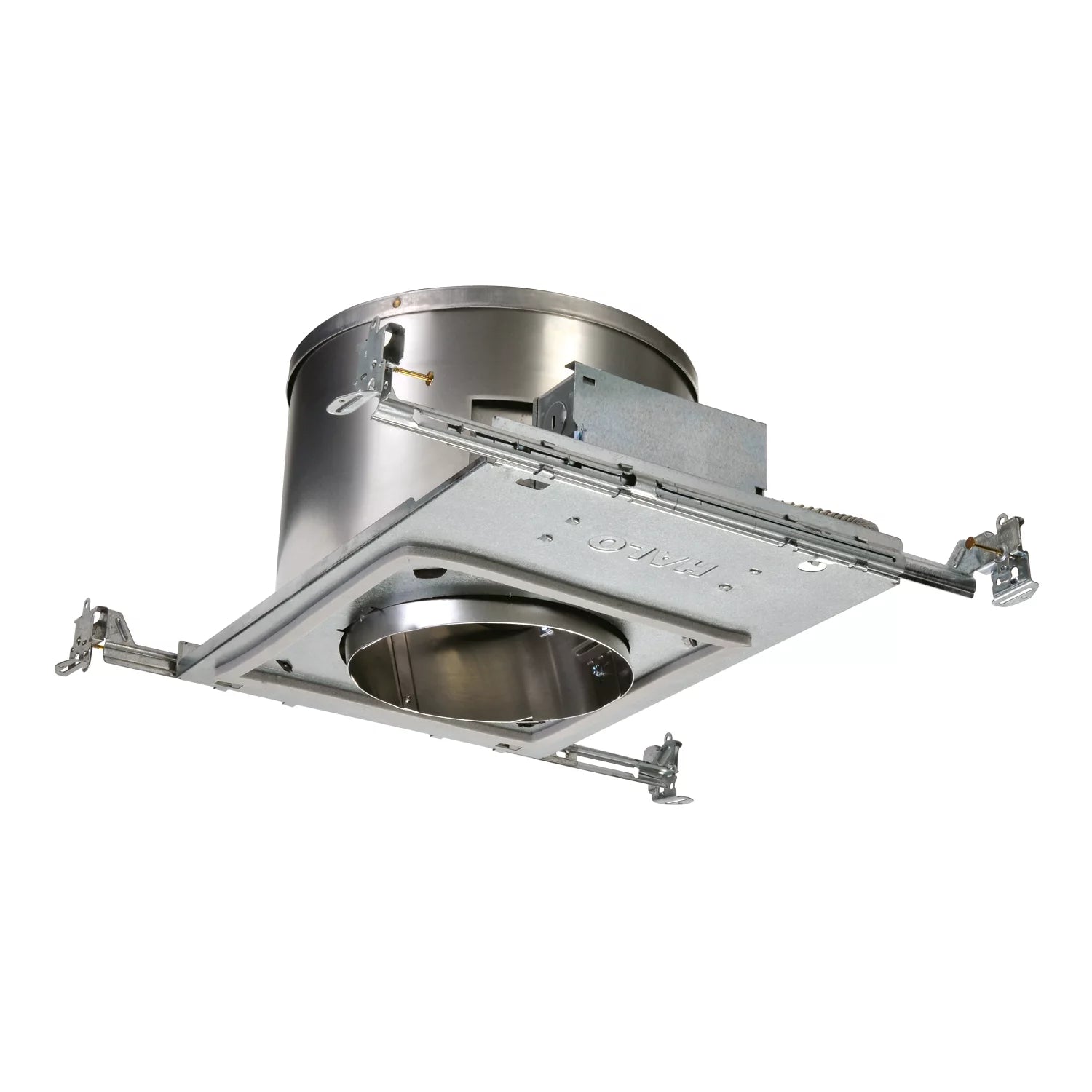

Halo H47ICAT 6 inches Housing Slope Ceiling IC Air-Tite 120V Line Voltage

Product Description

The Halo H47ICAT is designed for sloped ceiling installations for ceilings from 2/12 to 6/12 pitch. The socket aiming mechanism allows the lamp to be aimed straight down in accordance with ceiling pitch. Designed for use in insulated ceilings. The H47ICAT is sealed and gasketed to limit airflow between plenum and heated or air conditioned areas.

• 18.1 IN Length 15.5 IN Width 8.0 IN Height
• Got Nail!™ bar hangers
• Pass-N-Thru™ tool-less shortening of bar hangers

Product Highlights

The Halo H47ICAT is an incandescent housing designed for sloped ceilings with a 2/12 to 6/12 pitch. It features a socket aiming mechanism and is AIR-TITE to prevent airflow.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: H47ICAT
• Country of Origin: Mexico

Technical Specifications

• Type: 6" Slope Ceiling Housing
• Brand: Halo
• Width: 15.5 in
• Finish: Raw Finish
• Height: 8 Inch
• Length: 18.1 Inch
• Voltage: 120 Volt
• Wattage: 100 Watt
• Amperage: 0.75 Amp
• Diameter: 6 Inch
• Material: Steel
• Lamp Type: Incandescent (Not Included)
• Sub Brand: H47ICAT Series
• Applications: Lighting
• Aperture Size: 6 in
• Mounting Type: Recessed
• Air Rating: Airtight
• Number of Lamps: 1
• Lamp Mounting Position: Vertical
• Nominal Aperture Size: 6 Inch
• Aperture Shape: Round
• Ceiling Type: Insulated
• Ceiling Opening Size: 6-3/4 Inch
• Installation: New Construction
• Housing Material: Aluminum
• Junction Box Type: (7) 1/2 Inch Conduit Knockout with Pryout Slot
• Application: Damp/Wet Location
• Approval: UL, CUL, CSA
• Voltage Rating: 120 V
• Amperage Rating: 0.833 at (120V)
• Special Features: Got Nail! bar hangers
• Manufacturer: EATON
• Model / MPN: H47ICAT
• Nominal Size (in.): 6 in
• Aperture: 6 Inch
• Product Type: ELECTRIC_LIGHT
• Product Group: Home Improvement
• Standard: cULus Listed;Airtite
• Catalog number: H47ICAT
