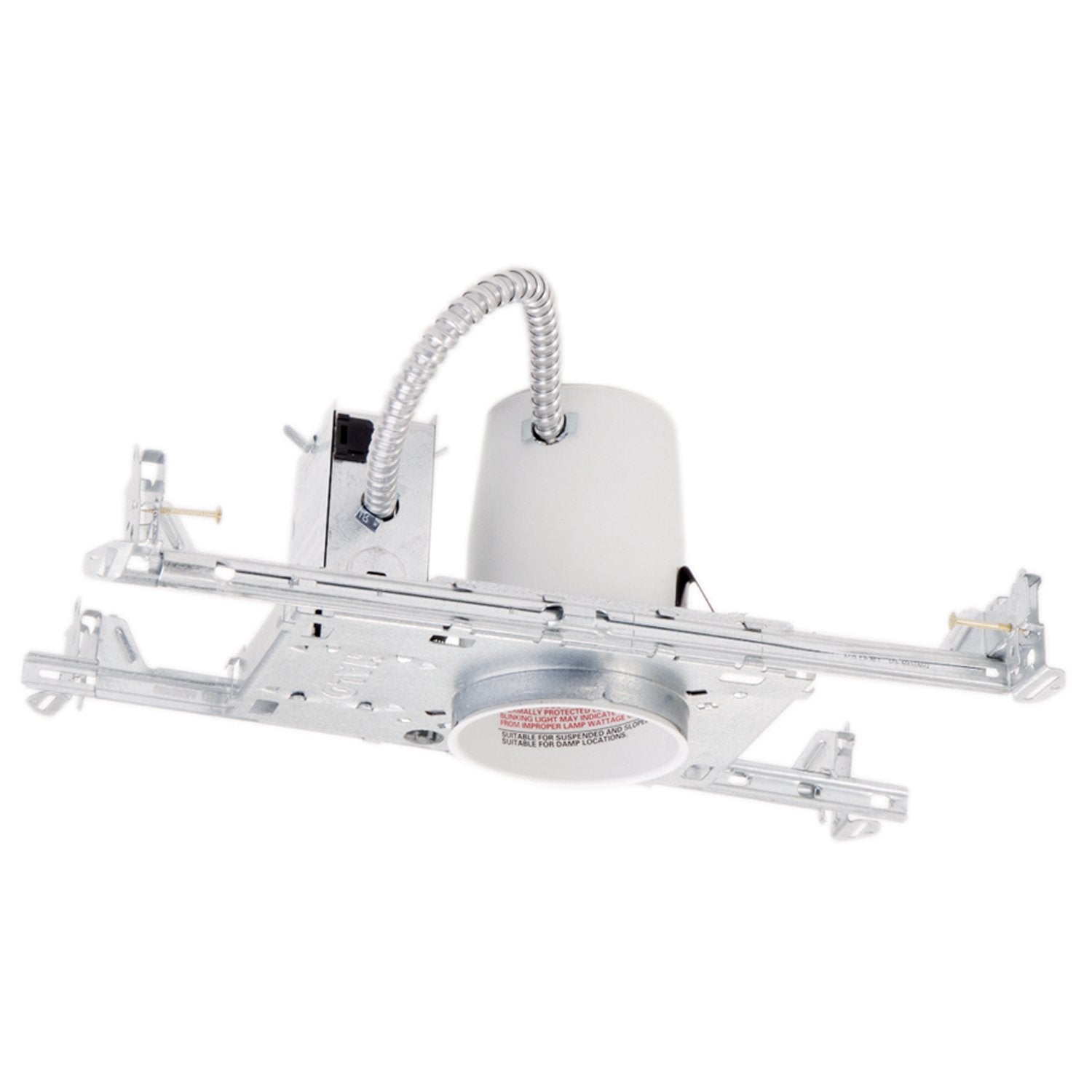

Halo H36TAT 3 inches Housing Non-IC Air-Tite Shallow Ceiling 120V Line Voltage, GU10

Product Description

The HALO H36TAT is a Non-IC AIR-TITE fixture for use with H3 3. series trims. The housing is AIR-TITE rated to prevent airflow between heated or air-conditioned spaces and unconditioned attic areas. It is designed for use with 120V GU10 lamps and requires insulation to be kept 3 inches away from all sides.

• Features Got Nail! bar hangers for easy installation.
• Includes Pass-N-Thru tool-less shortening of bar hangers.
• Equipped with Slide-N-Side wire traps and quick connect wiring connectors in the junction box.

Product Highlights

The HALO H36TAT is a non-IC air-tight fixture designed for shallow ceilings, ensuring energy efficiency and ease of installation in new construction projects.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: H36TAT
• Country of Origin: Mexico

Technical Specifications

• Type: 3" H3 Housing
• Brand: Halo
• Finish: Raw Finish
• Voltage: 120 Volt
• Amperage: 0.417 at (120V)
• Material: Steel
• Sub Brand: H36TAT Series
• Applications: Lighting
• Aperture Size: 3 in
• Mounting Type: Recessed
• ARRA Compliant: Yes
• Number of Lamps: 1
• Lamp Type: GU10
• IC Rated: Non-IC
• Air-Tite: Yes
• Manufacturer Name: Cooper Lighting
• Manufacturer Part Number: H36TAT
• Country Of Origin: United States of America
• UNSPSC: 39111515
• Energy Star Flag: No
• Dimmable: No
• Cutout Size: 3-3/4 Inch
• Construction: 20 Gauge Cold Rolled Steel
• Socket Type: GU10
• Item Name: Recessed Housing
• Standards: UL Listed
• Component Type: Housing
• Trim Size: 3 Inch
• Voltage Rating: 120 Volt Lamp
• Lamp Included: No
• Ceiling Type: Non-Insulated, Air-Tight
• Air Rating: Airtight
• Electrical Connector Type: Luminaire Connector
• Housing Compatibility: H36
• Housing Installation: New Construction
• Insulation Rating: Non-IC
• Alternate Manufacturer Part No.: 11787375
• Volts AC: 120
• Room Type: Attic
• Specific Uses For Product: Lamp
• Indoor Outdoor Usage: Indoor
• Power Source: Corded Electric
• Control Method: Touch
• Light Source: LED
• Number of Light Sources: 1
• Wattage: 50 watts
• Bulb Base: GU10
• Switch Type: Touch
• Water Resistance Level: Not Water Resistant
• Brightness: 85 lumen
• Efficiency: 17 lumens per watt
