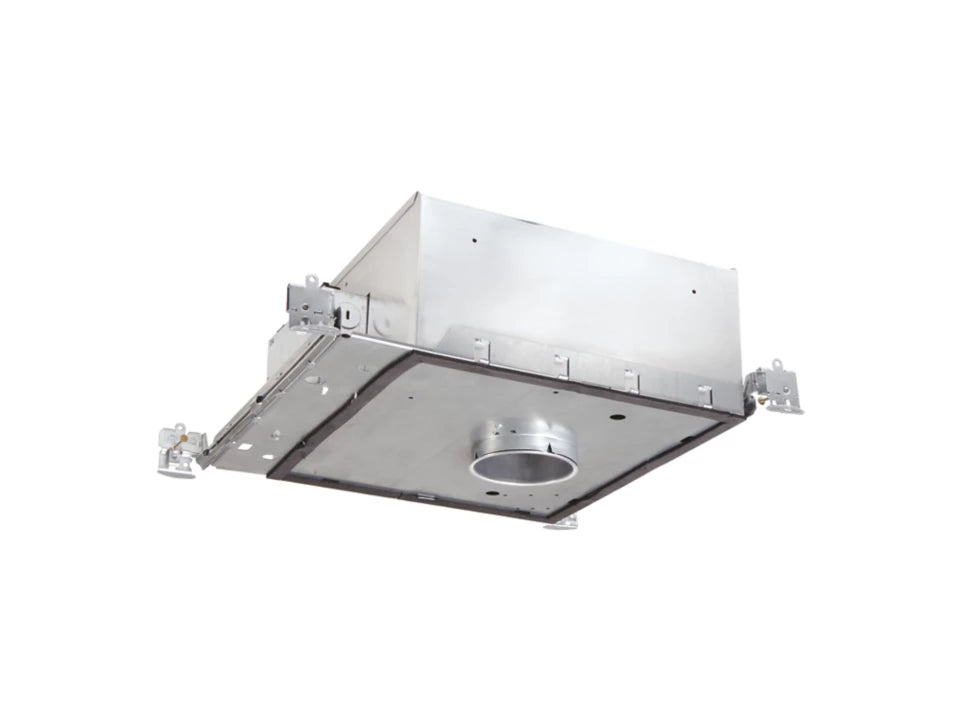

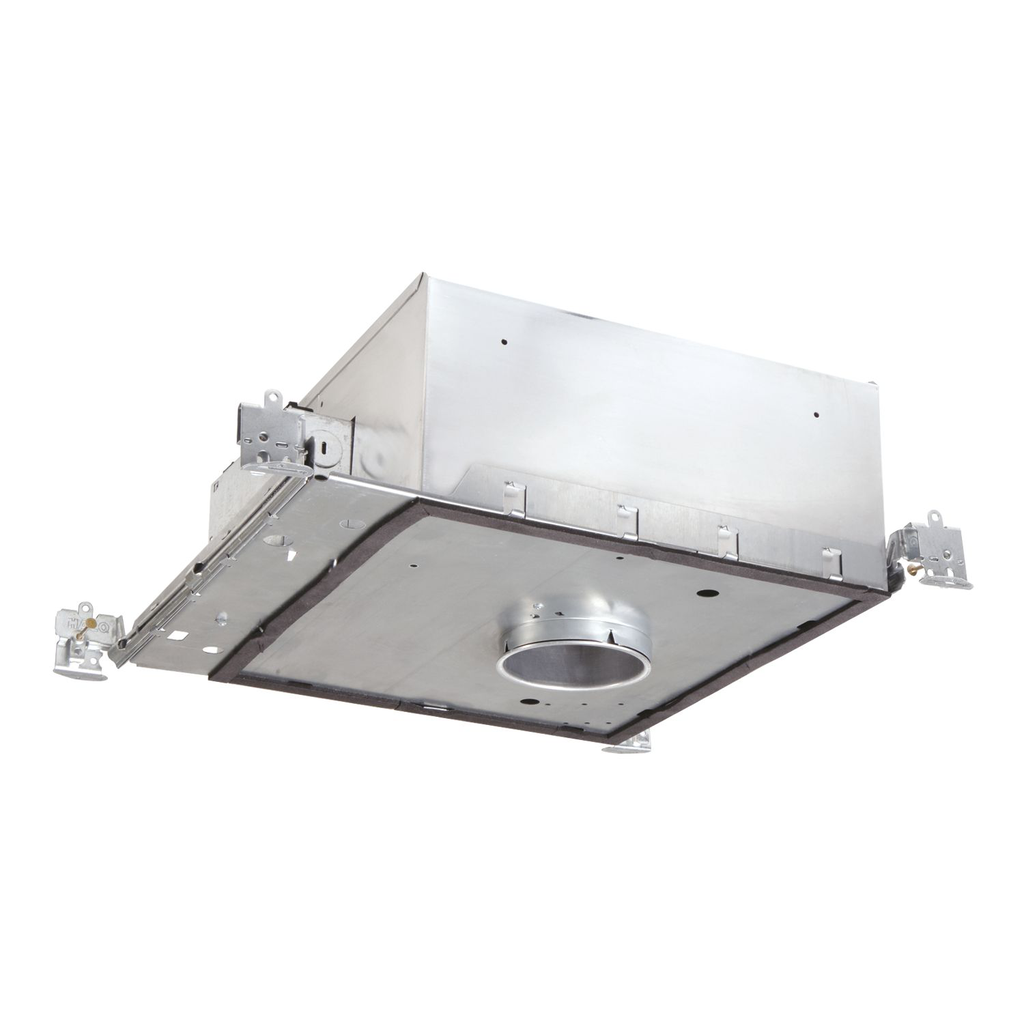

Halo H36ICAT 3 inches Housing IC Air-Tite Shallow Ceiling 120V Line Voltage, GU10

Product Description

The HALO H36ICAT is a shallow IC AIR-TITE fixture designed for use with H3 3 series trims. This housing is AIR-TITE rated, preventing airflow between heated or air-conditioned spaces and unconditioned attic/plenum areas. It is IC rated for use in insulated ceilings and can be covered with insulation. Designed for use with 120V GU10 lamps.

• AIR-TITE rated to prevent airflow
• Got-Nail bar hangers on new construction housings
• Pass-N-Thru tool less shortening of bar hangers

Product Highlights

The H36ICAT is suitable for new construction and shallow ceiling applications. It features quick connect wiring connectors and a die-formed housing and plaster frame.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: H36ICAT
• Country of Origin: Mexico

Technical Specifications

• Type: 3" H3 Housing
• Brand: Halo
• Width: 16.5 in
• Finish: Raw Finish
• Height: 5-1/2 Inch
• Length: 14-1/4 Inch
• Voltage: 120 Volt
• Amperage: 0.417 at (120V)
• Diameter: 3 Inch
• Material: Aluminum
• Sub Brand: H36ICAT Series
• Applications: Lighting
• Aperture Size: 3 in
• Mounting Type: Recessed
• ARRA Compliant: Yes
• Number of Lamps: 1
• MPN: H36ICAT
• Manufacturer: Eaton's Lighting Division
• Bulb Base: GU10
• Number of Bulbs: 1
• Bulb Included: No
• Airtight: Yes
• Housing Type: New Construction Housing
• Light Direction: Down Lighting
• Number of Light Source(s): 1
• Shallow Ceiling Compatible: Yes
• Power Source: Hardwired
• Voltage Type: Line Voltage (110-120V)
• Approved for Commercial Use: Yes
• Certifications: UL
• Collection: Halo
• IC Rating: IC
• Location Rating: Dry Location
• Series: H36 Recessed Housing
• Pack Size: 1
• Nominal Size (in.): 3 in
