Product Description

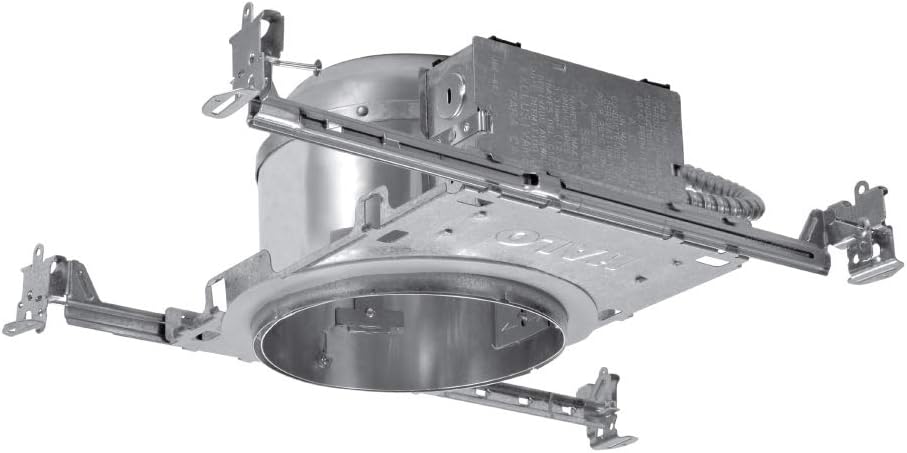

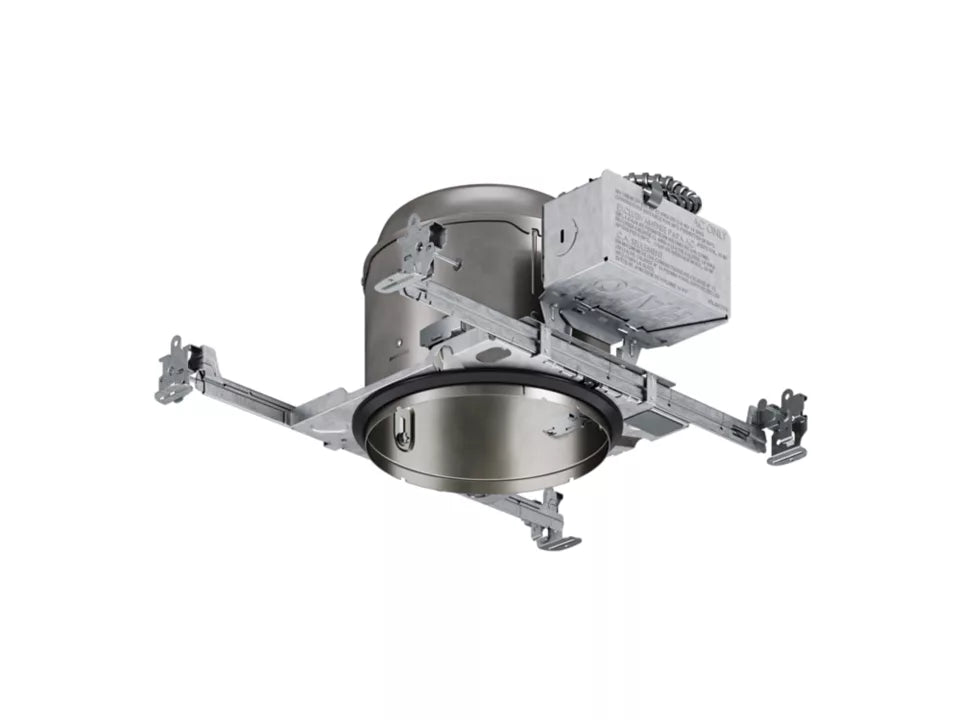

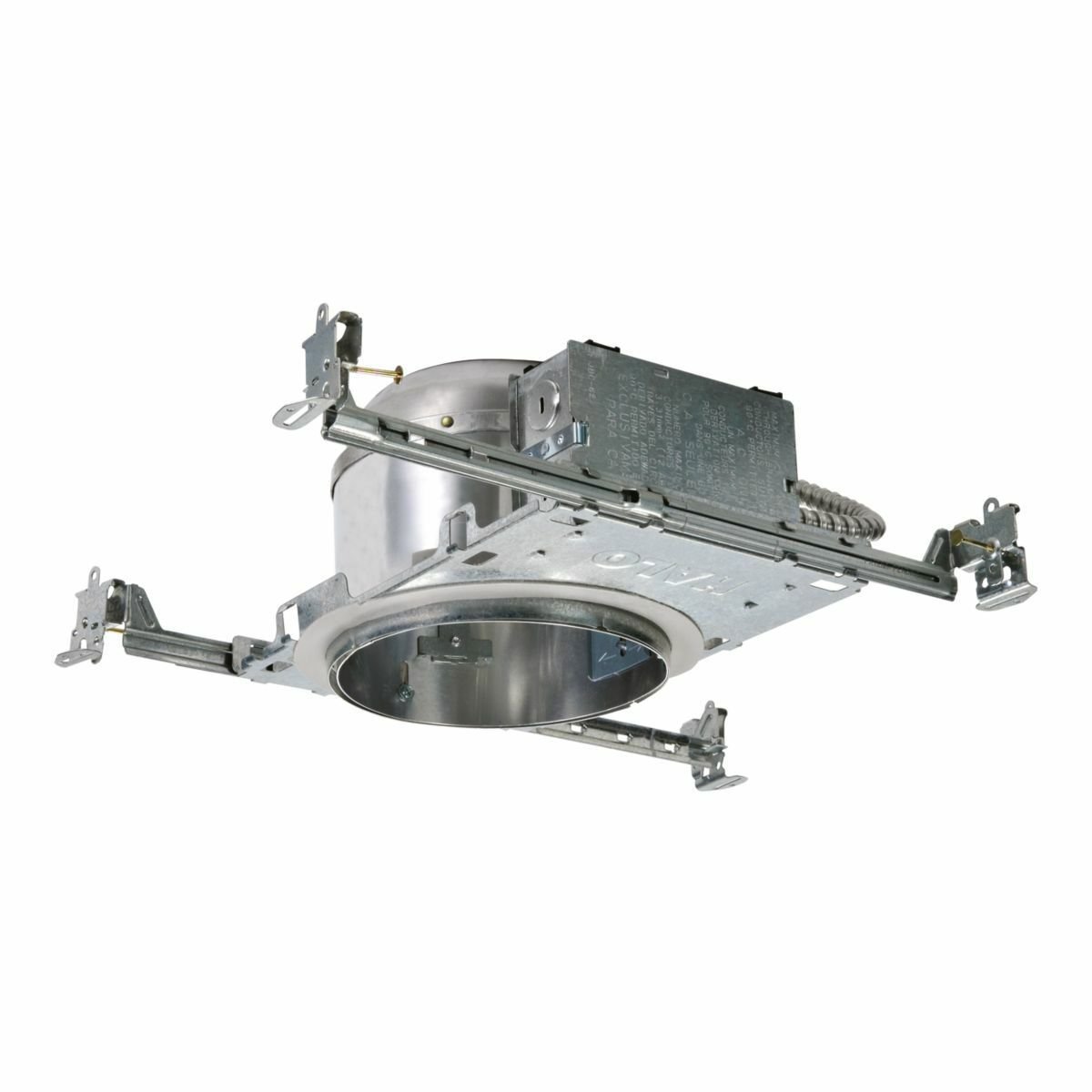

The HALO H27ICAT is a 6 in. aluminum recessed lighting housing designed for new construction shallow ceilings. It is insulation contact and air-tite. Designed for use in shallow ceilings, a wide variety of trims allows different lighting effects to be created with one basic housing. It prevents airflow between conditioned and unconditioned spaces.
- Aluminum Recessed Lighting Housing
- For New Construction Shallow Ceiling
- Insulation Contact
- Air-Tite
Product Highlights
The H27ICAT recessed housing is ideal for both light commercial and residential applications. It features robust construction and may support use of higher wattage lamps. It is AIR-TITE to meet restricted airflow code requirements.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: H27ICAT
-
Country of Origin: Mexico
Technical Specifications
-
Color: Gray
-
Style: Classic
-
Voltage: 120 Volts
-
Wattage: 75 watts
-
Material: Aluminum
-
Room Type: Attic
-
Power Source: AC/DC
-
Mounting Type: Ceiling Mount
-
Shade Material: Aluminum
-
Installation Type: Recessed
-
Light Source Type: LED
-
Size: 6-Inch
-
Unit Count: 1 Count
-
Fixture Type: Non Removable
-
Assembly Required: No
-
Type: 6" H27 Shallow Housing
-
Amperage: 0.625 Amp
-
Lamp Type: BR30/PAR30/PAR30L
-
Applications: Lighting
-
Number of Lamps: 1
-
Socket Type: E26
-
Manufacturer: HALO
-
Voltage Rating: 120V
-
Amperage Rating: 0.625 at (120V)
-
Suitable For Use With: General Purpose Downlighting
-

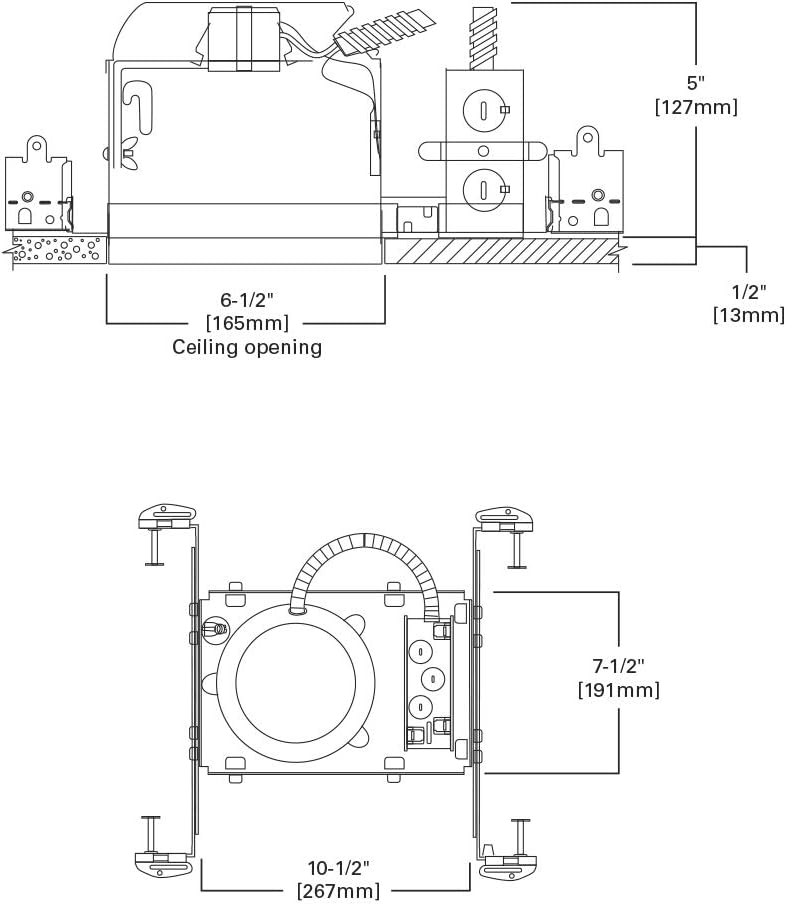

Diameter: 6 in
-
Depth: 7-1/2 in
-
Height: 5 in
-
Ceiling Opening: 6-1/2 in
-
Insulation Type: IC
-
Width: 10.5 in
-
Vendor SKU: H27ICAT
-
Housing Material: Aluminum
-
Sub Brand: H27ICAT Series
-
Length: 12-1/4 Inch
-
Cutout Size: 6-1/2 Inch
-
Construction: Single Wall Aluminum
-
Item Name: New Construction Housing
-
Trim Size: 6 Inch
-
Lamp Included: No
-
Ceiling Type: Insulated
-
Item Type: 6" H27 Shallow Housing
-
Air Rating: Airtight
-
Lamp Wattage: 65/75 W
-
Nominal Aperture Size: 6 Inch
-
Aperture Shape: Round
-
Ceiling Opening Size: 6-1/2 Inch
-
Installation: New Construction
-
Approval: UL, CSA
-
Model / MPN: H27ICAT
-
Number of Items: 1.0
-
Product Type: LIGHT_FIXTURE
-
Product Group: Home Improvement
-
Pack Size: 1
-
Recessed Size: 6"
-
Family: Shallow New Construction Housings (Next Gen)
-
Description: 6" Shallow New Construction Housing, Traditional E26 Socket-Based, IC Rated
-
Aperture: 6 Inch
-
Mounting: Recessed
-
Family group: LIGHTING FIXTURES
-
Standard: cULus Listed - Damp Location;cULus Listed - Wet Location;Airtite
-
Application: Damp/Wet Location
-
New construction, for installations with open ceiling access: true
-
Housing can touch and be covered with insulation: true
-
Shallow recessed light can designed for lower joist construction: true
