Product Description

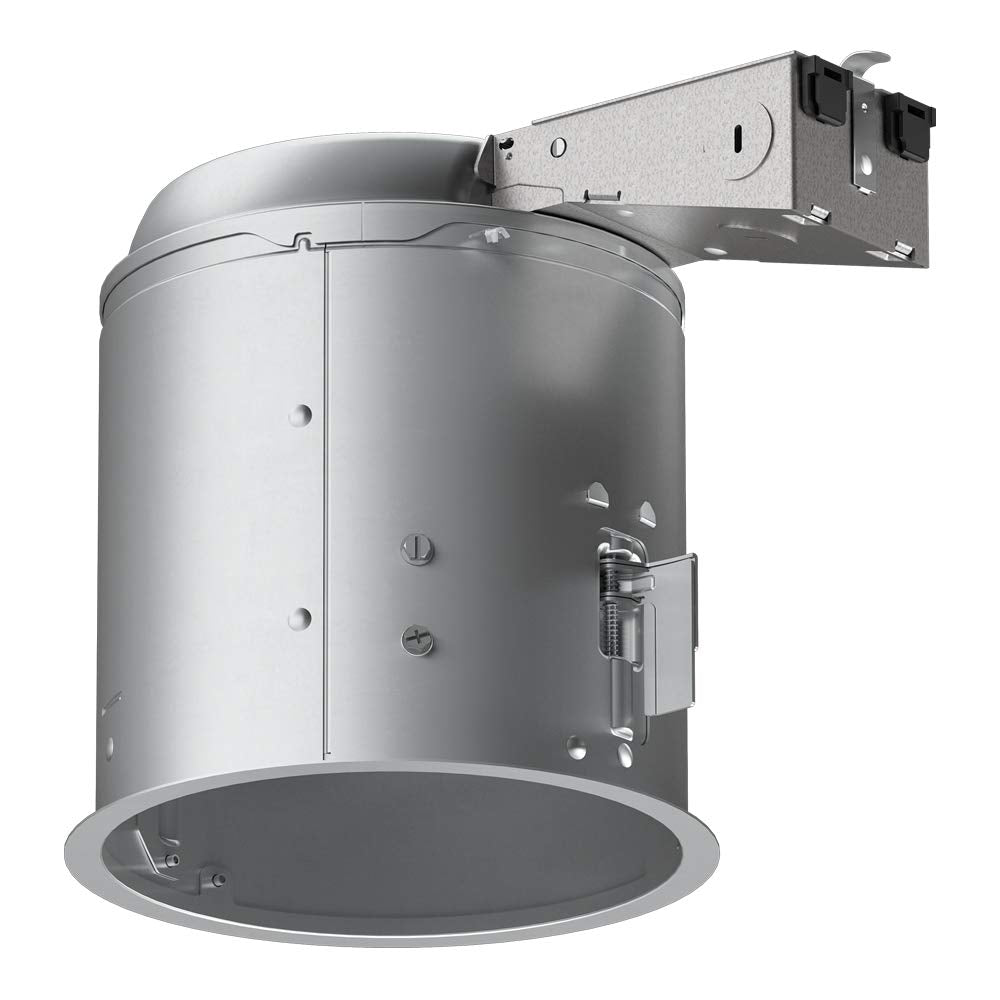

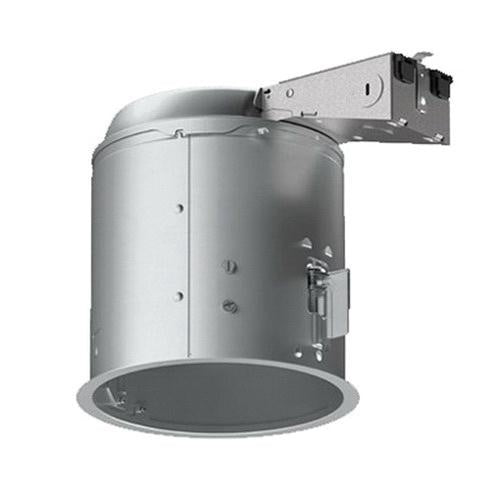

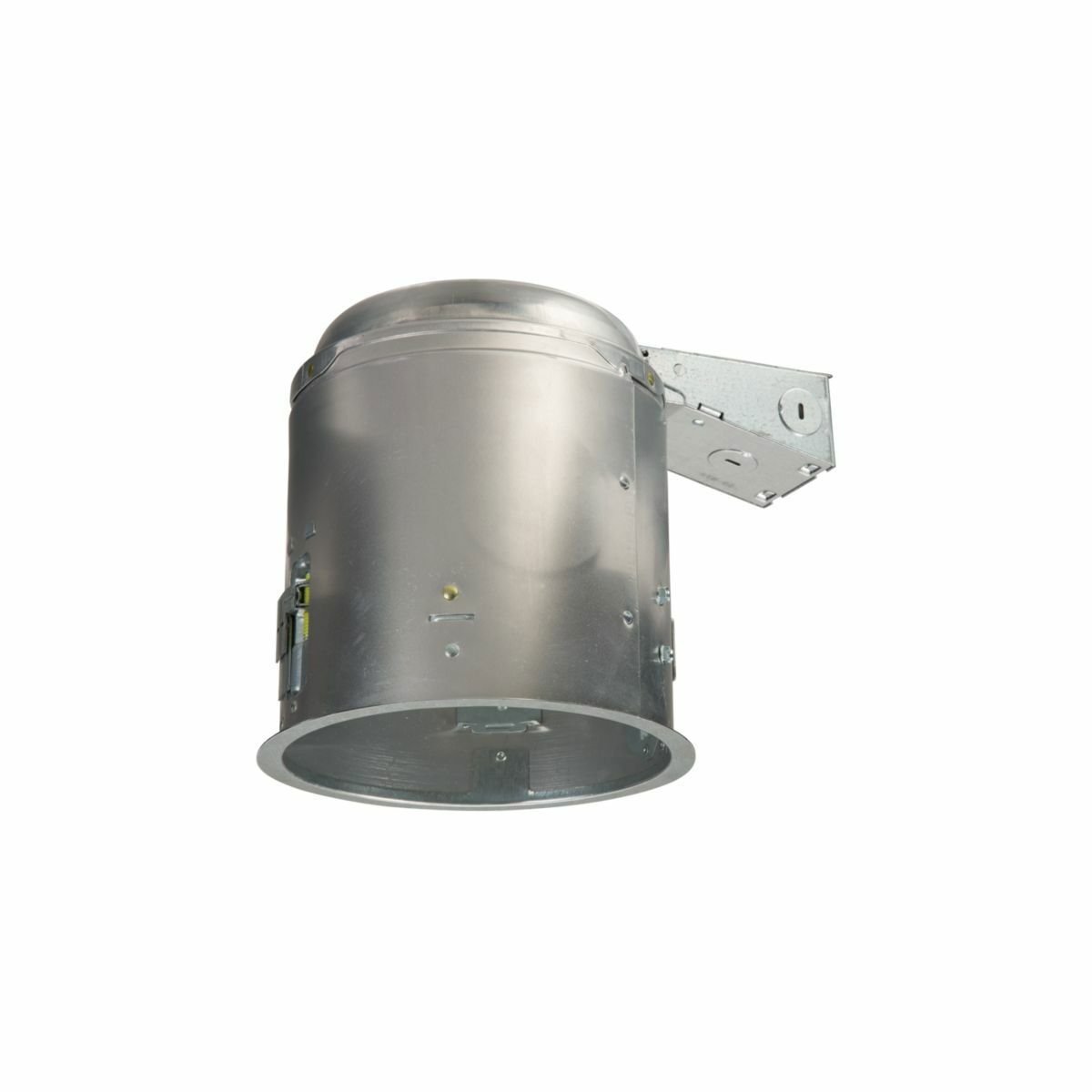

The Halo E7RICAT is a compact and efficient recessed remodel housing optimized for EISA compliant tungsten-halogen, Incandescent, CFL and LED lamps. Suitable for residential or light commercial applications, it's designed for insulated and non-insulated ceilings with airtight construction. It can be retrofit with compatible HALO LED lighting systems.
- For use in insulated ceilings
- Remodel housing design installs from below the finished ceiling
- Exclusive remodel speed clamps securely lock from 3/8" to 2" ceilings
Product Highlights
This 6 inch remodel housing features an E26 screw base and is air-tite tested per ASTM E 283.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: E7RICAT
-
Country of Origin: Mexico
Technical Specifications
-
Type: 6" E7 Housing
-
Brand: Halo
-
Width: 7.0 in
-
Height: 8 Inch
-
Length: 11 Inch
-
Voltage: 120 Volt
-
Amperage: 0.75 at (120V)
-
Diameter: 6 Inch
-
Material: Die-Cast Aluminum
-
Lamp Type: Halogen, Incandescent, LED, CFL (Not Included)
-
Sub Brand: E7RICAT Series
-
Applications: Lighting
-
Mounting Type: Recessed
-
Number of Lamps: 1
-
Standard: Wet Locations;Damp Locations;cULus Listed;Airtite
-
Item Type: 6" E7 Housing
-
Socket Type: E26
-
Trade Size: 6IN
-
Voltage Rating: 120V
-
Amperage Rating: .75 A
-
Special Features: For use in insulated ceilings
-
Housing Material: Die-Formed Aluminum
-
Ceiling Opening Size: 6-1/4 Inch
-
Installation: Remodel
-
Approval: UL (Canada and US)
-
RoHS Compliant: True
-
Includes: Remodel Speed Clamp
-
Applicable Standard: ARRA, ASTM E283
-
Dimmable: No
-
Socket: E26 screw socket
-
Ceiling Type: Insulated, Air-Tight
-
Insulation: IC Insulation
-
Series: E7 Series
-
Air Rating: Air Tight
-
Aperture Shape: Round
-
Junction Box Type: (6) 12 AWG/(8) 14 AWG 90 Deg C Splice Conductor, (2) Non-Metallic Wire Trap, (4) 1/2 Inch Conduit Pry-Out
-
Line Voltage: 120V
-
For Use in Insulated Ceilings: Yes
-
For Direct Contact with Insulation: Yes
-
Can Accommodate up to: 3/8" - 2" Ceiling Thickness
-
Air-Tite: Yes
-
UL Listed: Yes
-
Lamp Wattage: 90 W
-
Opening Diameter: 6 in
-
Depth: 7 in
-
Construction: Die Formed Aluminum
-
Trim Size: 6 Inch
-
Lamp Included: No
-
Lamp Type/Designation: Tungsten-Halogen, CFL, LED, Incandescent
