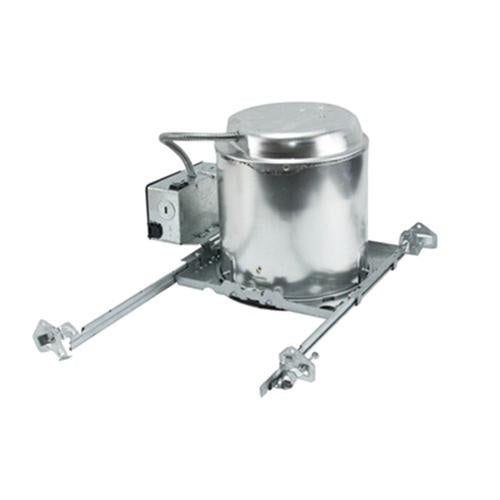

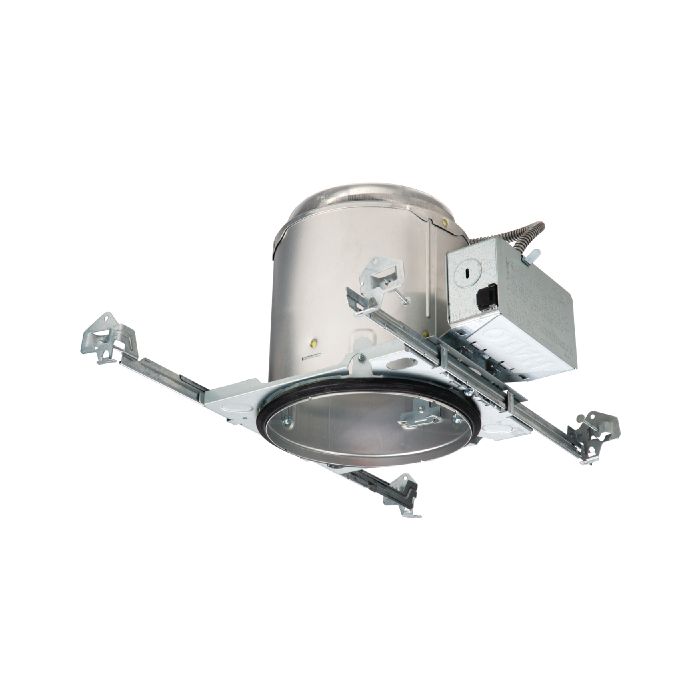

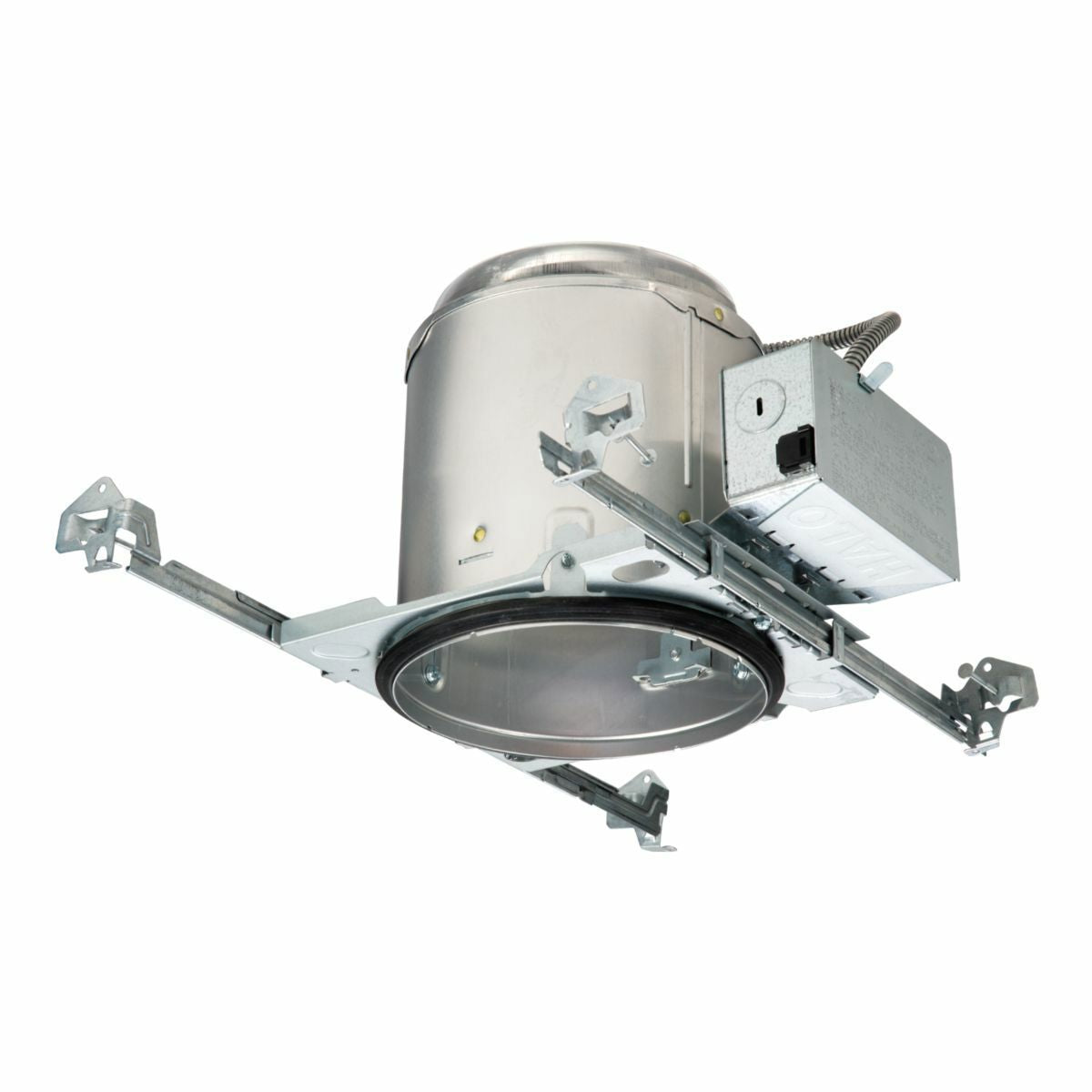

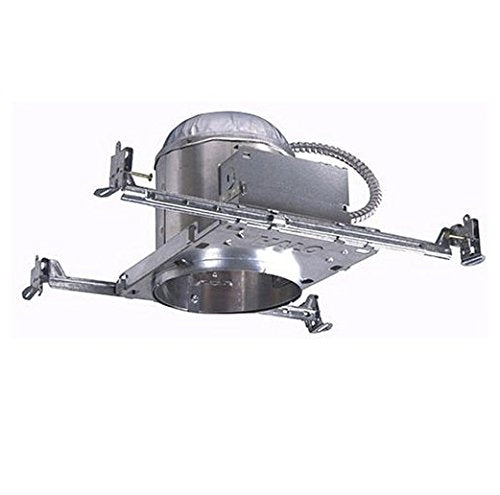

Halo E7ICATNB 6 inches Insulated Ceiling Air-Tite Recessed Light Housing, No Bracket, E26 Screw Base, 120 VAC

Product Description

The Halo E7ICATNB is an AIR-TITE insulated recessed housing designed for new construction. It operates at 120 VAC and is suitable for residential or light commercial applications. This housing is optimized for EISA compliant tungsten-Halogen lamps, as well as Incandescent, CFL and LED integrated lamps. Designed for insulated ceilings and airtight code compliant construction.

• AIR-TITE exclusive housing gasket
• All-Nail bar hangers with pre-installed nail and integral T-grid clip
• Q-channel interlocking hanger bars

Product Highlights

The E7ICATNB recessed housing saves installation time with its design without a socket plate, intended for use with socket supporting trims.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: E7ICATNB
• Country of Origin: Mexico

Technical Specifications

• Type: New Construction
• Series: E7
• Diameter: 6 in
• Lamp Type: E26 Halogen/Incandescent/LED/CFL
• Lamp Wattage: 90 W
• Manufacturer: Cooper Lighting Solutions
• Mounting Type: Ceiling
• Voltage Rating: 120 VAC
• Ceiling Opening: 6-1/2 in
• Insulation Type: Insulated
• Number of Lamps: 1
• Housing Material: Die Cast Aluminum
• Suitable For Use With: Halo LED Lighting System, Insulated Ceiling and Trim
• Application: Lighting
• Standard: cULus Listed - Damp Location;cULus Listed - Wet Location;UL/cUL Listed 1598 Luminaire;AIR-TITE (TM) Certified ASTM E283;RoHS Compliant;UL/cUL Listed for Insulation Contact
• Item Type: 6" E7 Housing
• Air Rating: Airtight
• Ceiling Type: Insulated, Air-Tight
• Installation: New Construction
• Junction Box Type: Hinged, (4) 1/2 Inch Conduit Pryout, (3) Slide-N-Side Non-Metallic Wire Trap
• Approval: UL (Canada and US)
• RoHS Compliant: True
• Lamp Type/Designation: Tungsten-Halogen, CFL, LED, Incandescent
• Socket Type: E26 Medium Screw-In
• Standards: cULus 1598, RoHS Compliant
• Component Type: Housing
• Trim Size: 6 Inch
• Applications: Lighting
• Material: Die-Cast Aluminum
