Product Description

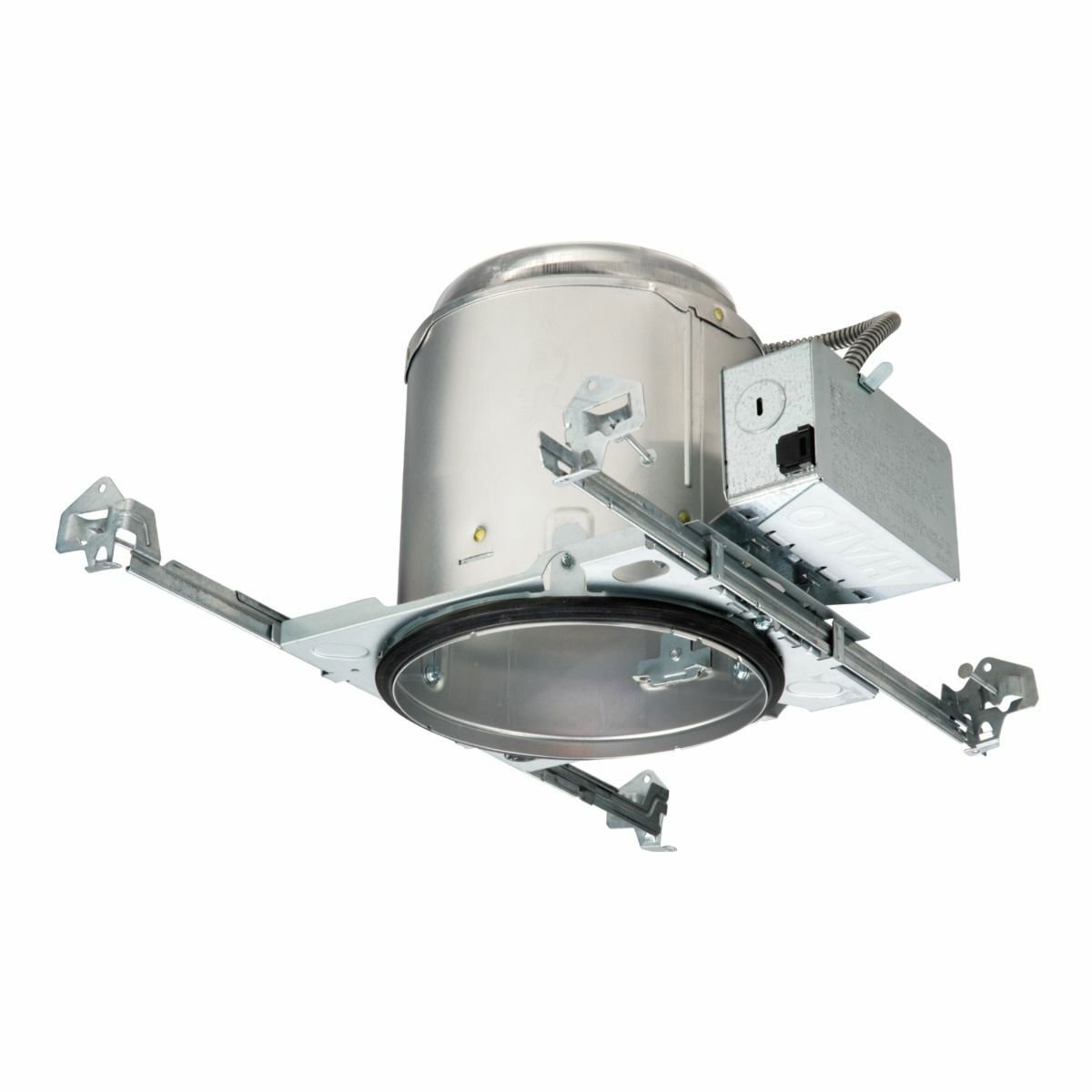

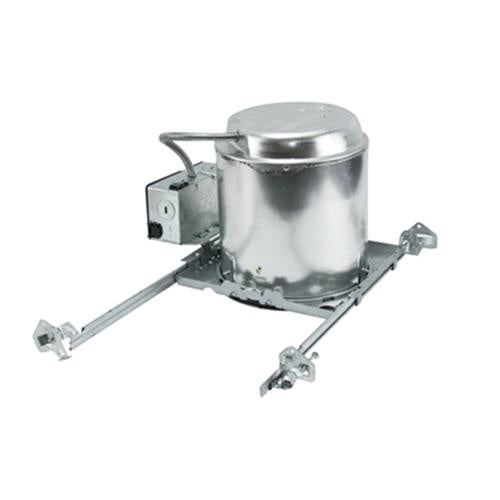

The Halo E7ICAT is a compact and efficient recessed housing optimized for EISA compliant tungsten-halogen, Incandescent, CFL, and LED lamps. Suitable for residential or light commercial applications and installation in insulated and non-insulated ceilings with airtight construction. It features die-formed aluminum construction and an E26 screw socket.
- For use in insulated ceilings
- Air-Tite exclusive housing gasket
- Air-Tite tested per ASTM E 283
Product Highlights
This Halo recessed housing is suitable for new construction and airtight code compliant construction.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: E7ICAT
-
Country of Origin: Mexico
Technical Specifications
-
Type: New Construction
-
Series: E7 Series
-
Diameter: 6 in
-
Lamp Type: CFL/Halogen/Incandescent/LED
-
Mounting Type: Ceiling
-
Voltage Rating: 120 VAC
-
Ceiling Opening: 6-1/2 in
-
Insulation Type: IC
-
Housing Material: Die Cast Aluminum
-
Suitable For Use With: Halo Recessed Downlight Fixture
-
Wattage: 90 Watt
-
Amperage: 0.75 Amp
-
Material: Die-Cast Aluminum
-
Applications: Lighting
-
Ballast Type: N/A
-
ARRA Compliant: Yes
-
Number of Lamps: N/A
-
Socket: E26 Base
-
Mounting: Insulated air-tite ceiling mountable
-
Application: Residential or light commercial
-
Construction: Die-formed aluminum
-
Trade Size: 6IN
-
Air Rating: Air Tight
-
Nominal Aperture Size: 6 Inch
-
Installation: New Construction
-
Ceiling Type: Insulated
-
Ceiling Opening Size: 6-1/2 Inch
-
Approval: UL (Canada and US)
-
RoHS Compliant: True
-
Current Rating: 0.75 Amp
-
Recessed Size: 6"
-
Voltage: 120V
-
Hanger bars: All-Nail bar hangers with preinstalled nail and integral T-grid clip
-
Hanger bars feature: Pass-N-Thru tool-less shortening
-
Junction box: Hinged junction box with Slide-N-Side
-
Size: 6 In.
