Product Description

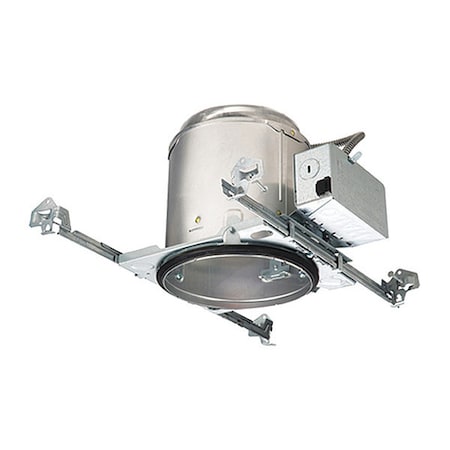

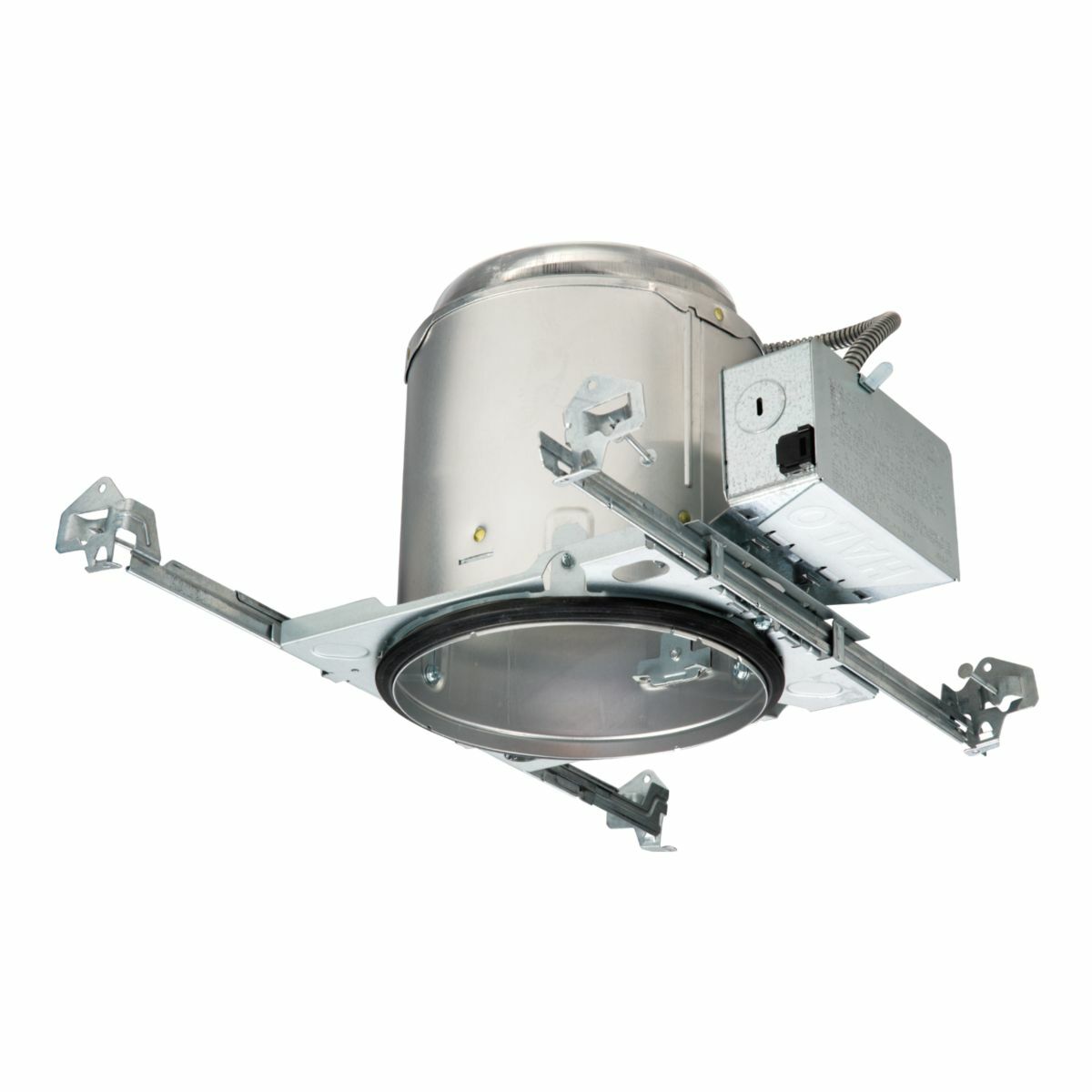

The Halo E750ICAT is a 6" recessed new construction housing designed for use with LED integrated trims or modules. Suitable for 2x8 residential framing or commercial plenum construction, it is IC rated for direct contact with insulation. Its airtight rating reduces airflow, providing energy savings. It is designed for use with Halo LT56, SMD6, RL56, RA56, SLD6 LED integrated trims and the ML56 LED modular recessed lighting system.
- For use in insulated ceilings
- Air-Tite exclusive housing gasket
- Air-Tite tested per ASTM-E283
Product Highlights
This recessed housing is suitable for new construction and compatible with various Halo LED trims and modules. It is IC rated and airtight for energy efficiency.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: E750ICAT
-
Country of Origin: China
Technical Specifications
-
Type: 6" E7 Housing
-
Brand: Halo
-
Width: 11.5 in
-
Height: 7-1/4 Inch
-
Length: 13-1/4 Inch
-
Voltage: 120 Volt
-
Diameter: 6 Inch
-
Lamp Type: LED
-
Sub Brand: E750ICAT Series
-
Product UPC: 08008377504
-
12-Digit UPC: 080083775040
-
Applications: Lighting
-
Ballast Type: N/A
-
Mounting Type: Recessed
-
ARRA Compliant: Yes
-
Number of Lamps: 1
-
Voltage Rating: 120-277V
-
Country of Origin: China
-
Made in USA: No
-
Special Features: For use in insulated ceilings
-
Standard: cULus Listed - Damp Location;cULus Listed - Wet Location;Airtite;RoHS Compliant
-
UPC: 080083775040
-
GTIN: 00080083775040
-
Fixture Wattage: 20 Watt
-
Mounting: Recessed
-
Item Name: LED Recessed Housing
-
For Use With: Integrated LED Trims and Modules
-
Dimmable: No
-
Degree of Protection: IP56
-
Construction: Single Wall Precision Rolled Aluminum and Compact Galvanized Steel Plaster Frame
-
Standards: cULus Certified, CE Marked, NEMA LSD57-2013 Rated, ASTM-E283 Standard, Energy Star Qualified, NEC 410.16, Title 24, RoHS Compliant
-
Component Type: Housing
-
Trim Size: 6 Inch
-
Lamp Included: No
-
Ceiling Type: Insulated, Air-Tight
-
Shape: Round
-
UNSPSC: 39111515
-
Manufacturer Part Number: E750ICAT
-
Manufacturer Name: Cooper Lighting
-
RoHS Flag: Contact manufacturer
-
Energy Star Flag: No
-
Suitable For: 2x8 residential framing or commercial plenum construction
-
Rating: Type IC rated, Airtight
-
Housing Material: Aluminum
-
Enclosure Type: IP56
-
Lamp Wattage: 20 W
-
Suitable For Use With: LT56, SMD6, RL56, RA56, SLD6 LED Integrated Trims, ML56 LED Modular Recessed Lighting System
-
Includes: Quick Connect Push-In Wire Nut
-
Application: For use in insulated ceilings and lighting applications
-
Order Code: E750ICAT
-
Input Volts: 120-277V
-
Certifications: IECC, Air Tight, cULus, EnergyStar, Title24, RoHS, CE
