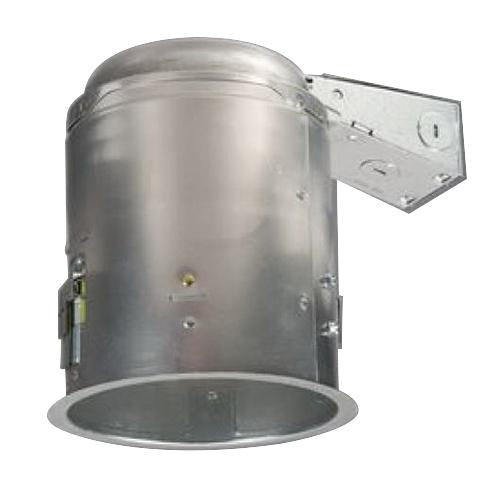

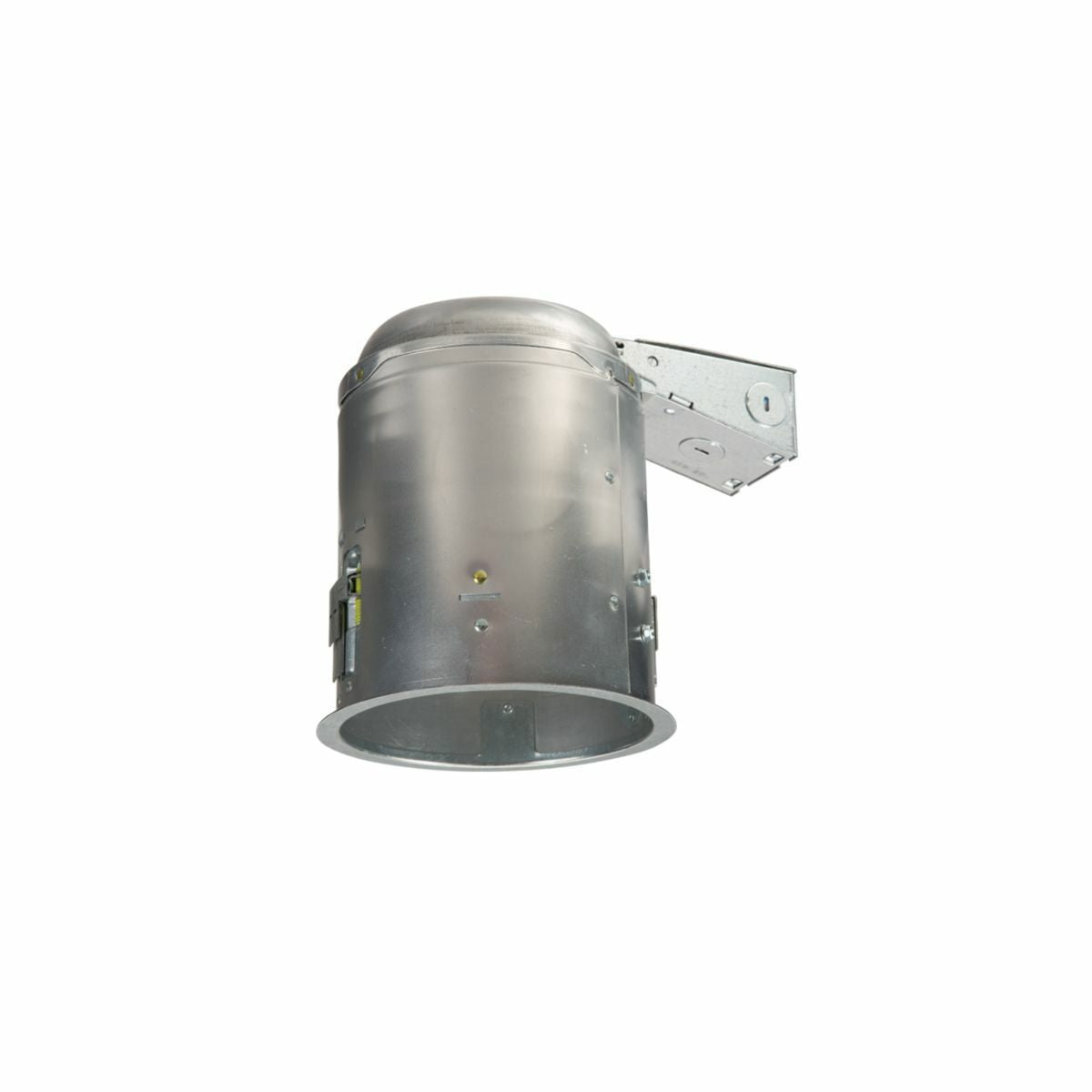

Halo E5RICAT 5 inches IC, Air-Tite, Remodel Housing, 120V

Product Description

The Halo E5RICAT is a compact and efficient recessed remodel housing optimized for EISA compliant tungsten-halogen, Incandescent, CFL and LED lamps. Suitable for residential or light commercial applications, it's designed for insulated and non-insulated ceilings with airtight construction. It can be retrofit with compatible HALO LED lighting systems.

• For use in insulated ceilings
• Remodel housing design installs from below the finished ceiling
• Exclusive remodel speed clamps securely lock from 3/8" to 2" ceilings

Product Highlights

The Halo E5RICAT is an efficient recessed housing for various lamp types, ideal for residential or commercial use. It features remodel speed clamps and is suitable for insulated ceilings.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: E5RICAT
• Country of Origin: Mexico

Technical Specifications

• Type: 5" E5 Housing
• Brand: Halo
• Width: 9.1 in
• Height: 7-1/2 Inch
• Length: 6-1/4 Inch
• Voltage: 120 Volt
• Amperage: 0.625 at (120V)
• Diameter: 5 Inch
• Material: Die-Cast Aluminum
• Lamp Type: Halogen
• Sub Brand: E5RICAT Series
• Bulb Shape: PAR20/PAR30
• Applications: Lighting
• Ballast Type: N/A
• Mounting Type: Recessed
• ARRA Compliant: Yes
• Special Features: For use in insulated ceilings
• Standard: Wet Locations;Damp Locations;cULus Listed;Airtite
• Item Type: 5" E5 Housing
• Voltage Rating: 120V
• Size: 5 in
• Series: Halo E5
• Lamp Type/Designation: Tungsten-Halogen, CFL, LED, Incandescent
• Manufacturer Name: Cooper Lighting
• Manufacturer Part Number: E5RICAT
• Dimmable: No
• Construction: Die Formed Aluminum
• Socket Type: E26 Medium Screw-In
• Item Name: Recessed Remodel Housing
• Standards: cULus 1598, RoHS Compliant
• Component Type: Housing
• Trim Size: 5 Inch
• Lamp Included: No
• Ceiling Type: Insulated, Air-Tight
• MPN: E5RICAT
• Reference ID: HALOE5RICAT
