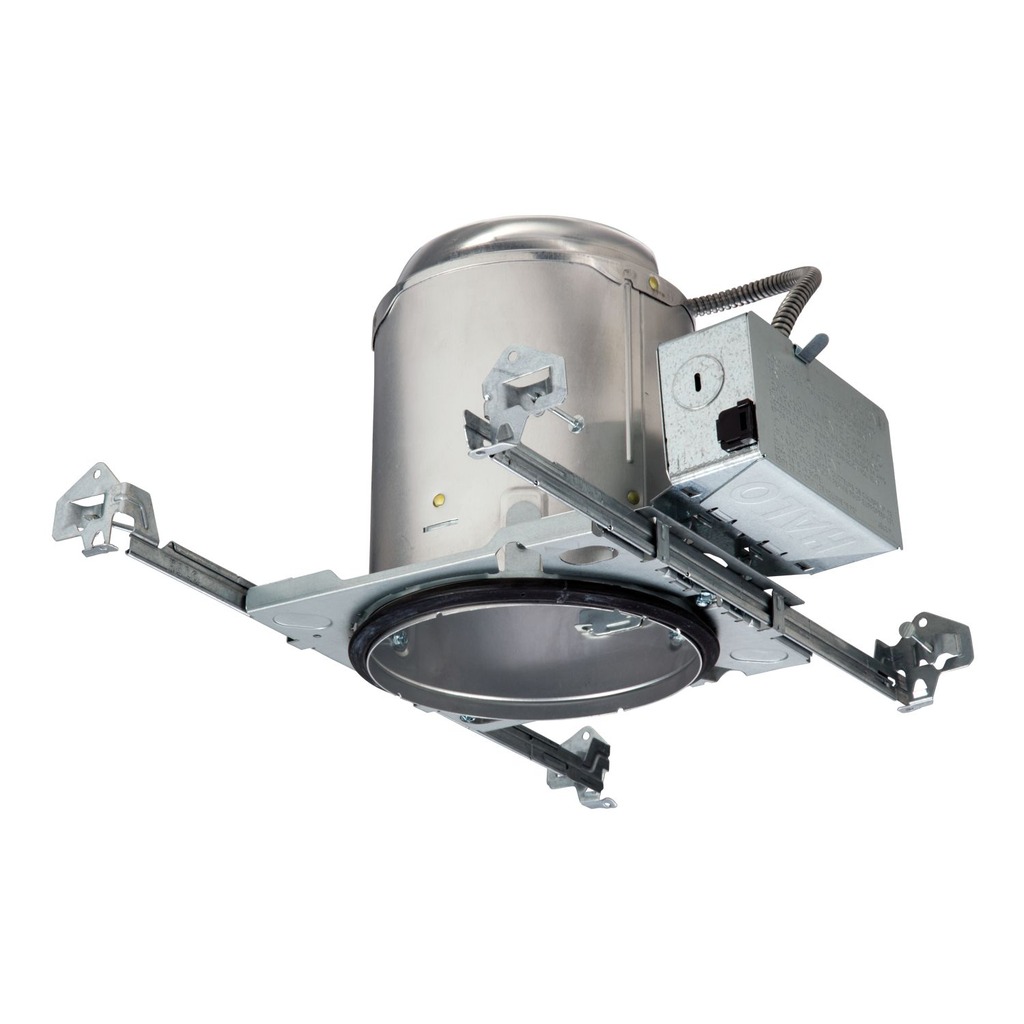

Halo E5ICAT 5 inches IC, Air-Tite New Construction Recessed Downlight Housing, E26 Screw Base

Product Description

The Halo E5ICAT is a compact and efficient recessed housing optimized for EISA compliant tungsten-halogen, Incandescent, CFL and LED lamps. Suitable for residential or light commercial applications, it's designed for insulated and non-insulated ceilings with airtight construction. It can be retrofit with compatible HALO LED lighting systems.

• For use in insulated ceilings
• Air-Tite exclusive housing gasket
• Air-Tite tested per ASTM E 283

Product Highlights

This recessed downlight housing is ideal for creating various lighting effects and matching any decor with a variety of trims and finishes.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: E5ICAT
• Country of Origin: Mexico

Technical Specifications

• Type: 5" E5 Housing
• Brand: Halo
• Voltage: 120 Volt
• Wattage: 75 Watt
• Amperage: 0.625 Amp
• Diameter: 5 Inch
• Material: Die-Cast Aluminum
• Lamp Type: Halogen
• Sub Brand: E5ICAT Series
• Applications: Lighting
• Ballast Type: N/A
• Mounting Type: Ceiling
• ARRA Compliant: Yes
• MPN: E5ICAT
• Reference ID: HALOE5ICAT
• Socket: E26 screw socket
• Construction: Die-formed aluminum
• Mounting: Insulated air-tite ceiling mountable
• Application: For lighting applications
• Compliance: cULus listed and RoHS compliant
• Series: Halo E5
• Special Features: New Construction
• Voltage Rating: 120 VAC
• Ceiling Opening: 5-3/4 in
• Insulation Type: IC Insulation
• Fixture Diameter: 5 in
• Fixture Height: 7-1/4 in
• Fixture Width: 10-1/2 in
• Fixture Depth: 9-7/8 in
• Housing Material: Die Cast Aluminum
• Recessed Size: 5"
• Socket Type: E26 Medium Screw-In
• Item Name: Recessed New Construction Housing
• Standards: cULus 1598, RoHS Compliant
• Component Type: Housing
• Trim Size: 5 Inch
• Lamp Included: No
• Ceiling Type: Insulated, Air-Tight
• Lamp Type/Designation: Tungsten-Halogen, CFL, LED, Incandescent
• Manufacturer Name: Cooper Lighting
• Manufacturer Part Number: E5ICAT
• Country Of Origin: Mexico
• Includes: Adjustable Socket Bracket
• Dimmable: No
• Lamp Wattage: 75 W
• Depth: 9-7/8 in
• Suitable For Use With: Halo Recessed Downlight Fixture
• Standard & Approvals: cULus Listed|ECCN: EAR99NLR|Damp/Wet Locations Listed
• Manufacturer: Cooper Lighting Solutions
• Included: Bar Hangers, q-Channel Bars, Hinged Junction Box and Push Wire Nuts
• Pack Size: 1
• Nominal Size (in.): 5 in
• Model Number: E5ICAT
• Item Type Name: 5" IC AIR-TITE HOUSING
• Included Components: Electrical & Heating; Rough Electrical;recessed-light-fixture-housings
• Unit Count: 1.0 Count
• Finish Type: Painted
• Installation Type: Screw-In
• Specification Met: Eisa
