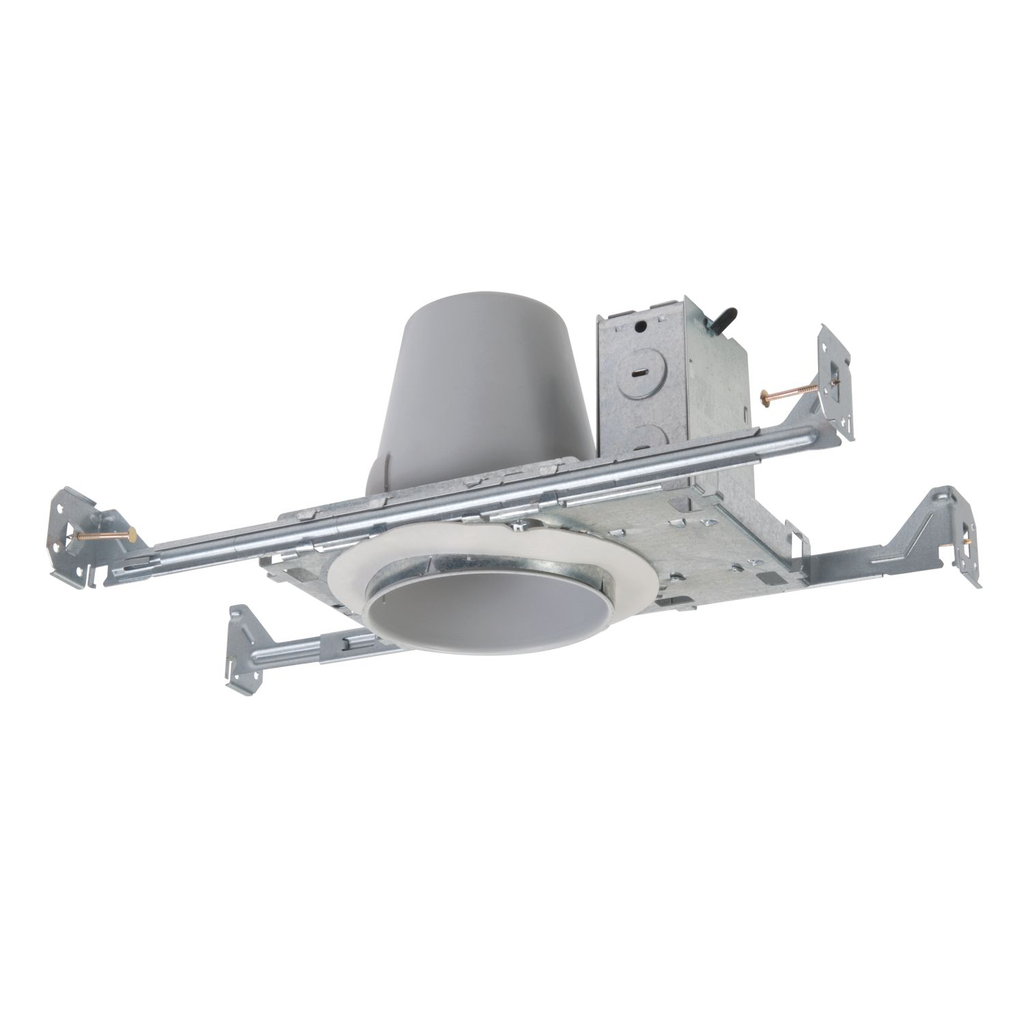

Halo E4TATSB 4 inches Non-IC, Air-Tite, New Construction Housing, 120V w/ Socket Bracket

Product Description

The Halo E4TATSB is a compact and efficient recessed remodel Non-IC housing optimized for EISA compliant tungsten-halogen, Incandescent, CFL and LED lamps. Suitable for residential or light commercial applications and non-insulated ceilings. Features airtight code compliant construction and an adjustable socket bracket.

• For use in non-insulated ceilings
• Air-Tite exclusive housing gasket
• Air-Tite tested per ASTM E 283
• Socket bracket adjusts lamp to various trim styles and designs

Product Highlights

The Halo E4TATSB is an air-tight, non-IC housing suitable for new construction and remodel applications. It is compatible with a variety of trims and lamp types.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: E4TATSB
• Country of Origin: Mexico

Technical Specifications

• Type: 4" E4 Housing
• Brand: Halo
• Voltage: 120 Volt
• Wattage: 60 Watt
• Amperage: 0.5 Amp
• Material: Steel
• Lamp Type: CFL/Halogen/Incandescent/LED Lamp
• Sub Brand: E4TATSB Series
• Applications: Lighting
• Mounting Type: Recessed
• Fixture Type: 4 in. Housing
• Insulation Rating: Non-IC
• Construction: New Construction
• Air Rating: Air Tight
• Nominal Aperture Size: 4 Inch
• Aperture Shape: Round
• Ceiling Type: Non-Insulated
• Ceiling Opening Size: 4-1/2 Inch
• Installation: New Construction
• Housing Material: Steel Housing
• Junction Box Type: (10) 12 AWG 90 Deg C Splice Conductor, (3) Non-Metallic Wire Trap, (7) 1/2 Inch Conduit Pry-Out, (3) 4-Port Push-In Wire Nut
• Application: Wet and Damp Location, Residential, Light Commercial
• Approval: UL (Canada and US)
• RoHS Compliant: True
• Applicable Standard: EISA
• Voltage Rating: 120 VAC
• Lamp Wattage: 60 W
• Mounting: Ceiling Mount
• Socket Type: E26
• Standard: Wet Locations;Damp Locations;cULus Listed;Airtite
• Manufacturer: HALO
• Special Features: For use in non-insulated ceilings
• Series: E4
• Ceiling Opening: 4-1/2 in
