Product Description

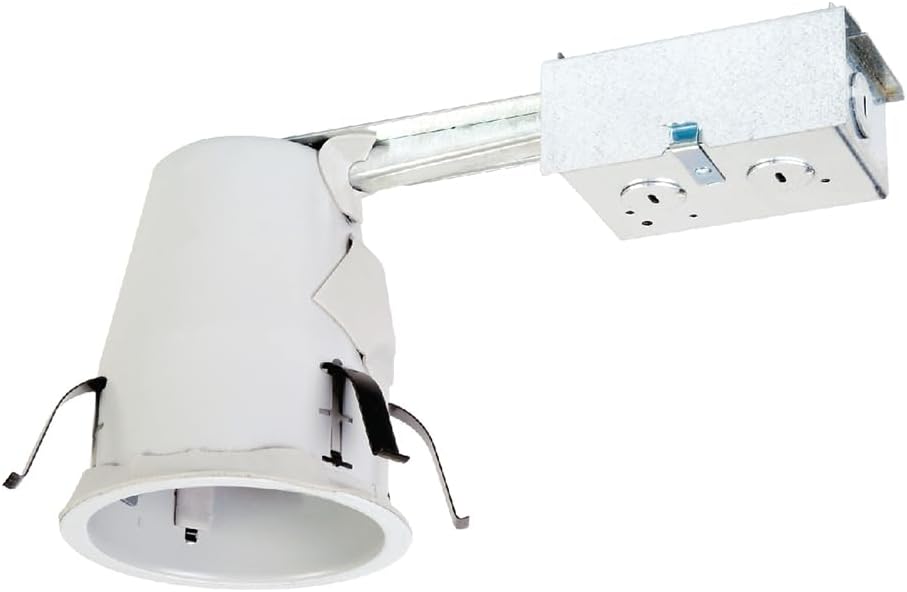

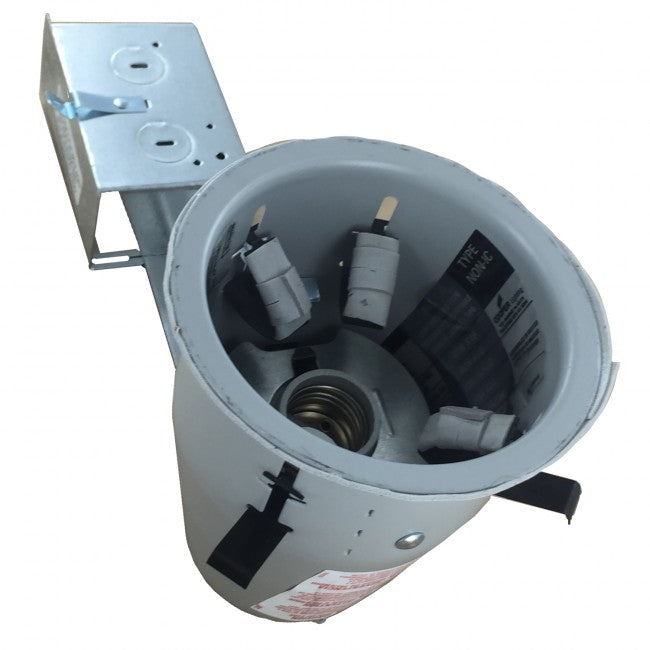

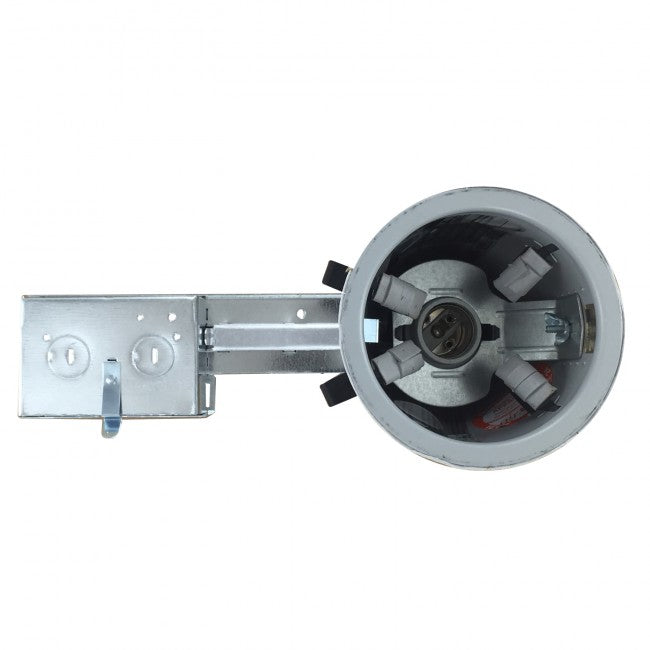

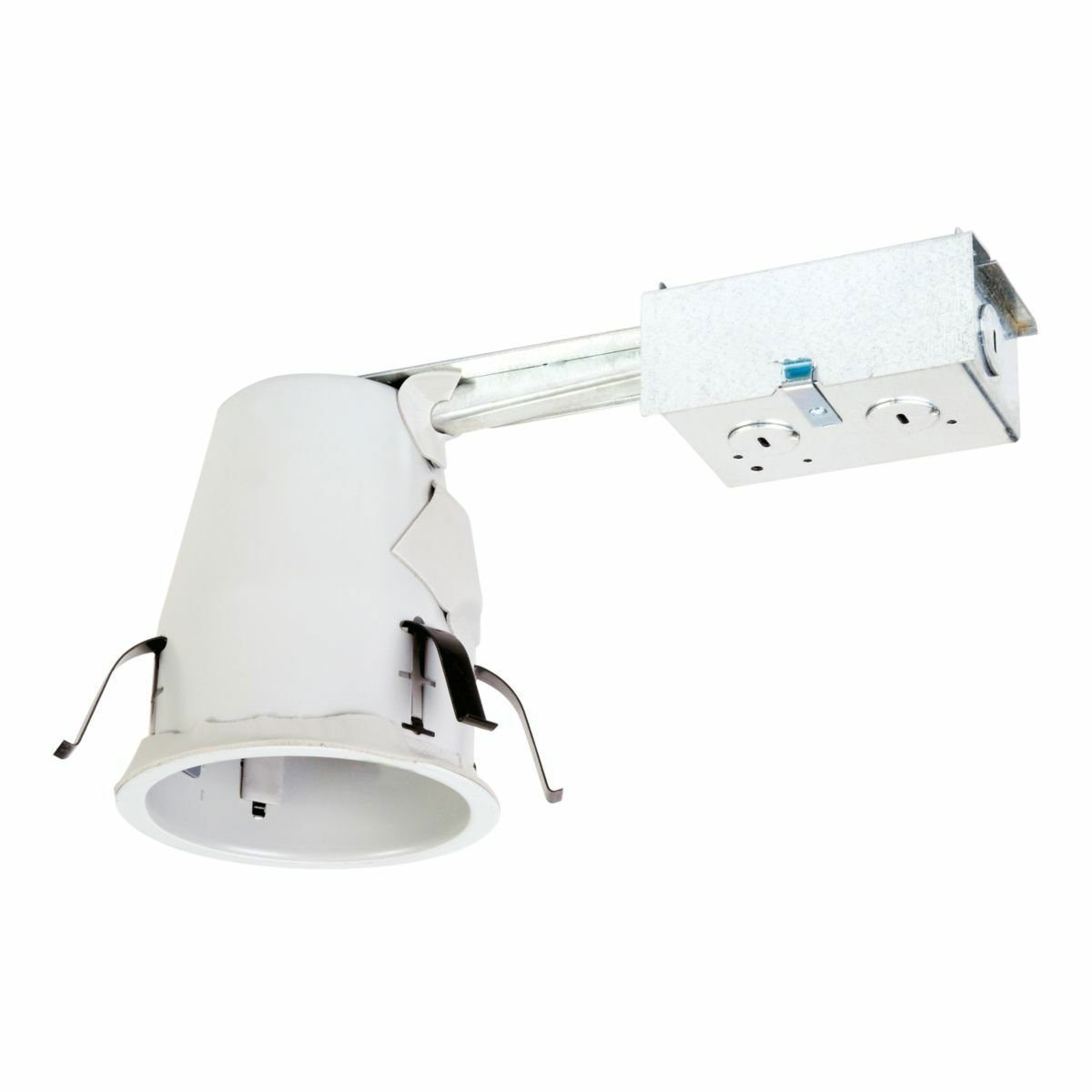

The HALO E4RTATSB 4" Remodel Recessed Housing is a compact and efficient housing optimized for EISA compliant tungsten-halogen, incandescent, CFL, and LED lamps. Suitable for residential or light commercial applications, it's designed for insulated and non-insulated ceilings with airtight construction. It may be retrofit with compatible HALO LED lighting systems.
- For use in insulated ceilings
- Remodel housing design installs from below the finished ceiling
- Remodel springs accommodate 1/2" and 5/8" ceiling material
Product Highlights
This air-tite housing features a flange gasket and quick connect wiring tray. The socket bracket adjusts to various trim styles.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: E4RTATSB
-
Country of Origin: Mexico
Technical Specifications
-
Color: Silver
-
Style: Compact
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: E4RTATSB
-
Size: 4 Inch
-
Item Model Number: E4RTATSB
-
Part Number: E4RTATSB
-
Type: 4" E4 Housing
-
Brand: Halo
-
Voltage: 120 Volt
-
Wattage: 60 Watt
-
Amperage: 0.5 Amp
-
Diameter: 4 Inch
-
Material: Steel
-
Lamp Type: Halogen
-
Sub Brand: E4RTATSB Series
-
Applications: Lighting
-
Mounting Type: Recessed
-
Lamp Wattage: 60 W
-
Suitable For Use With: HALO® LED Lighting System and Trim
-
Housing Material: Steel
-
Ceiling Opening: 4-1/4 in
-
Insulation Type: Non-Insulated
-
Standard & Approvals: UL, cUL Listed, ASTM E283, EISA, RoHS, Compliant
-
Application: Residential, Commercial, Damp Location and Wet Location Application
-
Manufacturer: Cooper Lighting Solutions
-
Includes: Quick Connect™ Wiring Tray With Push-in Wire Nut
-
Features & Benefits: Airtite exclusive housing gasket
Remodel housing design installs from below the finished ceiling
Exclusive remodel speed clamps securely lock from 3/8 to 2 in ceilings
Hinged junction box with Slide-N-Side™
Socket bracket adjusts lamp to various trim styles and designs
E26 screw base housing
Die-formed cold rolled steel material
-
Catalog Number: E4RTATSB
-
Country of Origin: Mexico
-
Made in USA: No
-
Special Features: For use in insulated ceilings
-
Standard: Wet Locations;Damp Locations;cULus Listed;Airtite
-
Item Type: 4" E4 Housing
-
Voltage Rating: 120-Volts
-
Lamp Type/Designation: Tungsten-Halogen, CFL, LED, Incandescent
-
Manufacturer Name: Cooper Lighting
-
Dimmable: No
-
Construction: Die Formed Cold Rolled Steel
-
Item Name: Recessed Remodel Housing
-
Component Type: Housing
-
Trim Size: 4 Inch
-
Lamp Included: No
-
Ceiling Type: Non-Insulated, Air-Tight
-
Lens: N/A
-
Trade Size: 4IN
-
Description: CPL E4RTATSB 4" NON-IC AIR-TITEREMODEL HSG W/SOCKET BRACKET 120V
-
Socket Type: E26
-
Product Name: Incandescent Recessed Housing
-
Amperage Rating: .5 A
-
Stripped Catalog Number: E4RTATSB
-
Catalog Description (MFR): 4" NON-IC Air-Tite, Remodel, 120V w/ Socket Bracket
-
Series: E4RTATSB Series
-
For use in: Insulated ceilings
-
Design: Remodel housing design installs from below the finished ceiling
-
Remodel springs accommodate: 1/2" and 5/8" ceiling material
-
Feature: Air-Tite housing flange gasket
-
Testing: Air-Tite tested per ASTM E 283
-
Wiring: Quick connect wiring tray with push-in sire nuts included
-
Junction Box: Hinged junction box with Slide-N-Side
-
Socket bracket: Adjusts lamp to various trim styles and designs
-
Housing: Die-formed CRS. For installation from below the finished ceiling. Air-Tite gasket pre-installed on remodel flange
-
Remodel Clips: Four remodel clips secure housing and accommodates 1/2” and 5/8” ceiling materials
-
Thermal Protector: Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
-
Trims: Halo Fit-All concept offers multiple trim options in a variety of design styles, and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types
-
Compliance: cULus Listed 1598 Luminaire
cULus Damp Location Listed
cULus Listed for Wet Location, covered ceiling, with select trims
RoHS Compliant
Air-Tite code compliant. Certified under ASTM E283; not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential
-
Line Voltage: 120V
-
Air-Tite: Yes
-
UL Listed: Yes
