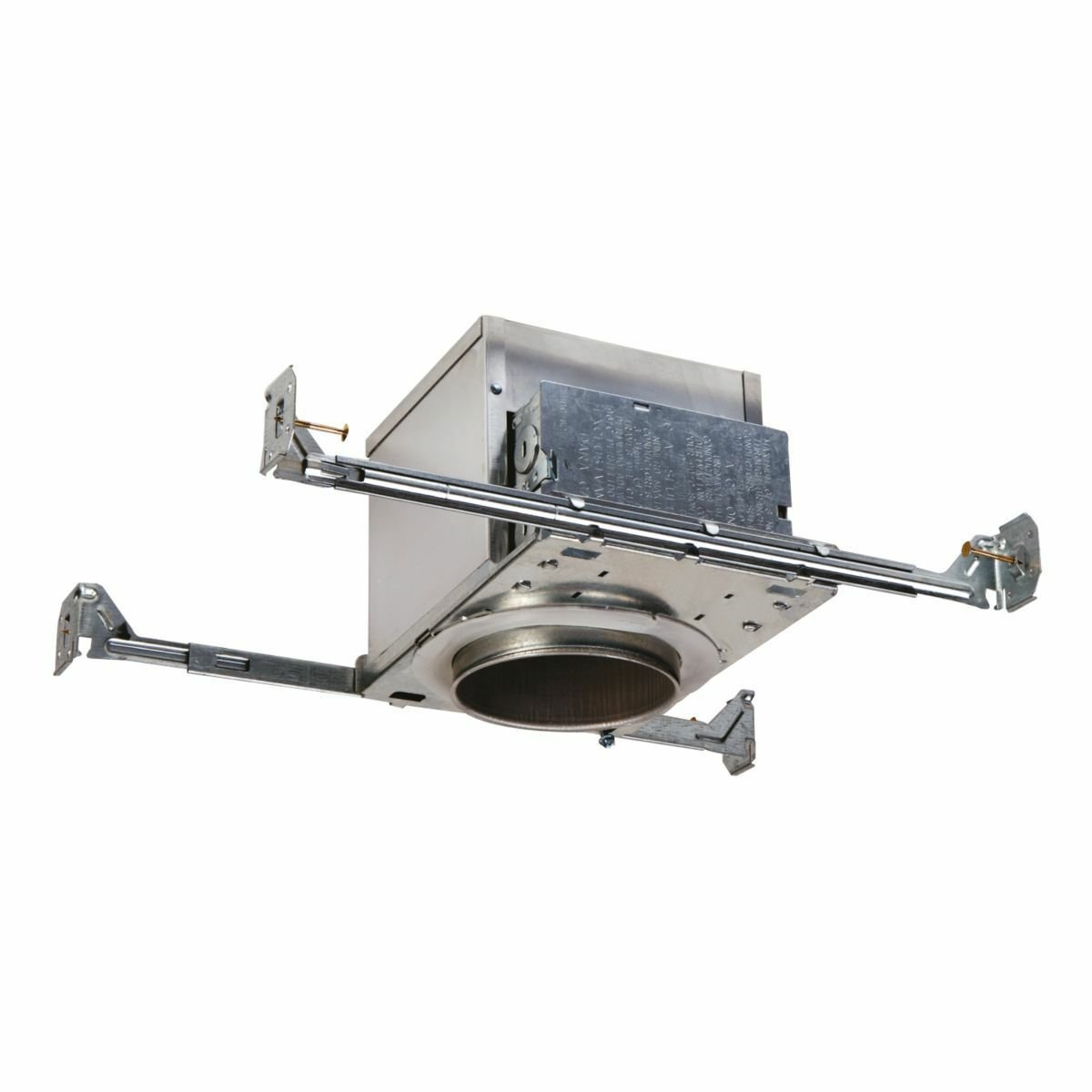

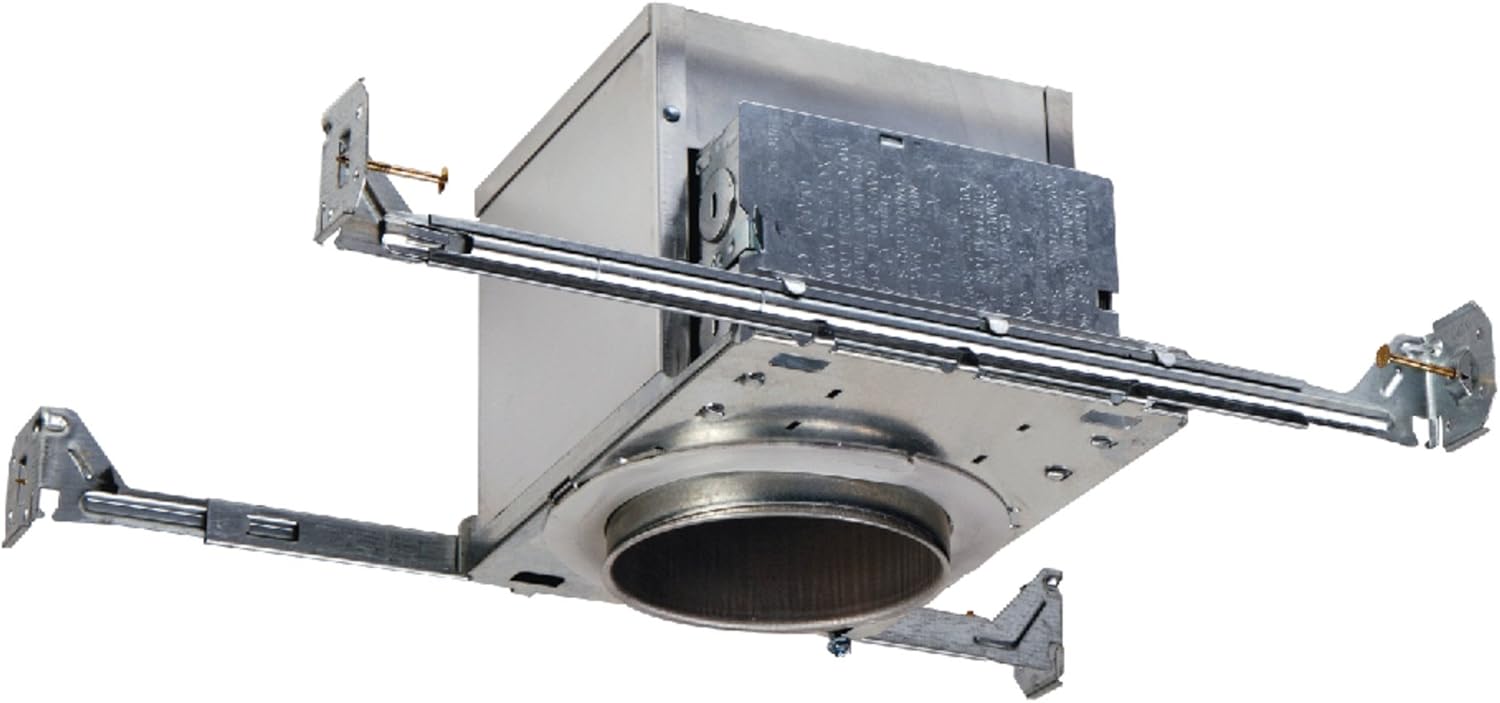

Halo E4ICATSB E26 4 in. Aluminum Recessed Lighting Housing for New Construction Ceiling, IC, Air-Tite, Adjustable Socket Bracket

Product Description

The HALO E4ICATSB is an E26 4 in. aluminum recessed lighting housing designed for new construction ceilings. It features an IC (Insulation Contact) rating and is air-tight. The housing includes an adjustable socket bracket for versatile lamp positioning and is suitable for residential or light commercial applications.

• Aluminum Recessed Lighting Housing
• Suitable for New Construction Ceiling
• IC (Insulation Contact) Rated

Product Highlights

This Halo recessed lighting housing is ideal for new construction, offering air-tight and insulation contact safe design with an adjustable socket.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: E4ICATSB
• Country of Origin: Mexico

Technical Specifications

• Color: Aluminum
• Style: Adjustable
• Material: Aluminum
• Installation Type: Nail-On
• Batteries Included?: No
• Batteries Required?: No
• Size: 4"
• Lamp Type: CFL/Halogen/Incandescent/LED Lamp
• Series: E4
• Voltage: 120 VAC
• Lamp Wattage: 90 W
• Mounting: Recessed
• Housing Material: Die Cast Aluminum
• Ceiling Opening: 4-1/2 in
• Brand: Halo
• Trade Size: 4IN
• Sub Brand: E4ICATSB Series
• Type: 4" E4 Housing
• Wattage: 50 Watt
• Standard: Wet Locations;Damp Locations;cULus Listed;Airtite
• Application: For use in insulated ceilings
• Socket Type: E26
• Product Name: Incandescent Recessed Downlight Housing
• Voltage Rating: 120-Volts
• Amperage Rating: .417 A
• Special Features: For use in insulated ceilings
• Stripped Catalog Number: E4ICATSB
• Catalog Description (MFR): 4" IC, Air-Tite, New Construction Housing, 120V w/ Socket Bracket
• Invoice Description (MFR): 4INAPERTURE ADJUSTABLE SOCKET NEW CONSTR
• Amperage: 0.417 Amp
• Applications: Lighting
• Mounting Type: Recessed
• Insulation Type: Insulated
• Suitable For Use With: HALO® Insulated Ceiling/Trim
• Diameter: 4 in
• Includes: Adjustable Socket Bracket
• Dimmable: No
• Construction: Aluminum
• Item Name: Recessed New Construction Housing
• Standards: cULus 1598, RoHS Compliant
• Component Type: Housing
• Trim Size: 4 Inch
• Lamp Included: No
• Ceiling Type: Insulated, Air-Tight
• Suitable For: Residential or light commercial applications
• Listing: cULus listed and RoHS compliant
• For use in: Insulated ceilings
• Feature: Air-Tite exclusive housing gasket
• Testing: Air-Tite tested per ASTM E 283
• Hanger bars: All-Nail bar hangers with preinstalled nail and integral T-grid clip
• Hanger bars feature: q-channel interlocking hanger bars
• Shortening: Hanger bars feature Pass-N-Thru tool-less shortening
• Wiring: Quick connect push-in wire nuts included
• Junction box: Hinged junction box with Slide-N-Side
• Socket bracket: Socket bracket adjusts lamp to various trim styles and designs
• Pack Size: 1
• Item Model Number: E4ICATSB
• Part Number: E4ICATSB
• Country of Origin: Mexico
• UPC: 080083751525
• Manufacturer Name: Cooper Lighting
• Manufacturer Part Number: E4ICATSB
• Country Of Origin: Mexico
• Energy Star Flag: No
