Product Description

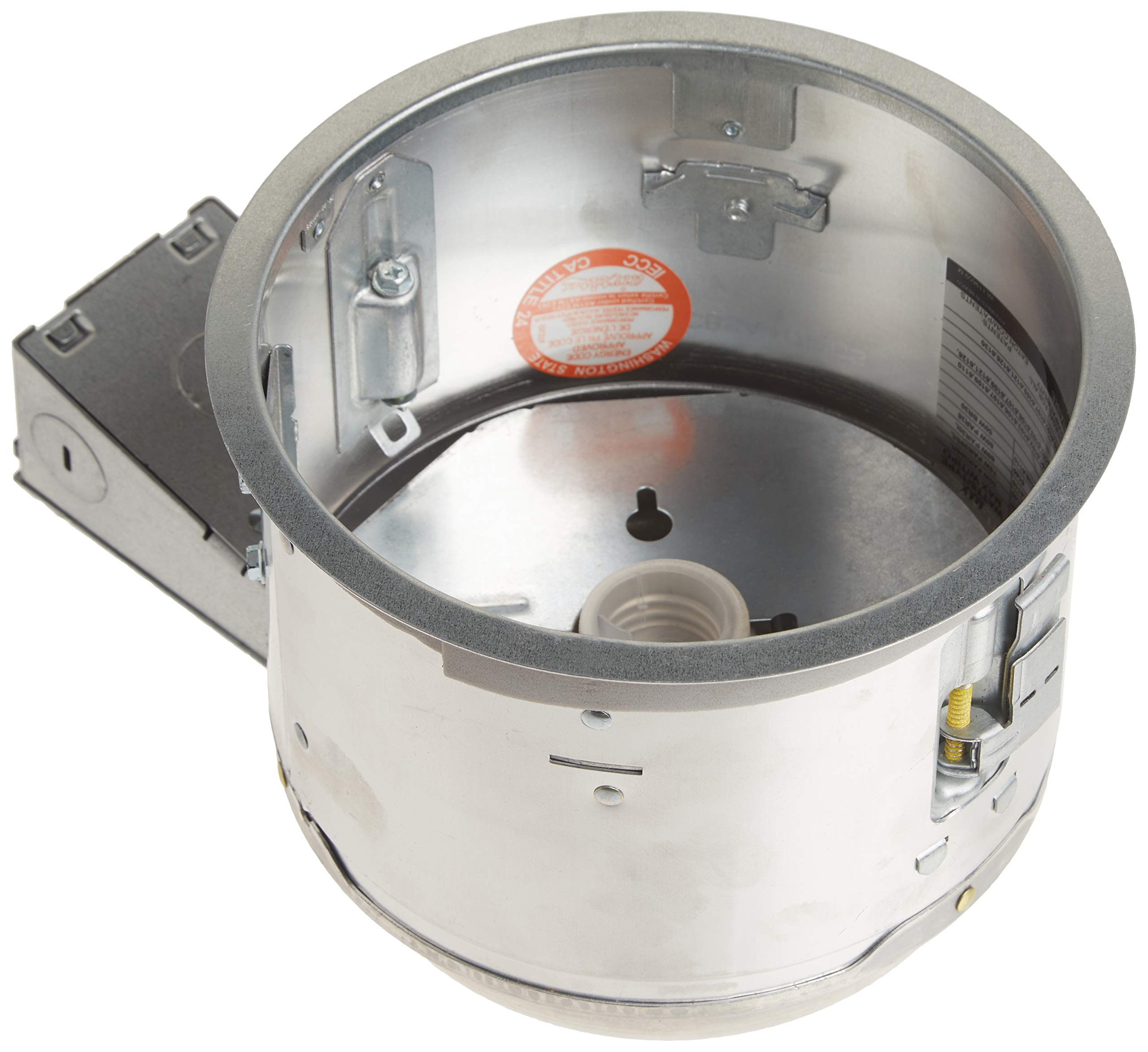

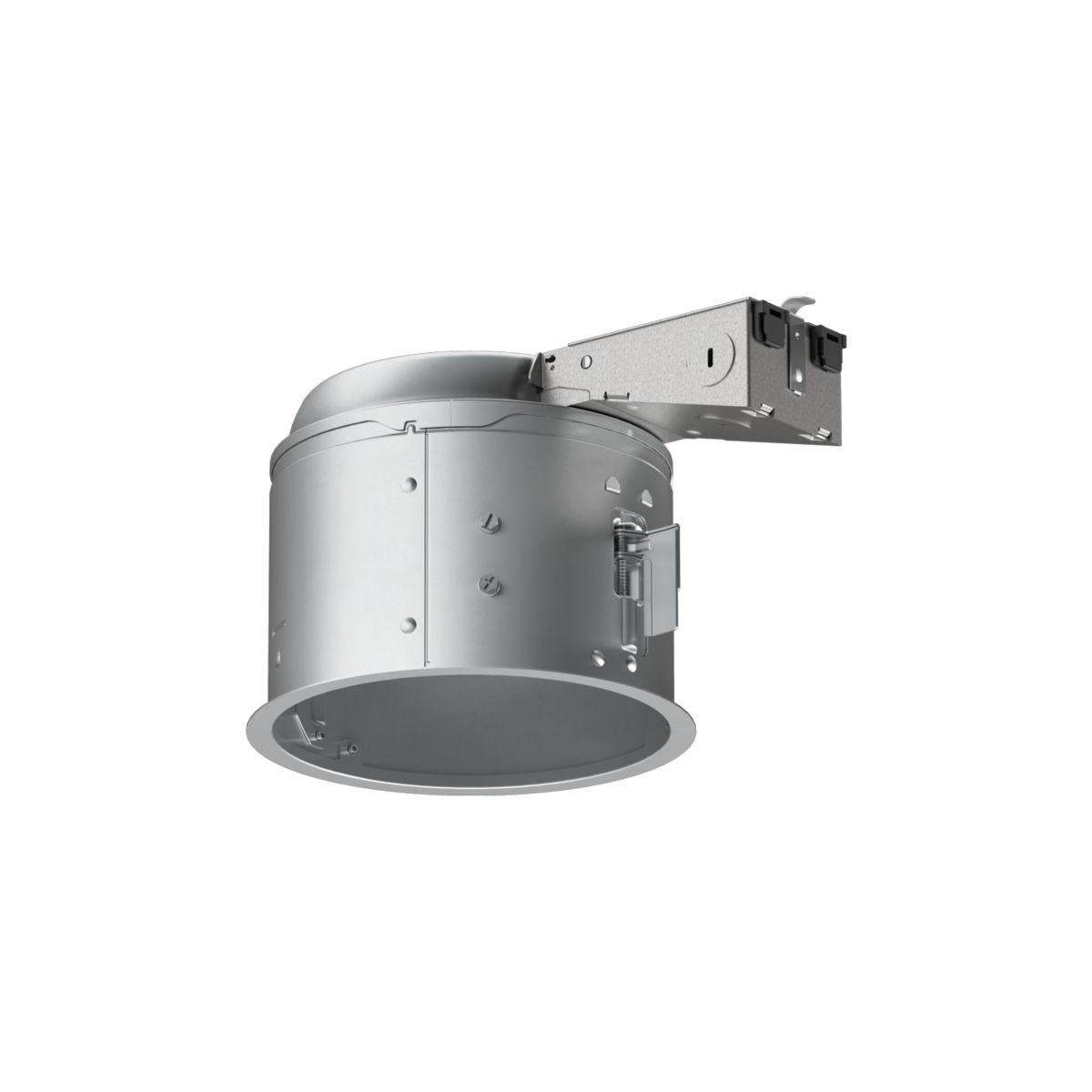

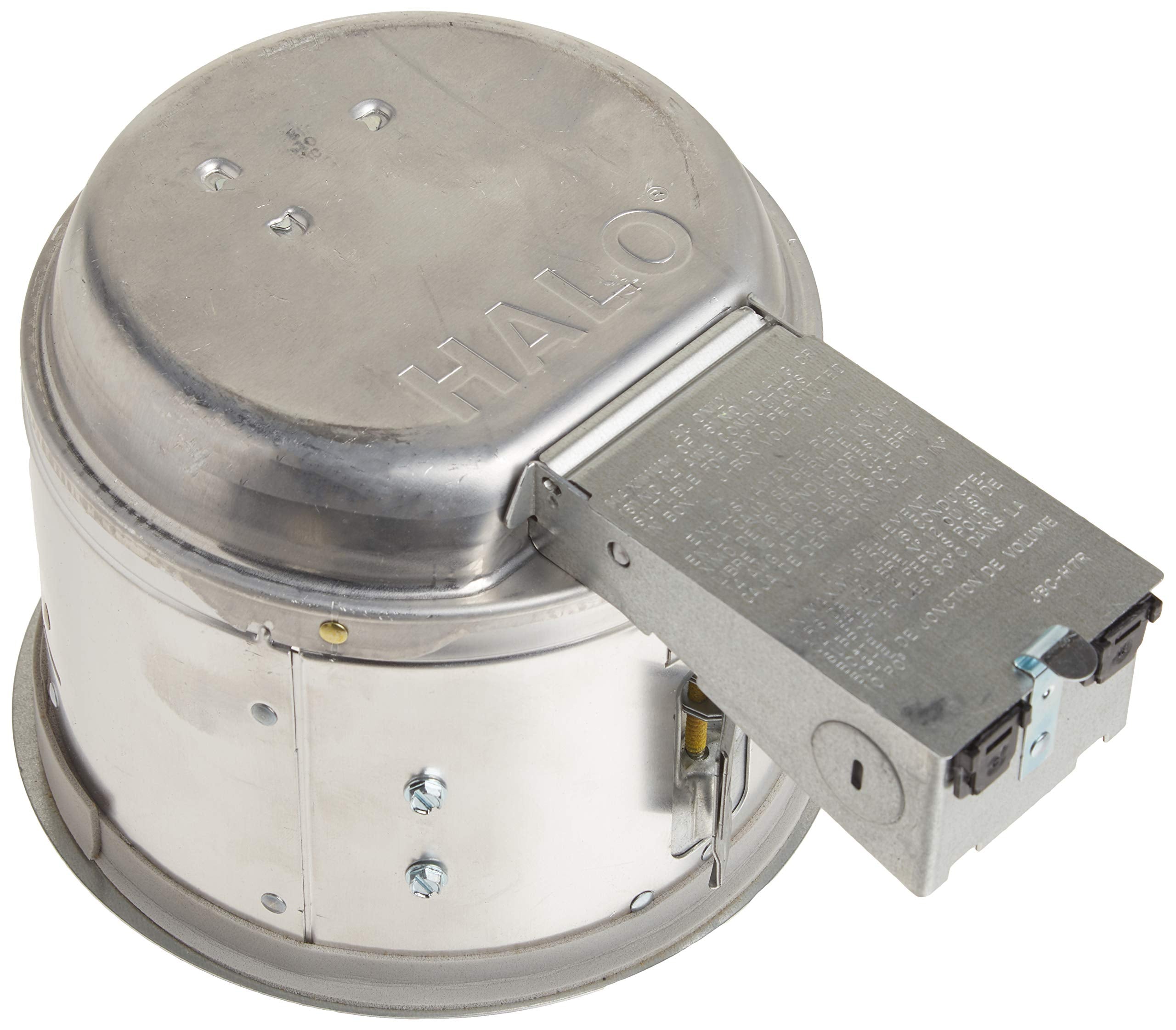

The HALO E27RICAT is a 6" IC, Air-Tite, shallow remodel housing operating at 120V. This recessed housing is suitable for residential or light commercial shallow ceiling applications and is optimized for EISA compliant tungsten-halogen, incandescent, CFL, and LED lamps. Designed for insulated and non-insulated ceilings with air-tight construction.
- Suitable for CFL and LED lamps
- Airtight design
- Remodel housing design installs from below the finished ceiling
Product Highlights
Ideal for insulated ceilings and non-insulated ceilings with Air-Tite housing flange gasket. Meets cULus, RoHS and IC standards.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: E27RICAT
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: E27RICAT
-
Manufacturer: Cooper Lighting Solutions
-
Brand: Halo
-
Sub Brand: E27RICAT Series
-
Country of Origin: Mexico
-
Made in USA: No
-
Application: Residential, Commercial, Damp Location and Wet Location Application
-
Lamp Type: Halogen, Incandescent, LED, CFL (Not Included)
-
Special Features: For use in shallow insulated ceilings
-
Standard: Wet Locations;Damp Locations;cULus Listed;Airtite
-
UPC: 080083737482
-
GTIN: 00080083737482
-
Item Type: 6" E7 Housing
-
Voltage Rating: 120 V
-
Type: Shallow Recessed Housing
-
Air Rating: Airtight
-
Nominal Aperture Size: 6 Inch
-
Aperture Shape: Round
-
Ceiling Type: Insulated, Air-Tight
-
Ceiling Opening Size: 6-1/4 Inch
-
Installation: Remodel
-
Height: 5-11/16 Inch
-
Housing Material: Die-Formed Aluminum
-
Junction Box Type: Hinged, (4) 1/2 Inch Conduit Pryout, (3) Slide-N-Side Non-Metallic Wire Trap
-
Approval: UL (Canada and US)
-
RoHS Compliant: True
-
Socket Type: E26 Medium Screw-In
-
Mounting: Recessed
-
Lamp Wattage: 90 Watt
-
Includes: Quick Connect™ Wiring Tray With Push-in Wire Nut
-
Dimmable: No
-
Construction: Aluminum
-
Amperage Rating: 0.75 Amp
-
Standards: cULus Certified, RoHS Compliant
-
Component Type: Housing
-
Trim Size: 6 Inch
-
Lamp Type/Designation: Halogen/Incandescent/CFL/LED
-
Lamp Included: No
-
UNSPSC: 39111505
-
Manufacturer Part Number: E27RICAT
-
Manufacturer Name: Cooper Lighting
-
Series: E7
-
Number of Lamps: 1
-
Insulation Type: Insulated
-
Mounting Type: Ceiling Mount
-
For Use With: Halo Insulated Ceiling/Trim
-
Diameter: 6 in
-
Width: 10-1/2 in
-
Depth: 7 in
-
Model / MPN: E27RICAT
-
Number of Items: 1.0
-
Product Group: Home Improvement
-
Product Type: HOME_LIGHTING_AND_LAMPS
-
IGCC: 3963
-
Lens: N/A
-
Family group: LIGHTING FIXTURES
-
WES Product code: 3072031979
-
Suitable For Use With: HALO® LED Lighting System and Trim
-
For use in: Shallow insulated ceilings
-
Feature: Air-Tite exclusive housing gasket
-
Testing: Air-Tite tested per ASTM E 283
-
Hanger bars: All-Nail bar hangers with preinstalled nail and integral T-grid clip
-
Hanger bar design: q-channel interlocking hanger bars
-
Hanger bar adjustment: Hanger bars feature Pass-N-Thru tool-less shortening
-
Wiring: Quick connect push-in wire nuts included
-

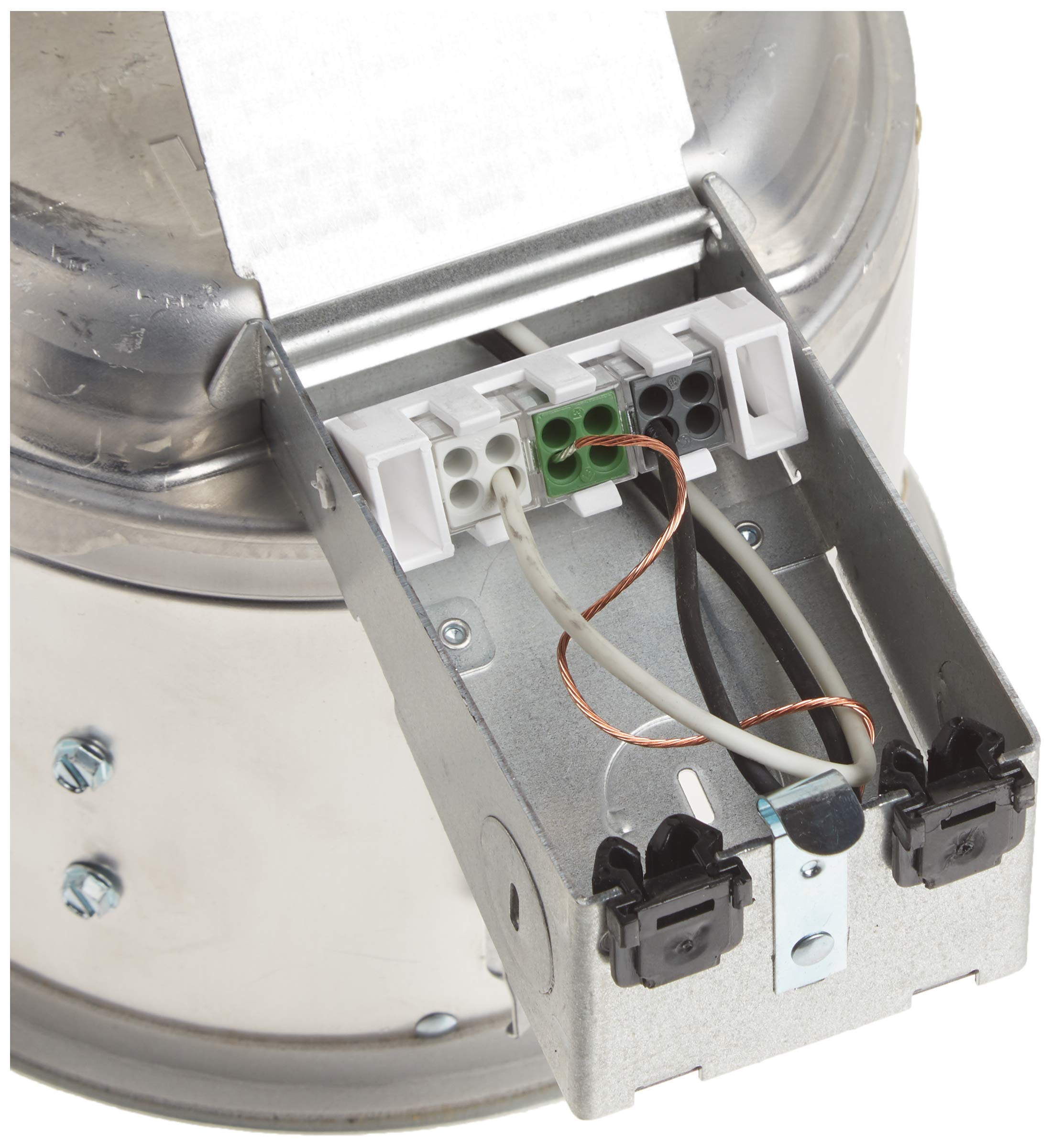

Junction box: Hinged junction box with Slide-N-Side
-
Socket bracket: Socket bracket adjusts lamp to various trim styles and designs
-
Bulb Base: Medium (E26)
-
Bulb Included: No
-
Voltage: 120 volts
-
Housing Type: New Construction Housing
-
Light Direction: Down Lighting
-
Material: Aluminum
-
Number of Light Source(s): 1
-
Shallow Ceiling Compatible: Yes
-
Power Source: Hardwired
-
Voltage Type: Line Voltage (110-120V)
-
Approved for Commercial Use: Yes
-
Certifications: UL
-
Collection: Halo
-
IC Rating: IC
-
Location Rating: Dry Location
-
Airtight: Yes
