Product Description

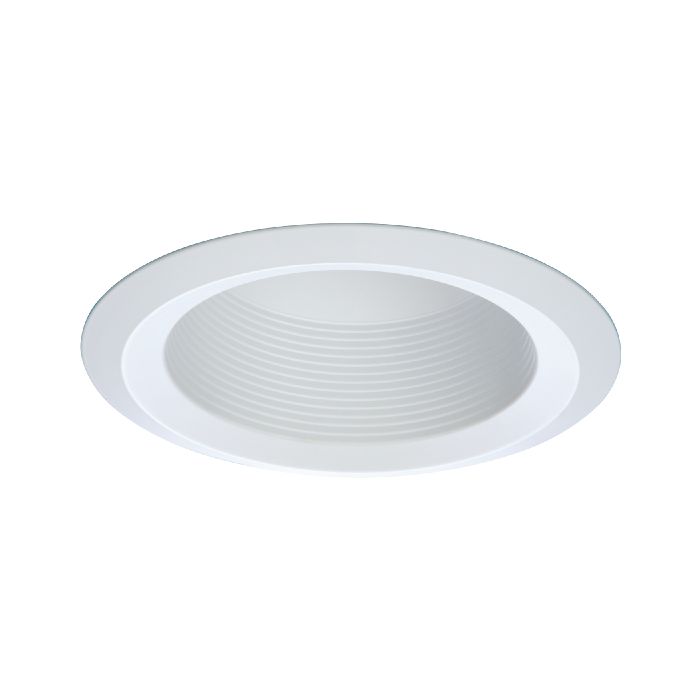

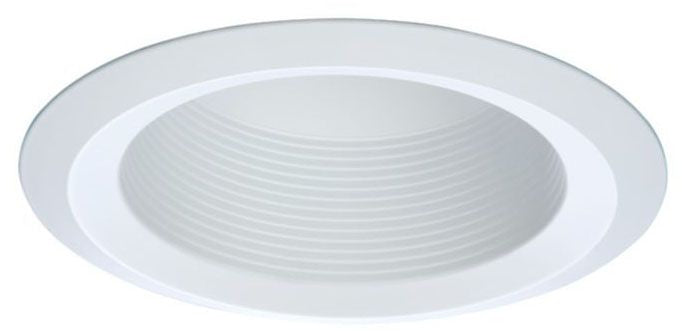

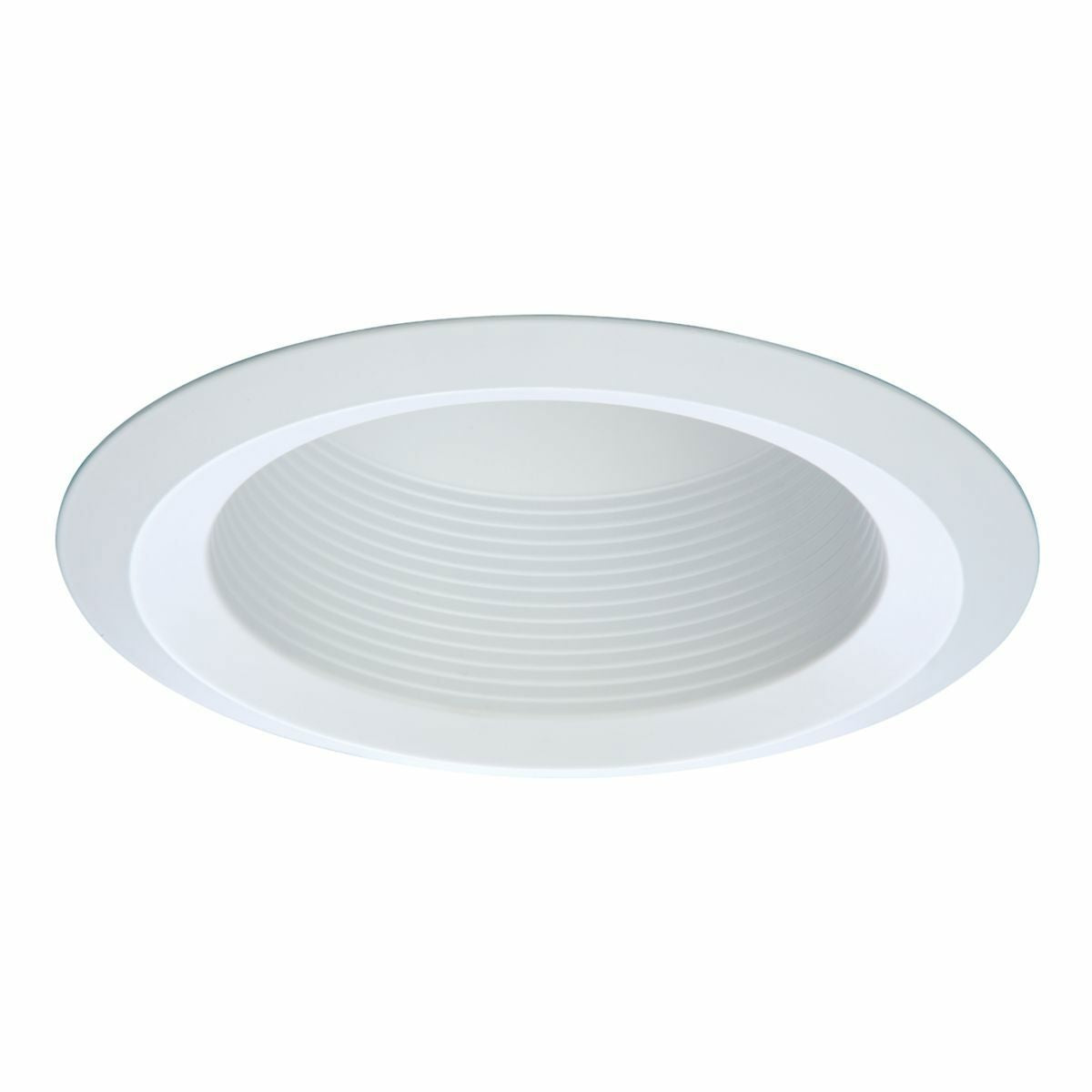

The Halo 6125WB baffle trim is a full cone round trim designed for recessed downlighting applications. With an inside diameter of 6 inches and an outside diameter of 7-3/4 inches, this trim is compatible with CFL, halogen, incandescent, and LED lamps. It is suitable for use with BR30, BR40, A19, PAR30, and PAR38 lamps and H7ICT and H7RICT housings.
- Full cone baffle for BR30, BR40, A19, PAR30 and PAR38 lamps
- Torsion spring retention
- Self-flanged trim ring sized to hide gaps caused by construction tolerances
Product Highlights
This Halo baffle trim features torsion spring retention and a self-flanged trim ring for easy, air-tight installation.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: 6125WB
-
Country of Origin: China
Technical Specifications
-
Type: Full Cone Round
-
Inside Diameter: 6 in
-
Outside Diameter: 7-3/4 in
-
Lamp Type: CFL/Halogen/Incandescent/LED
-
Mounting Type: Ceiling, Recessed
-
Suitable For Use With: BR30, BR40, A19, PAR30, PAR38 Lamp, H7ICT and H7RICT Housing
-
Series: 6125
-
Depth: 5-3/8 Inch
-
Width: 7.75 in
-
Height: 6-5/8 Inch
-
Material: Metal
-
Brand: Halo
-
Fixture Type: Trim
-
Applications: Lighting
-
Standard & Approvals: cULus Listed, RoHS, ARRA, Buy American Act Compliant
-
Application: Lighting Applications
-
Diameter: 6 Inch
-
Lamp Type/Designation: 43 Watt A19, 75 Watt PAR30S, 75 Watt PAR30L, 65 Watt PAR38, 65 Watt BR30, 90 Watt BR40
-
Trim Size: 6 Inch
-
Listing: cULus
