Product Description

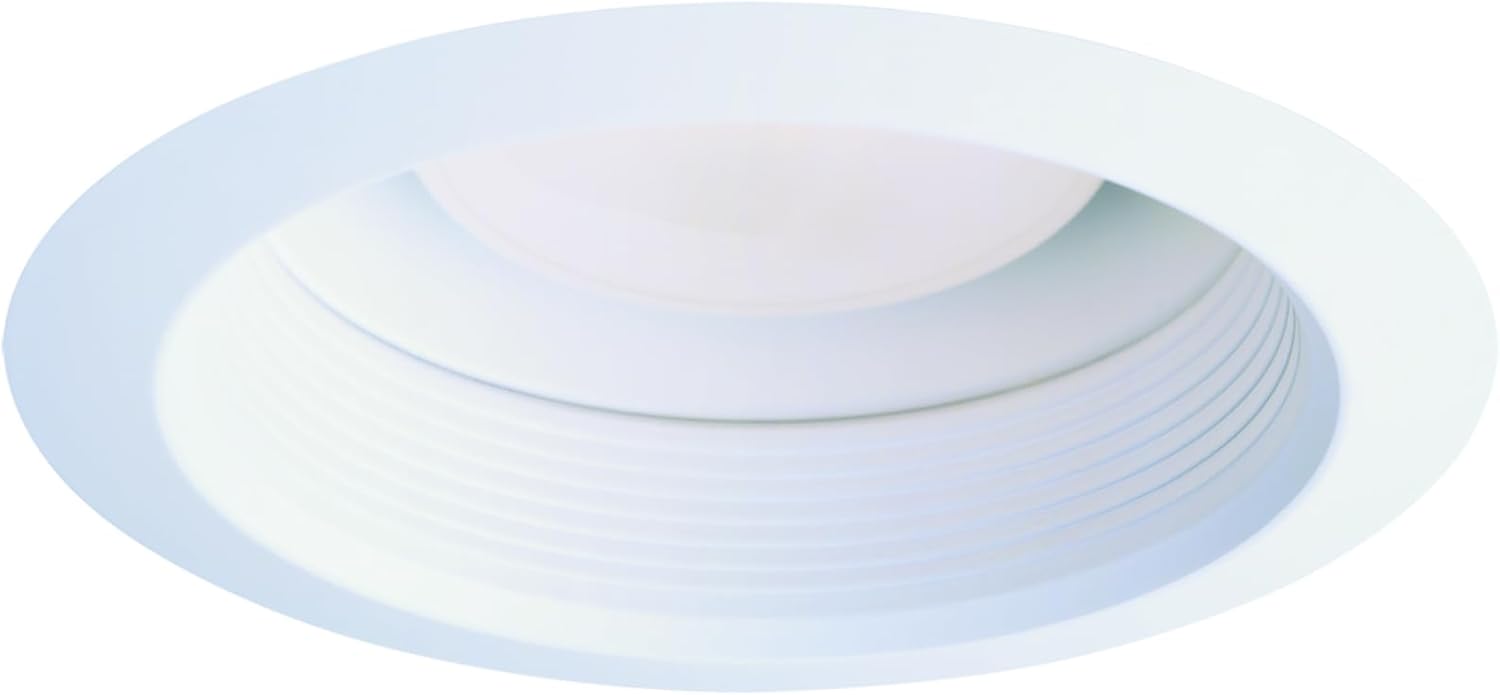

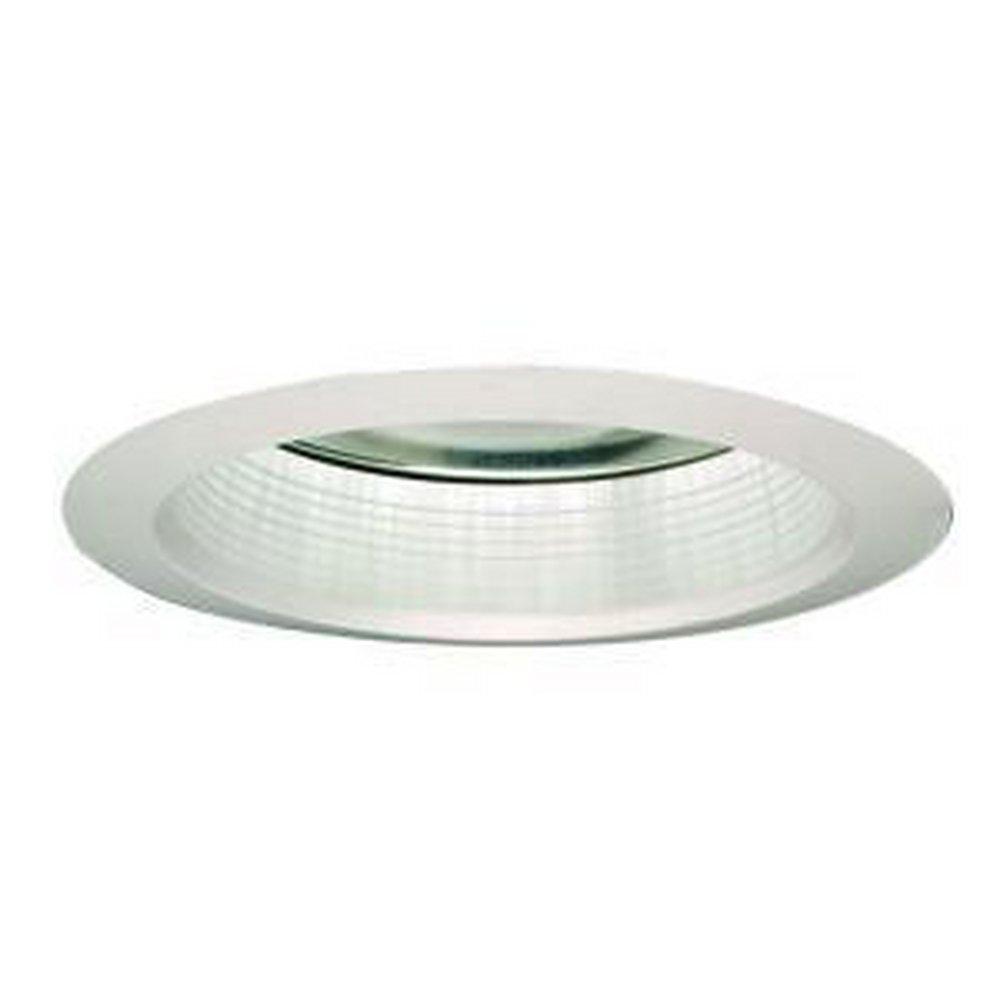

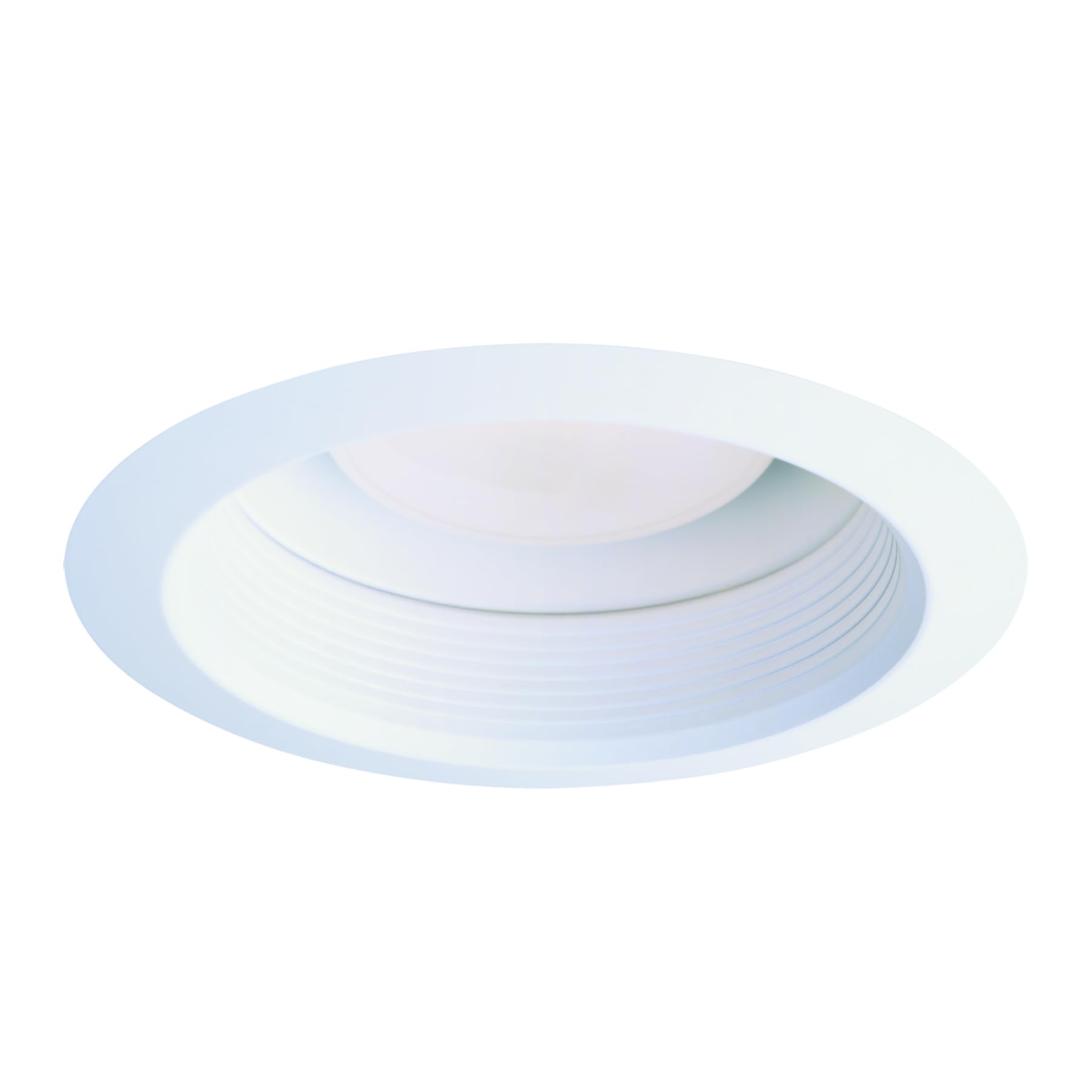

The Halo 30WAT is a 6 in. recessed ceiling light fixture trim kit with an air-tite baffle and reflector. Designed for recessed downlighting, this trim kit is compatible with Halo and other housings. It features a self-flanged socket supporting trim with torsion spring retention.
- Air-Tite design
- White baffle reduces glare
- Self-flanged socket supporting trim with torsion spring retention
Product Highlights
This trim kit can be used as a general down light, as an accent light, or for wall wash-lighting.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: 30WAT
-
Country of Origin: China
Technical Specifications
-
Color: White
-
Style: Modern
-
Finish: White
-
Material: Metal
-
Unit Count: 1.0 Count
-
Finish Type: White
-
Shade Color: White
-
Fixture Type: Non Removable
-
Mounting Type: Ceiling Mount
-
Shade Material: Metal
-
Light Source Type: LED
-
Light fixture form: Recessed
-
Batteries Required?: No
-
Included Components: 30WAT
-
Size: 7.425 IN Length 7.425 IN Width 5.125 IN Height
-
Type: Baffle, Self-Flange
-
Diameter: 6 Inch
-
Mounting: Recessed
-
Standard: UL Listed;cULus Listed;Airtite
-
Sub Brand: 30 Super Trim AIR-TITE® Reflector
-
Brand Name: Cooper Halo
-
Application: Lighting
-
Manufacturer: Cooper Lighting Solutions
-
Special Features: Self-flanged socket supporting trim with torsion spring retention
-
Depth: 7-3/8 in
-
Suitable For Use With: H7 Downlight Fixture, E7ICAT and E7RICAT Housing
-
Outside Diameter: 7-1/4 in
-
Width: 7-3/8 in
-
Height: 5 in
-
Inside Diameter: 6 in
-
Vendor SKU: 30WAT
-
UNSPSC: 39111827
-
UPC: 662400603320
-
Standard & Approvals: UL, cULus Listed, RoHS Compliant
-
Features & Benefits: Self flanged socket supporting trim with torsion spring retention
30 super trim AIR-TITE reflector
For H7 downlight housing
With white baffle and white reflector
-
Series: H7 30
-
Lamp Type: Incandescent/Halogen
-
Catalog Number: 30WAT
-
Country of Origin: China
-
Made in USA: No
-
Nominal Aperture Size: 6 Inch
-
Aperture Shape: Round
-
Incandescent Lamp Type: A19 40 Watt, PAR30S 75 Watt, PAR30L 75 Watt, PAR38 65 Watt, BR30 65 Watt, BR40 90 Watt
-
Ceiling Type: Insulated
-
Approval: UL
-
Used On: E7ICAT/E7RICAT/E7ICATNB Recessed Downlight Housing
-
Model / MPN: 30WAT
-
Number of Items: 1.0
-
MPN: 30WAT
-
Product Type: LIGHT_FIXTURE
-
Product Group: Home Improvement
-
Aperture: 6 Inch
-
Recessed Trim: Super Trim Baffle
-
Product Weight: 0.44
-
ARRA: No
-
Sensor Type: Light
