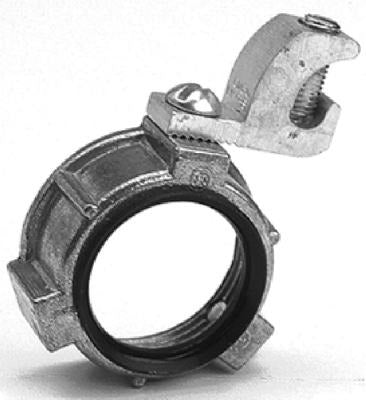

Halex/scott Fetzer 99524 Grounding Bushing 1-1/4 Inch 10-pack

Product Description

The HALEX/SCOTT FETZER 99524 is a 1-1/4 inch insulated metallic grounding bushing designed to protect wire and cable at the end of threaded conduit or a conduit connector. The bushing provides a smooth, well-rounded bearing surface that prevents insulation damage where conductors exit conduit terminations, as required by the NEC. Constructed from die cast zinc with a thermoplastic liner rated to 105 degrees C, it includes a tin-plated, open-type lay-in lug that is dual rated for copper and aluminum conductors. Licensed electricians install this fitting during conduit termination work on metallic raceway systems. This pack contains 10 bushings.

This grounding bushing is used in residential and commercial electrical installations wherever 1-1/4 inch threaded metallic conduit terminates at a panel, junction box, or conduit connector. The lay-in lug design simplifies attachment of the grounding conductor without threading the wire through a closed lug. It is a standard fitting for EMT, IMC, and rigid metal conduit systems where the NEC requires an insulated grounding bushing at the termination point.

Key Features

• 1-1/4 inch trade size fits threaded metallic conduit and conduit connectors
• Lay-in type tin-plated lug allows fast, tool-assisted attachment of a grounding conductor
• Dual rated for copper and aluminum conductors (CU-AL)
• Thermoplastic liner rated to 105 degrees C protects conductor insulation
• Die cast zinc body provides durable, corrosion-resistant construction
• UL and CSA listed for compliance with NEC grounding requirements

Compatibility

Designed as an OEM-style replacement fitting for use with 1-1/4 inch threaded metallic conduit systems including rigid metal conduit, IMC, and standard threaded conduit connectors in NEC-compliant installations.

Installation Notes

Installation is performed by a licensed electrician. De-energize the circuit and verify the panel or equipment is locked out before beginning conduit termination work. Thread the bushing onto the conduit end and secure the grounding conductor in the lay-in lug per NEC Article 250 requirements. Follow applicable NEC and local code provisions for grounding conductor sizing and termination torque as specified by the equipment manufacturer.
