Halex/scott Fetzer 91627 3/4 Inch Liquid Tight Connector 15 Pack

Product Description

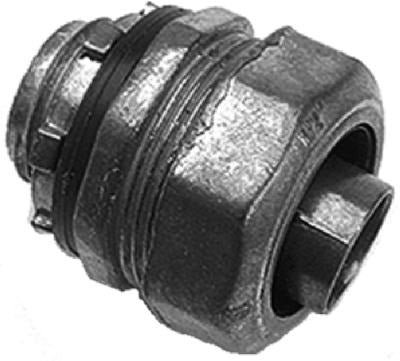

The HALEX/SCOTT FETZER 91627 is a 3/4 inch multi-piece liquid tight straight connector made from die cast zinc. It is designed to terminate and seal liquid tight flexible metal conduit to an oil tight, liquid tight, or rain tight box or enclosure. The connector ships in a package of 15 units and includes a sealing washer and locknut with each piece. Electricians and electrical contractors install this connector in wet, damp, or oily environments where a secure, sealed conduit termination is required.

This connector is suited for use in commercial and industrial electrical installations where liquid tight flexible metal conduit must terminate at a box or enclosure with either a tapered thread female entry or an unthreaded knockout. The included sealing washer and locknut allow the connector to seat properly against either entry type, making it a versatile choice for panel terminations, motor connections, and equipment enclosures exposed to moisture or contaminants.

Key Features

• 3/4 inch trade size straight connector for liquid tight flexible metal conduit
• Die cast zinc construction for durability in wet and oily service environments
• Compatible with tapered thread female entries and unthreaded knockouts
• Includes sealing washer and locknut for a complete, sealed termination
• Multi-piece design allows straightforward field assembly
• Package of 15 units for efficient stocking on larger jobs

Compatibility

Designed for use with 3/4 inch liquid tight flexible metal conduit terminating at oil tight, liquid tight, or rain tight boxes and enclosures fitted with tapered thread female entries or unthreaded knockouts.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for liquid tight conduit fittings. De-energize all circuits and verify power is off before making conduit connections at any enclosure. Ensure the sealing washer is properly seated against the enclosure wall before tightening the locknut to achieve a liquid tight seal. Do not overtighten, as die cast zinc fittings can crack if excessive force is applied.
