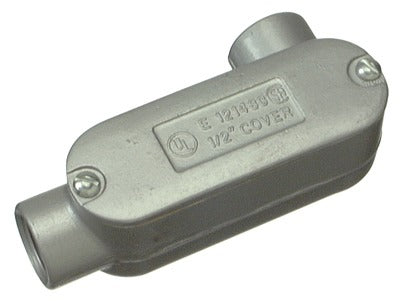

Halex/scott Fetzer 58905 Type Lr Conduit Body 1/2 Inch

Product Description

The HALEX/SCOTT FETZER 58905 is a 1/2 inch threaded oval conduit body, Type LR configuration, designed for use in rigid metal conduit and IMC raceway systems. Constructed from copper-free die cast aluminum, it ships with a cover and gasket assembled. Electricians install this fitting where two rigid or IMC conduit runs must be joined and interior access to the raceway is required for wire pulling, maintenance, splicing, or additions as permitted by the NEC. UL and CSA listed for code-compliant installations.

This conduit body is suited for commercial and industrial electrical installations where rigid or IMC conduit systems require accessible junction points. The Type LR body style allows a 90-degree change in direction with a removable cover for raceway access. It is sold in packages of five units, making it practical for contractors stocking fittings for multi-circuit or multi-run projects. The copper-free aluminum construction resists corrosion in typical indoor and covered outdoor conduit runs.

Key Features

• Type LR oval conduit body for 90-degree direction changes in conduit runs
• 1/2 inch threaded entry for use with rigid metal conduit and IMC
• Copper-free die cast aluminum construction for corrosion resistance
• Cover and gasket included and assembled at time of shipment
• UL and CSA listed for use in NEC-compliant raceway installations
• Packaged in quantities of five for contractor convenience

Compatibility

Designed as an OEM-style fitting for 1/2 inch rigid metal conduit and IMC raceway systems requiring a Type LR conduit body access point.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements for conduit body fill and raceway construction. De-energize all circuits in the raceway before opening the conduit body cover for any wire pulling, splicing, or maintenance work. Use listed conduit wrenches and thread-sealing methods appropriate for the installation environment. Verify that conductor fill inside the conduit body does not exceed NEC limits for the body size and type.
