Halex/scott Fetzer 58610 Type Lb Conduit Body 1 in Threaded

Product Description

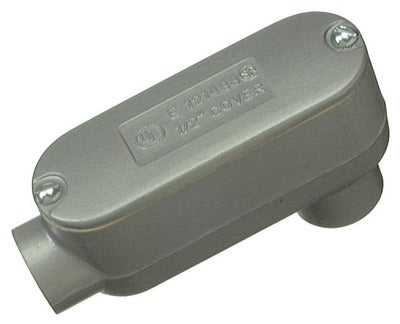

The HALEX/SCOTT FETZER 58610 is a Type LB threaded oval conduit body designed for use with 1-inch rigid metal conduit (RMC) or intermediate metal conduit (IMC). Constructed from copper-free die cast aluminum, it provides a durable, corrosion-resistant access point in conduit raceway systems. The unit ships with a cover and gasket pre-assembled, reducing installation time on the jobsite. Electricians install this fitting to facilitate wire pulling, system maintenance, circuit additions, or conductor splicing where the NEC permits. It is UL Listed and SA Listed, confirming compliance with applicable safety standards for conduit fittings in commercial and residential electrical installations.

This conduit body is suited for residential and commercial electrical rough-in and retrofit work where a 90-degree change of direction is needed in a conduit run. It joins two sections of 1-inch rigid or IMC conduit and opens the raceway for access without disturbing the full conduit run. Typical installation scenarios include service entrances, panel feeds, exposed industrial conduit runs, and interior raceway systems where wire access is periodically required. The package quantity is 3 units per package, making it practical for multi-circuit or multi-location installations.

Key Features

• Type LB configuration provides a 90-degree pull point with rear-entry access
• Copper-free die cast aluminum construction resists corrosion and meets aluminum alloy requirements for electrical fittings
• Cover and gasket included pre-assembled, ready for immediate installation
• Compatible with 1-inch threaded rigid metal conduit and IMC
• UL Listed and SA Listed for use in NEC-compliant raceway systems
• Packaged in quantities of 3 for multi-point installations

Compatibility

Designed for use with 1-inch threaded rigid metal conduit (RMC) and intermediate metal conduit (IMC) raceway systems where NEC-permitted access for wire pulling, maintenance, additions, or splicing is required.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the affected raceway before opening the conduit body or pulling conductors. Use appropriate conduit wrenches and thread sealant approved for electrical conduit fittings where required. Do not exceed the conduit body fill capacity as defined by NEC Article 314 for the conductors being installed.
