Halex/scott Fetzer 22205B Emt Compression Coupling 1/2 in 45 Pack

Product Description

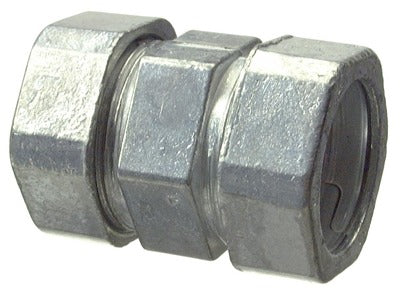

The HALEX/SCOTT FETZER 22205B is a 1/2 inch Electrical Metallic Tubing (EMT) compression coupling designed to join lengths of EMT conduit in demanding installations. Constructed from die cast zinc, this fitting delivers a rain tight, concrete tight connection suitable for damp location use. The compression-style design eliminates the need for set screws, creating a secure mechanical and electrical bond between conduit sections. Each contractor pack contains 45 couplings, making it a practical choice for commercial and residential rough-in work where volume is required. The 22205B is UL and CSA Listed, meeting the certification requirements for code-compliant electrical installations.

This coupling is intended for use in standard 1/2 inch EMT conduit systems in residential and commercial electrical applications. It is well suited for installations in damp locations, concrete encasement, and exposed outdoor runs where a rain tight fitting is required by code. Electricians use these couplings during conduit rough-in to connect straight runs of EMT at junction points. The 45-piece contractor pack is sized for larger jobs where multiple connections are made in a single pull.

Key Features

• Rain tight and concrete tight compression design for damp and embedded applications
• Die cast zinc construction for durable, corrosion-resistant performance
• 1/2 inch trade size fits standard EMT conduit
• UL and CSA Listed for code-compliant installations
• 45-piece contractor pack reduces per-unit cost on large jobs
• No set screw required — compression fit provides secure mechanical connection

Compatibility

Designed as an OEM-style compression coupling for use with standard 1/2 inch EMT conduit in residential and commercial electrical raceway systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify power is off before working on any conduit system. Ensure conduit ends are cleanly cut and reamed before seating into the coupling to achieve a proper compression seal. Do not overtighten the compression nut by tool once hand-tight resistance is felt, as over-compression can deform the fitting body.
