Halex 97525 1-1/2 in Insulating Conduit Bushing Rigid Imc

Product Description

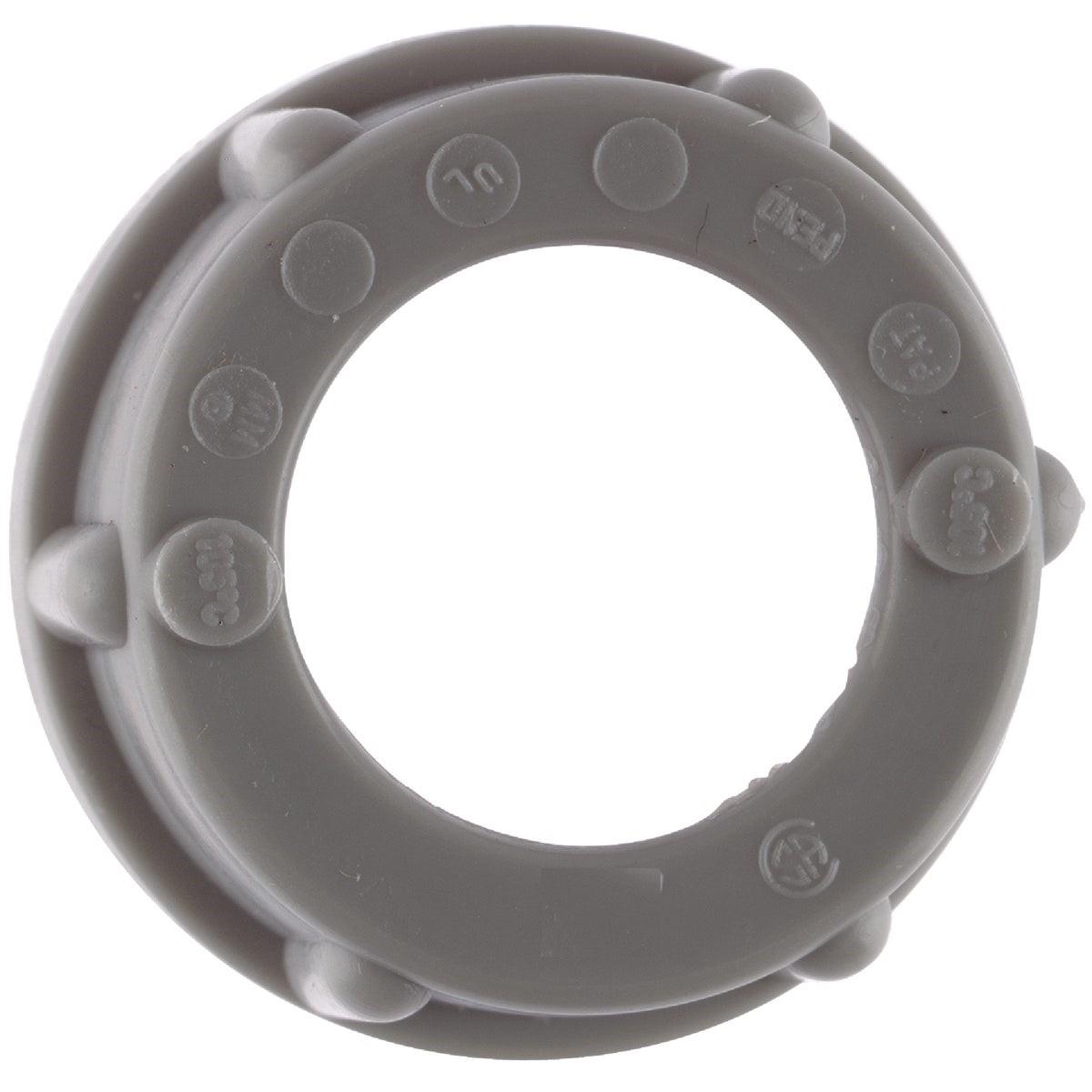

The HALEX 97525 is a 1-1/2 inch insulating conduit bushing designed to protect wire and cable insulation at the end of threaded rigid metal conduit (RMC) and intermediate metal conduit (IMC) terminations. Constructed from durable plastic, it creates a smooth, non-abrasive edge that shields conductors from the sharp threads of cut conduit ends. Rated for 105 degrees C, it handles the thermal demands of standard commercial and residential wiring installations. Electricians install this bushing as a required termination fitting wherever NEC code mandates insulated bushing protection on rigid and IMC conduit runs.

This bushing fits 1-1/2 inch threaded rigid metal conduit and IMC in both residential and commercial electrical installations. It is commonly installed at panel knockouts, enclosure entries, and junction box terminations where conductor protection at conduit ends is required. The plastic construction resists corrosion and provides electrical isolation between the metal conduit end and the conductors passing through it. It is a standard component in any conduit termination workflow where code-compliant insulation protection is required.

Key Features

• Rated for 105 degrees C, suitable for standard RMC and IMC wiring applications
• Durable plastic construction resists corrosion and provides electrical isolation
• Smooth interior edge protects conductor insulation from sharp conduit threads
• Fits 1-1/2 inch threaded rigid metal conduit and IMC
• UL listed for compliance with electrical installation standards

Compatibility

Designed as an OEM-style replacement and standard-fit bushing for 1-1/2 inch threaded rigid metal conduit (RMC) and intermediate metal conduit (IMC) systems.

Installation Notes

Installed by licensed electricians as part of conduit termination work governed by the National Electrical Code (NEC). De-energize the circuit and verify lockout/tagout procedures before working at any panel or enclosure entry. Thread the bushing onto the conduit end by hand until snug before pulling conductors through. Do not over-tighten or use pipe wrenches on the plastic bushing body, as this may crack the fitting.

Technical Specifications

• Conduit Size: 1-1/2 inches
• Conduit Type: Rigid Metal Conduit (RMC), Intermediate Metal Conduit (IMC)
• Material: Plastic
• Temperature Rating: 105 degrees C
• Weight: 0.028 pounds
• Listing: UL Listed
• UPC: 00051411975258

Standard Information

• Brand: HALEX
• Manufacturer Part Number: 97525
