Halex 96831 Plated Steel Reducing Washer 1 in to 1/2 in

Product Description

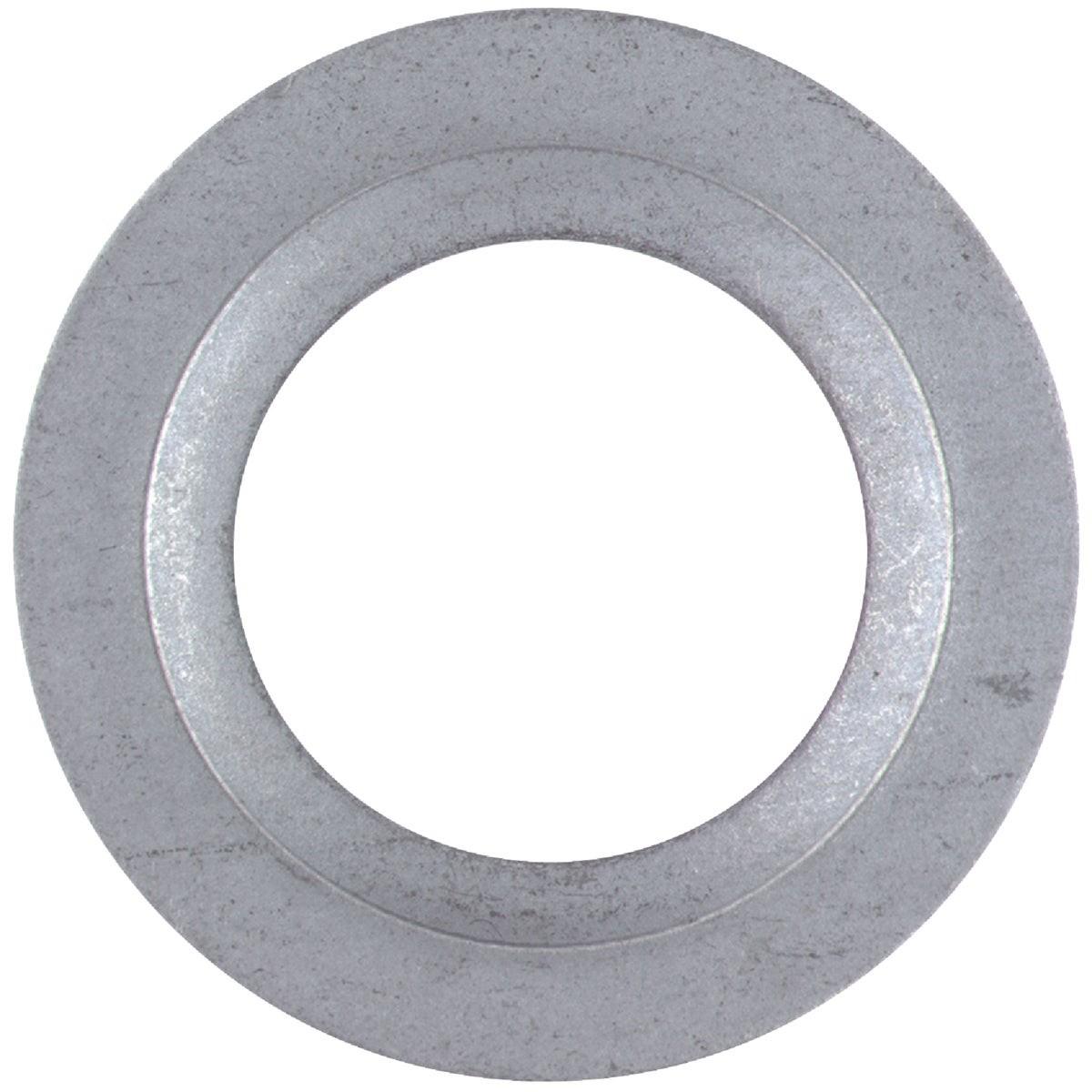

The HALEX 96831 is a plated steel rigid reducing washer designed to center connectors, conduit, and nipples within oversized knockouts in electrical enclosures and panels. The concave construction allows the washer to seat firmly against the knockout opening, creating a stable, flush fit. These washers are used in pairs, with one installed on each side of the box wall, effectively bridging the size gap between a 1-inch connector or conduit and a 1/2-inch knockout. UL listed, the 96831 is a code-acceptable solution for reducing knockout openings in standard electrical boxes, enclosures, and panels. Each pack contains 2 washers.

These reducing washers are suited for residential and commercial electrical installations where conduit, connectors, or nipples must be secured in knockouts larger than the fitting being used. Electricians reach for this part when rough-in or retrofit work calls for fitting 1/2-inch conduit or connectors into 1-inch knockouts. Common applications include junction boxes, pull boxes, load centers, and distribution panels where knockout sizes do not match the installed hardware.

Key Features

• Concave plated steel construction seats firmly in oversized knockouts
• Reduces a 1-inch knockout opening to accept 1/2-inch conduit or connectors
• Designed to be used in pairs, one on each side of the box wall
• UL listed for code-compliant installations
• Sold as a 2-pack

Compatibility

Designed as an OEM-style replacement fitting accessory for use with standard rigid conduit connectors, conduit nipples, and fittings requiring a 1-inch to 1/2-inch knockout reduction in electrical enclosures and boxes.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC requirements. De-energize the panel or enclosure fully before working inside any electrical box. Install one washer on the interior side and one on the exterior side of the knockout opening, then tighten the connector locknut against both washers to secure the assembly. Do not use a single washer in place of a pair, as the concave design requires both sides to properly center and retain the fitting.

Technical Specifications

• Material: Plated Steel
• Knockout Size (Reduces From): 1 inch
• Knockout Size (Reduces To): 1/2 inch
• Construction: Concave
• Pack Quantity: 2
• Weight: 0.046 pounds
• Listing: UL Listed

Standard Information

• Brand: HALEX
• Manufacturer Part Number: 96831
