Halex 91101 90 Degree Clamp Ac Conduit Connector 1/2 in

Product Description

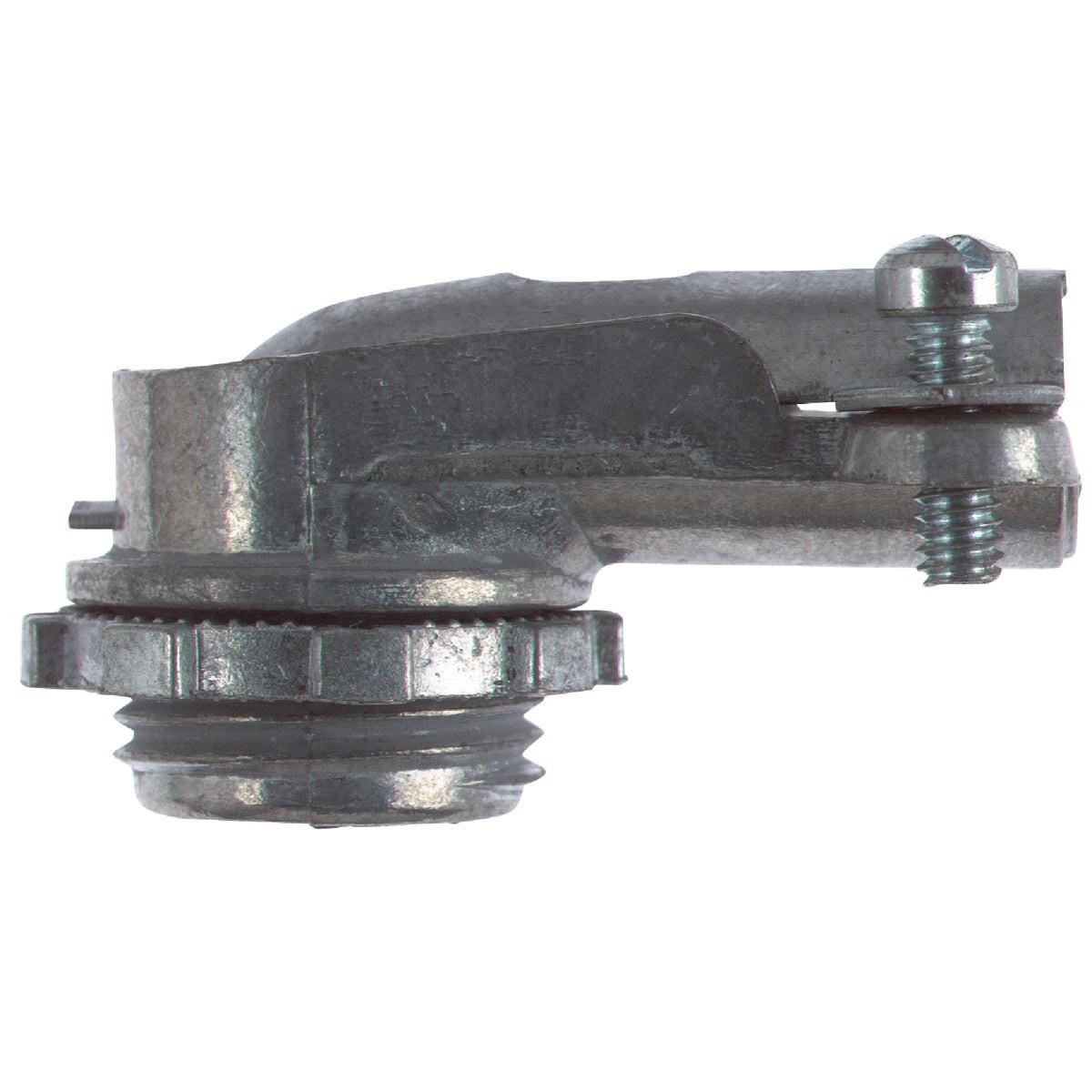

The HALEX 91101 is a 1/2 inch clamp-style 90-degree connector designed for armored cable, flexible steel conduit, and flexible aluminum conduit. It features a built-in cable stop and a free-floating wing nut that allows single-handed tightening without requiring the installer to hold the body in place. This connector is UL Listed and suits electrical rough-in and retrofit work where a right-angle entry into a junction box or panel knockout is required. Electricians rely on this fitting when conduit or cable must make a 90-degree turn at the termination point rather than at a separate bend upstream.

The 91101 is suited for residential and light commercial electrical installations where 1/2 inch armored cable (AC), flexible metal conduit (FMC), or flexible aluminum conduit terminates at a box, panel, or enclosure. The 90-degree body geometry keeps the cable route compact in tight spaces such as panel enclosures, junction boxes, and device boxes where a straight connector would require additional bend radius. The free-floating wing simplifies installation in confined spaces where wrench access is limited.

Key Features

• 90-degree clamp body directs armored cable or flexible conduit at a right angle to the knockout
• Free-floating wing nut allows single-handed tightening in confined spaces
• Built-in cable stop ensures consistent seating depth at the box entry
• Compatible with armored cable, flexible steel conduit, and flexible aluminum conduit
• UL Listed for compliance with NEC installation requirements
• 1/2 inch trade size fits standard 1/2 inch knockouts

Compatibility

Designed for use with 1/2 inch armored cable (AC), flexible steel conduit, and flexible aluminum conduit terminating at standard 1/2 inch knockouts in electrical enclosures, junction boxes, and load centers.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify absence of voltage before opening any enclosure. Insert the connector through the knockout, secure the locknut from inside the box, then seat the cable or conduit fully against the cable stop before tightening the wing. Do not over-tighten the wing clamp, as excessive force can deform flexible conduit and compromise the mechanical connection.

Technical Specifications

• Trade Size: 1/2 inch
• Connector Type: 90-degree clamp
• Compatible Raceway Types: Armored cable, flexible steel conduit, flexible aluminum conduit
• Weight: 0.137 pounds
• Listing: UL Listed
• Minimum Order Quantity: 6
• UPC: 00051411911010

Standard Information

• Brand: HALEX
• Manufacturer Part Number: 91101
