Halex 91100 3/8 in 90 Degree Armored Cable Conduit Connector

Product Description

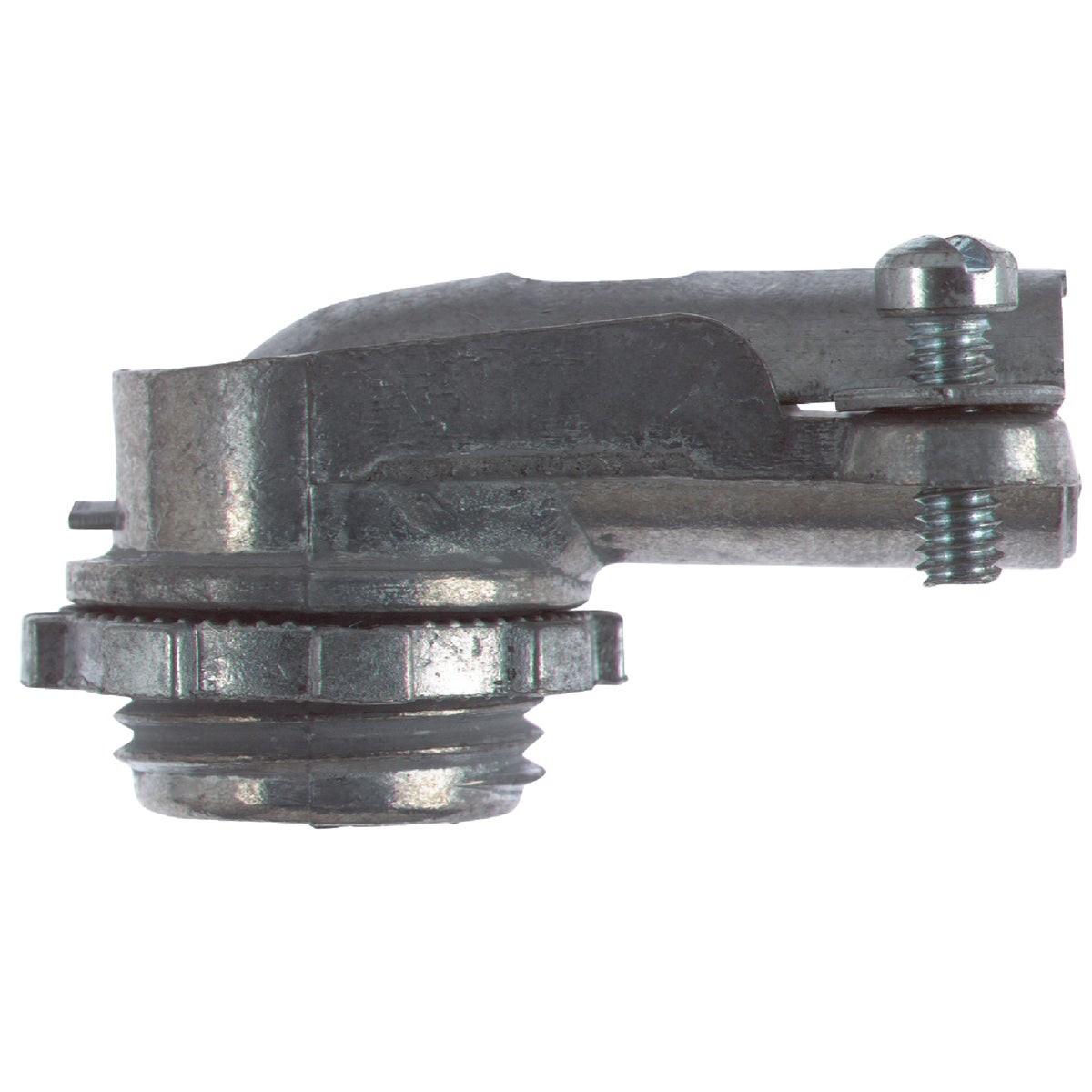

The HALEX 91100 is a 3/8 inch clamp-style 90-degree connector designed for armored cable, flexible steel conduit, and flexible aluminum conduit. It features a built-in cable stop and a free-floating wing nut that allows single-handed tightening without rotating the connector body, reducing installation time in tight enclosure knockouts. This fitting is commonly used when routing flexible conduit into junction boxes, panels, or equipment enclosures where a right-angle entry is required. UL listed for use in standard electrical installations.

This connector suits residential and light commercial electrical work where flexible armored cable or flex conduit must enter an enclosure at a 90-degree angle. Electricians reach for this fitting when straight connectors would create excessive bend radius or clearance problems inside a panel or box. It is sized for 3/8 inch trade-size flex and is sold in packs of 8, making it practical for multi-circuit rough-in work.

Key Features

• 90-degree body routes flex conduit into knockouts without creating a tight external bend
• Free-floating wing nut allows one-hand tightening and stays oriented during install
• Integral cable stop positions the conductor at the correct insertion depth automatically
• Compatible with armored cable, flexible steel conduit, and flexible aluminum conduit
• UL listed for use in standard electrical enclosure applications
• 3/8 inch trade size; sold in packs of 8

Compatibility

Designed as an OEM-style replacement fitting for 3/8 inch trade-size armored cable and flexible metal conduit connections at electrical enclosures and junction boxes.

Installation Notes

Installation is performed by licensed electricians in accordance with the National Electrical Code (NEC). De-energize and lock out the panel or enclosure before installing or modifying any conduit connector. Insert the flex conduit until it seats against the cable stop, then tighten the wing nut securely by hand to clamp the fitting. Do not overtighten with tools in a way that deforms the conduit or fitting body.

Technical Specifications

• Trade Size: 3/8 inch
• Connector Angle: 90 degrees
• Compatible Conduit Types: Armored cable, flexible steel conduit, flexible aluminum conduit
• Weight: 0.095 pounds
• Certifications: UL Listed
• Package Quantity: 8 per pack
• UPC: 00051411911003

Standard Information

• Brand: HALEX
• Manufacturer Part Number: 91100
