Product Description

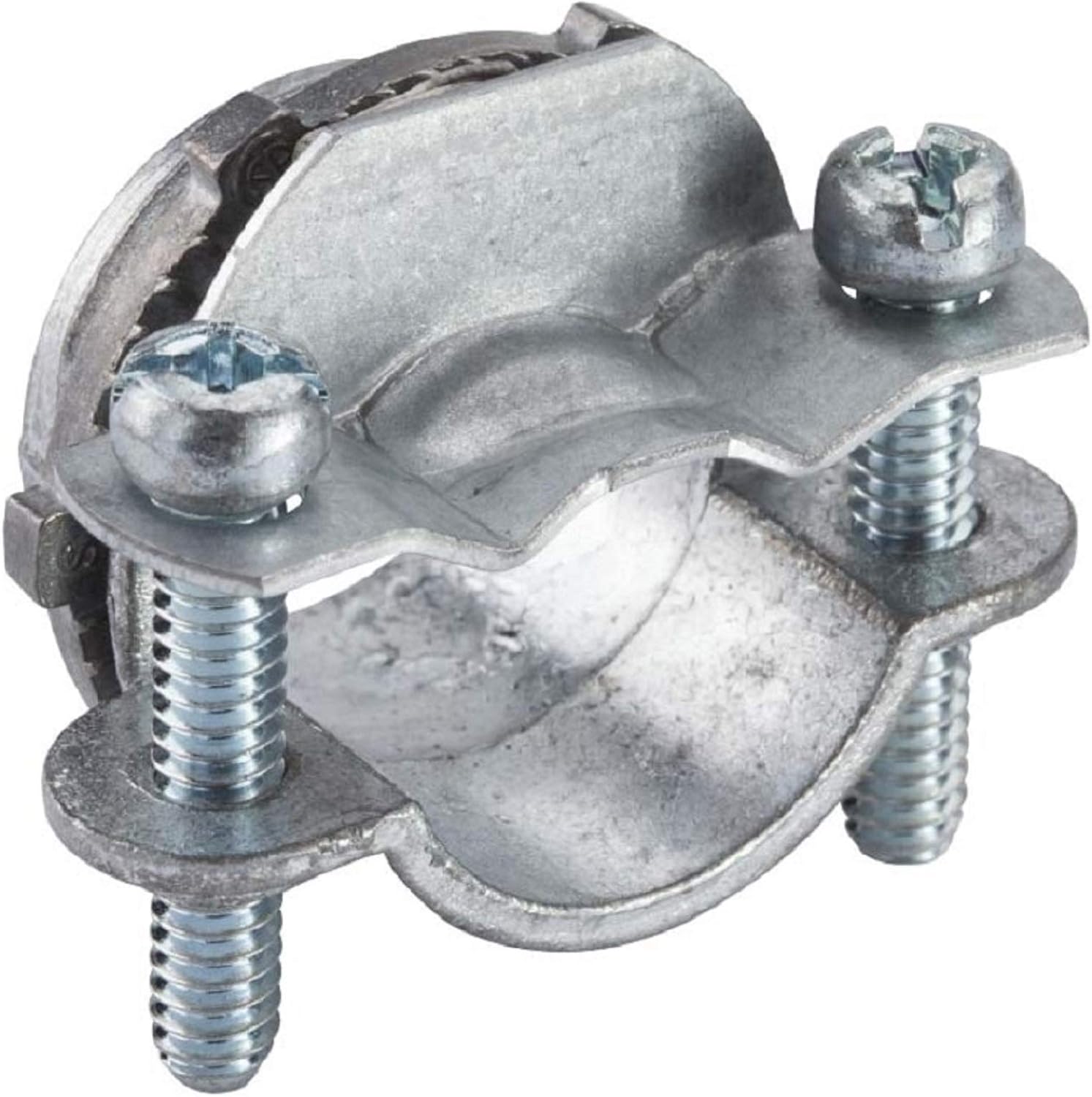

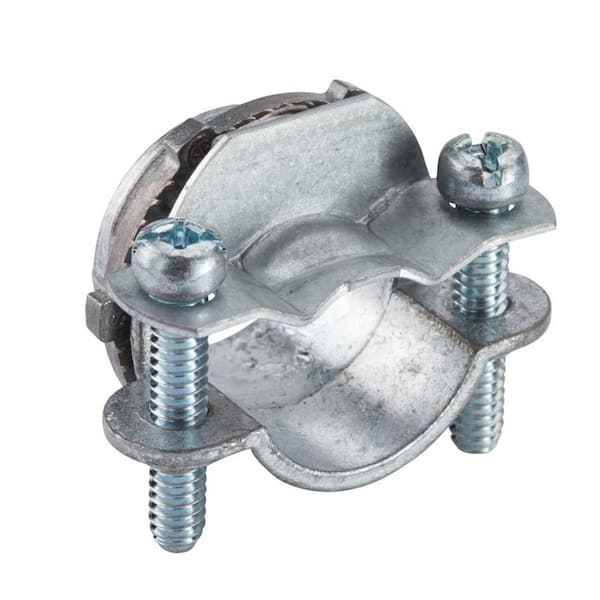

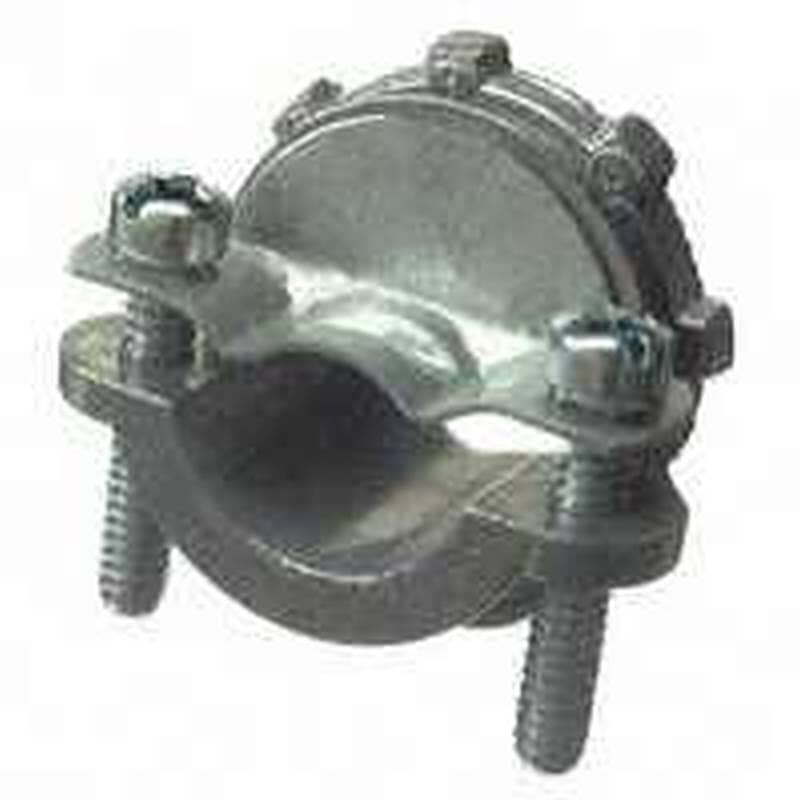

The HALEX 90514 Non-Metallic (NM) Twin-Screw Clamp Connector is 1-1/4 in. and comes 1 per pack. It is designed for use in dry locations to connect nonmetallic sheathed cable to a steel outlet box or other metal enclosure. The connector ensures corrosion resistance and ground continuity for indoor use.
- 1-1/4 in. Non-Metallic (NM) Twin-Screw Clamp Connector
- 1 per pack
- Suitable for dry locations
Product Highlights
This HALEX clamp connector is ideal for securing NM cables and flexible cords to metal enclosures.
Product Information
Standard Information
-
Brand: HALEX
-
Manufacturer Part Number: 90514
Technical Specifications
-
Style: 1 1/4" in. Trade Size, 1 Per Pack
-
Usage: In a dry location, use to connect nonmetallic sheathed cable to a steel outlet box or other metal enclosure.
-
Unit Count: 1.0 Count
-
Number Of Holes: 1
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Set Screws, Locknut
-
Item Model Number: 90514
-
Part Number: 90514
-
Size: 1 1/4"
-
Material: Zinc
-
Item Package Quantity: 1.0
-
Manufacturer: Halex Company
-
Manufacturer #: 90514
-
Length: 2-1/8 in
-
Width: 1-1/4 in
-
Height: 2-1/8 in
-
Trade Size: 1-1/4 in
-
Clamping Range: 1-1/4 in
-
Suitable for: #6/3 to #2/3 AWG Non-Metallic Cable, 0.8 to 1.35 in Dia Flex Cord or (3) Conductor or (3) #1/0 Minimum to (3) Conductor or (3) #2/0 Maximum SE Cable
