Halex 36020B Ground Clamp 1 1/4-2in

Product Description

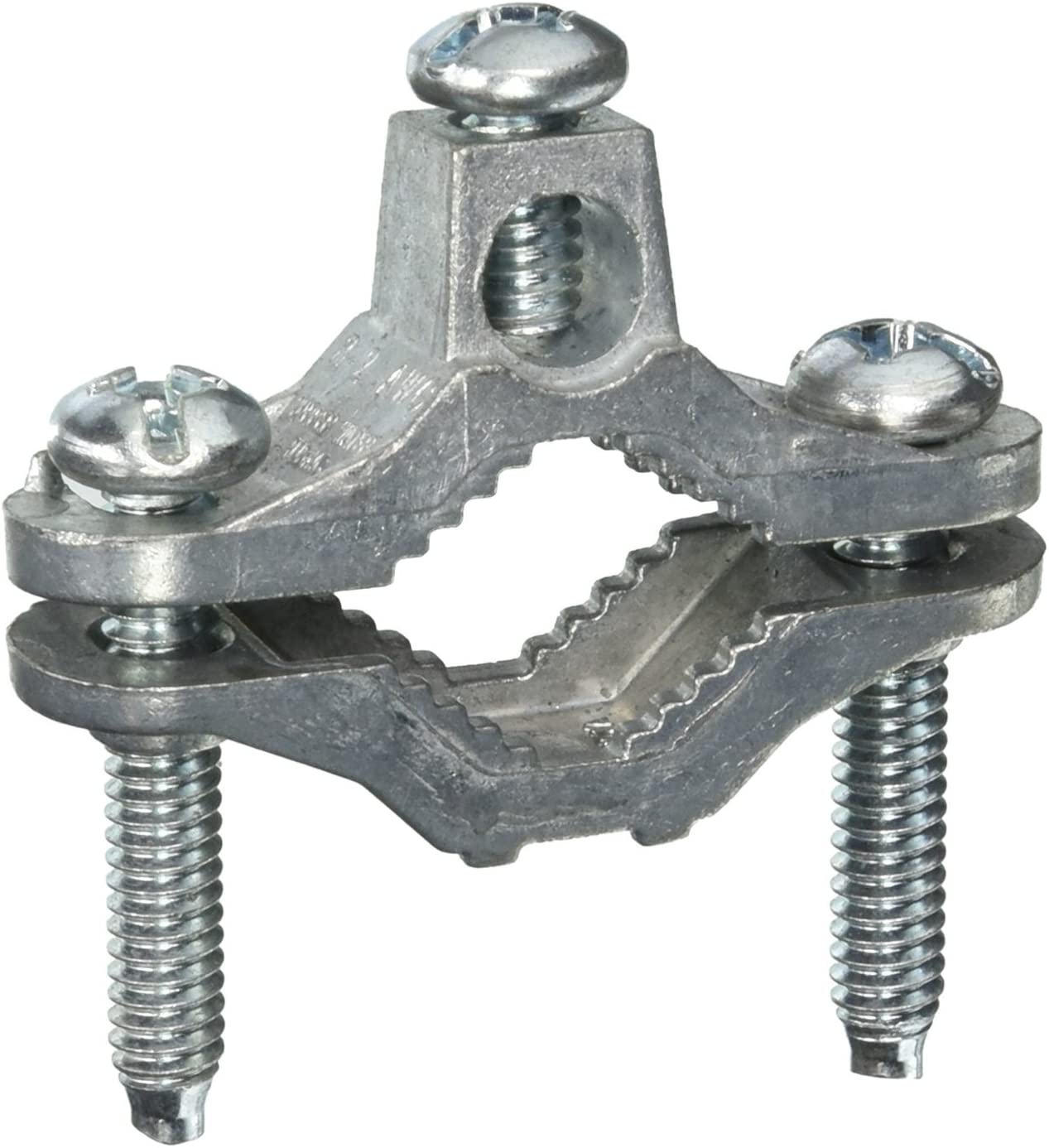

The HALEX 36020B is a bronze ground clamp designed for connecting bare ground wire to pipes. This clamp features a 3.594 inch width and utilizes a (2) screw connector for pipe attachment and a (1) screw wire connector for installation. It is suitable for 10 to 2 AWG conductor sizes and 1-1/4 to 2 inch IPS pipe sizes, ensuring secure electrical grounding.

• Bronze material construction for durability and effective grounding.
• Designed for 10 to 2 AWG conductor sizes and 1-1/4 to 2 inch IPS pipe sizes.
• UL 43Y8 and CSA approved for safety and compliance.

Product Highlights

Secure bronze ground clamp for bare wire to pipe connections.

Product Information

Standard Information

• Brand: HALEX
• Manufacturer Part Number: 36020B

Technical Specifications

• Material: Bronze
• Width: 3.594 inch
• Application: Ground wire to pipe
• Installation: (2) Screw connector to pipe, (1) Screw wire connector
• Approvals: UL 43Y8, CSA
• Conductor Size: 10 to 2 AWG
• Pipe Size: 1-1/4 to 2 inch IPS
