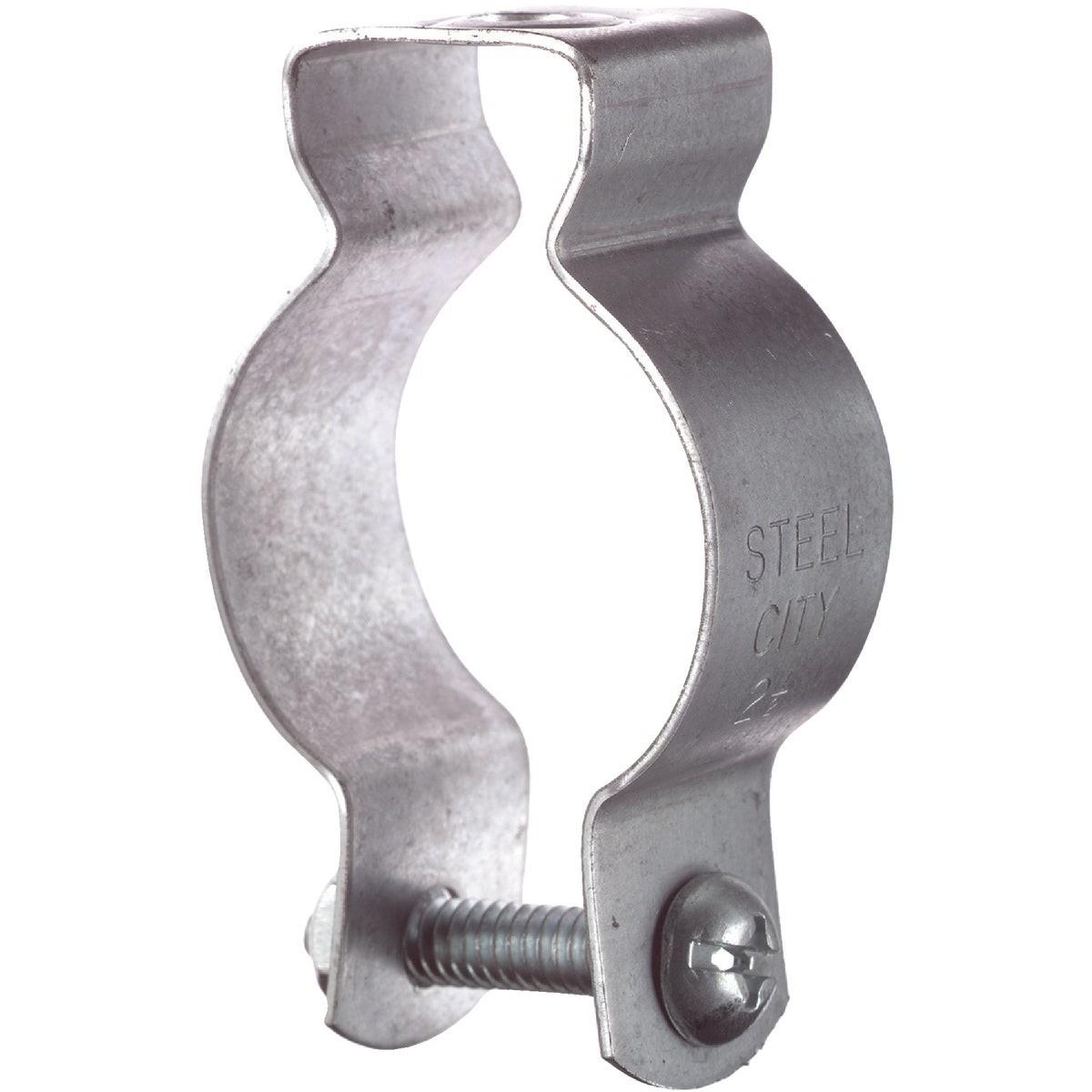

Halex 26781 Conduit Hanger 3/4 Inch Emt Imc Rigid 5-pack

Product Description

The HALEX 26781 is a conduit hanger designed for suspending and supporting 3/4 inch EMT, IMC, and rigid conduit runs with a rated load capacity of 500 pounds. Each hanger ships as a 5-pack and includes a bolt assembly, making it a practical choice for stocking service vans or completing multi-point installations in a single trip. Electricians use these hangers to secure conduit to structural members, beams, and ceiling supports in both new construction and retrofit work. The straightforward bolt-on design reduces installation time and keeps conduit runs properly aligned and code-compliant.

These hangers are suited for commercial and residential electrical installations where EMT, IMC, or rigid conduit must be anchored at regular intervals per NEC requirements. Common applications include branch circuit conduit runs in mechanical rooms, utility spaces, and exposed ceiling installations. The 500-pound capacity rating provides a reliable safety margin for loaded conduit assemblies. Sold in packs of 5, they are well-suited for larger conduit jobs requiring multiple support points along a run.

Key Features

• Supports 3/4 inch EMT, IMC, and rigid conduit in a single hanger design
• 500-pound load capacity for reliable conduit support
• Includes bolt assembly — no additional hardware required
• 5-pack quantity reduces per-unit cost and minimizes return trips
• UPC coded for streamlined inventory and purchasing

Compatibility

Designed for use with 3/4 inch EMT, IMC, and rigid conduit as an OEM-style support hanger for standard electrical conduit installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC support interval requirements for the conduit type being used. De-energize any circuits in the work area before securing conduit runs. Ensure the mounting surface and fastener selection are rated to handle the combined load of the conduit, conductors, and hanger assembly. Do not exceed the 500-pound rated capacity.

Technical Specifications

• Conduit Size: 3/4 inch
• Compatible Conduit Types: EMT, IMC, Rigid
• Load Capacity: 500 pounds
• Package Quantity: 5-Pack
• Package Weight: 0.372 pounds
• UOM: Pack

Standard Information

• Brand: HALEX
• Manufacturer Part Number: 26781
