Halco Lighting 90520 LED 2x4 Flat Panel Selectable 30/35/40W (2x4) FPL-24-LS-CS-UNV

Brand: HALCO LIGHTING
SKU: 90520
Availability: In Stock

Ships same day if ordered by 12 pm
$59.37
$59.37
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Halco Lighting 90520 is a 2x4 backlit LED flat panel with selectable lumen output and selectable color temperatures. The fixture offers field-selectable wattages (30W, 35W, 40W) and lumen outputs (approximately 3700 / 4300 / 5600 lm), operates on 120-277V, and supports 0-10V dimming. It is DLC 5.1 Premium listed, IC rated, and intended for recessed T-grid or surface commercial applications with a rated life of 50,000 hours.

  • Selectable wattage (30W / 35W / 40W) and lumen output (~3700 / 4300 / 5600 lm)

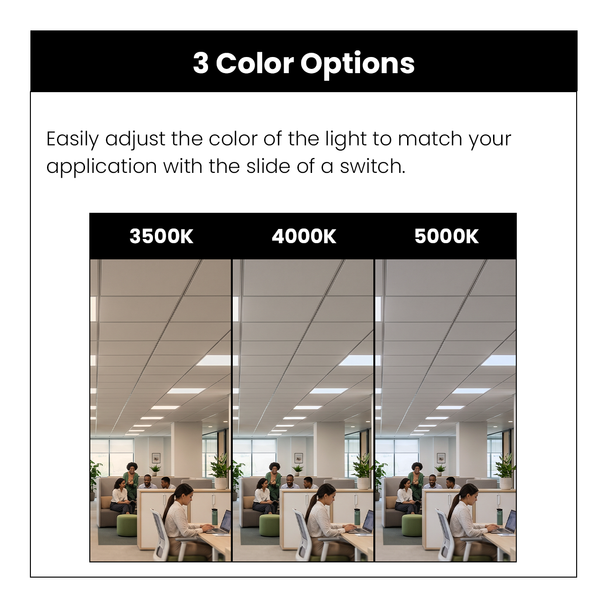

  • Selectable color temperatures: 3500K, 4000K, 5000K; 0-10V dimmable
  • Universal 120-277V input, DLC 5.1 Premium, ETL listed, IC rated; rated life 50,000 hours

Product Highlights

2x4 backlit LED panel; selectable wattage and CCT; 120-277V, 0-10V dimming; DLC Premium; 50,000-hour life.

Product Information

Standard Information

  • Brand: HALCO LIGHTING
  • Manufacturer Part Number: 90520
Technical Specifications
Brand
Halco Lighting
Manufacturer Part Number
90520
Model Number
FPL-24-LS-CS-UNV
Product Code / SKU
FPL-24-LS-CS-UNV
Technology
LED
Size
2x4
Wattage
Selectable 30W, 35W, 40W
Lumen Output
Selectable 3700 / 4300 / 5600 lm
Color Temperature
Selectable 3500K, 4000K, 5000K
Input Voltage
120-277V
Input Frequency
50/60 Hz
Dimmable
Yes
Dimming Type
0-10V
CRI
80
Rated Life
50,000 hours
Beam Angle
115°
Power Factor
0.9
Operating Temperature
Min -20C (-4F); Max 40C (104F)
Mounting Type
Recessed T-grid or surface (surface and drywall mounts sold separately)
Housing Material
Steel housing with aluminum frame
Lens Material
Diffused lens (PMMA listed in some sources)
Finish
White
IP Rating
IP20
Location Rating
Damp
IC Rated
Yes
DLC Listing
DLC 5.1 Premium
DLC ID
S-GG0Y38
Certifications
ETL Listed; DLC 5.1 Premium; Damp Location; IP20 Rated; IC Rated; RoHS; CA Title 24; TAA
Mount Included
No
Emergency Backup Available
Yes
