HALCO LIGHTING Halco Lighting 90519 2x2 Flat Panel Lumen and Color Selectable 20/30/35W (2x2)
HALCO LIGHTING Halco Lighting 90519 2x2 Flat Panel Lumen and Color Selectable 20/30/35W (2x2)
HALCO LIGHTING Halco Lighting 90519 2x2 Flat Panel Lumen and Color Selectable 20/30/35W (2x2)
HALCO LIGHTING Halco Lighting 90519 2x2 Flat Panel Lumen and Color Selectable 20/30/35W (2x2)

Halco Lighting 90519 2x2 Flat Panel Lumen and Color Selectable 20/30/35W (2x2)

Brand: HALCO LIGHTING
SKU: 90519
Availability: In Stock

Ships same day if ordered by 12 pm
$50.50
$50.50
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

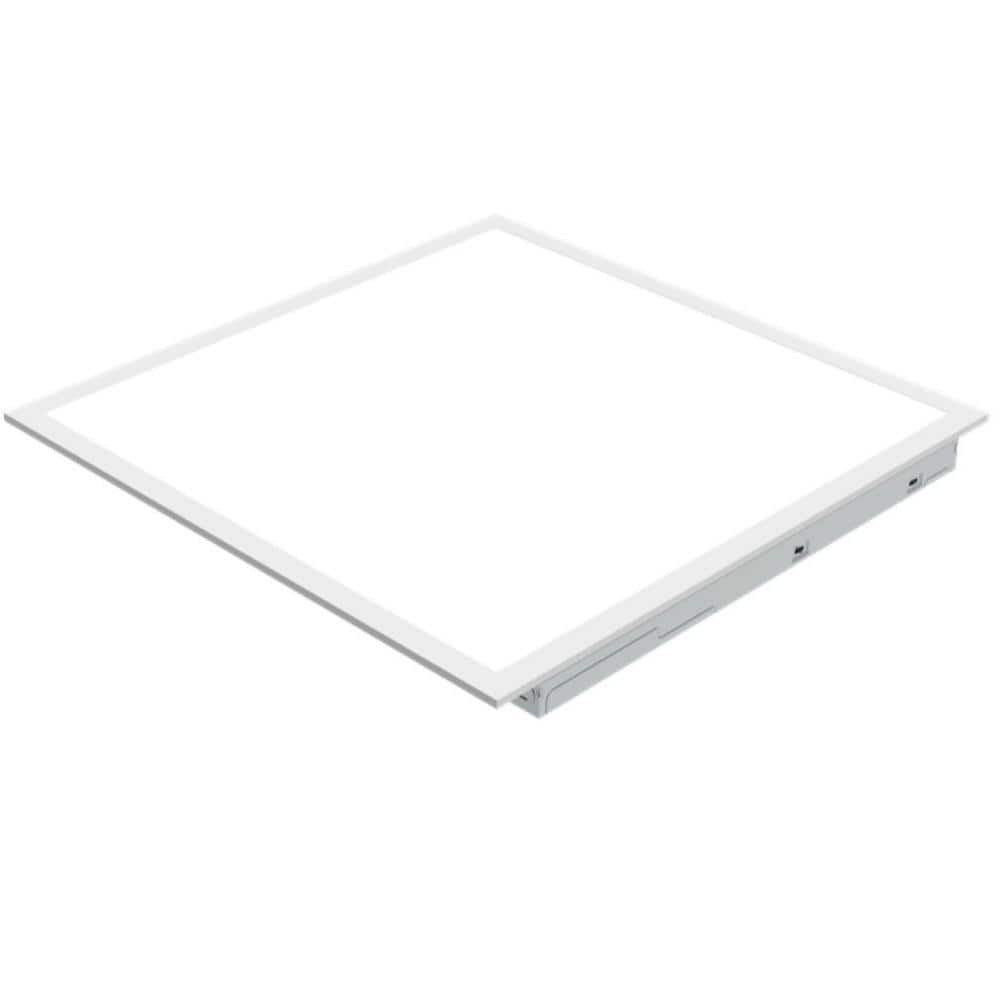

Halco Lighting 90519 is a 2x2 integrated LED flat panel that provides field-selectable lumen outputs (2500 / 3700 / 4300) and selectable color temperatures (3500K, 4000K, 5000K). The fixture uses backlit LED technology, operates on universal 120-277V input, supports 0-10V dimming, and is DLC Premium listed and ETL certified for damp locations. The panel features a steel housing with aluminum frame and a PMMA lens and has a rated life of 50,000 hours.

  • Field-selectable wattage and lumen output: 20W, 30W, 35W; lumens 2500 / 3700 / 4300
  • Color selectable CCT: 3500K, 4000K, 5000K with 0-10V dimming and universal 120-277V input
  • DLC 5.1 Premium and ETL listed, IC rated, IP20, steel housing with aluminum frame and PMMA lens

Product Highlights

2x2 recessed LED flat panel, lumen and color selectable, 0-10V dimmable, DLC Premium, 50,000 hour life

Product Information

Standard Information

  • Brand: HALCO LIGHTING
  • Manufacturer Part Number: 90519
Technical Specifications
Brand
Halco Lighting
Manufacturer Part Number
90519
Model Number
FPL-22-LS-CS-UNV
Product Code
FPL-22-LS-CS-UNV
Product Name
2x2 Flat Panel Lumen and Color Selectable
Size
2 x 2 ft
Technology
Integrated LED, backlit
Wattage Options
20W, 30W, 35W
Max Wattage
35W
Lumen Output Options
2500 / 3700 / 4300 lumens
Efficacy
125 lm/W
Color Temperature Options
3500K, 4000K, 5000K
CRI
80
Input Voltage
Universal 120-277V
Input Frequency
50/60 Hz
Dimmable
Yes, 0-10V
Beam Angle
115°
Power Factor
0.9
Average Rated Life
50,000 hours
Min Operating Temperature
-20°C (-4°F)
Max Operating Temperature
40°C (104°F)
Mounting Type
Recessed T-grid
Mount Options
Recessed or surface (surface and drywall mounts sold separately)
Housing Material
Steel housing with aluminum frame
Lens Material
PMMA (frosted)
Finish
White
IP Rating
IP20
IC Rated
Yes
DLC Qualification
DLC 5.1 Premium
DLC ID
S-PY70HL
Certifications
ETL listed, DLC 5.1 Premium, RoHS, FCC part 15, Title 24 compliance
Emergency Backup Available
Yes
Environment Rating
Damp location
Dimensions (L x W x H)
24 in x 24 in x 1.7 in
Weight
4.7 (per item)
