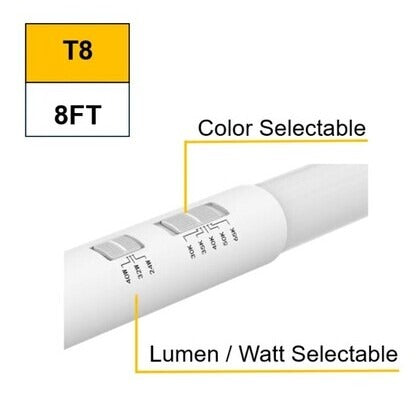

Halco Lighting 87226 T8 Type B Linear Tube 24/32/40W Selectable (8 ft) 96T8-40S-8CS-DE-BYP3-LED

Product Description

Halco Lighting 87226 is an 8-foot T8 Type B ballast-bypass LED tube with selectable wattage, lumen output, and color temperature for linear retrofit installations. The double-ended lamp operates on 120–277 V, offers selectable 24/32/40 W with 3500/4400/5500 lm outputs, supports FA8 and R17D end caps, and is rated for 50,000 hours. It is non-dimmable as shipped and DLC 5.1 qualified for FA8 base.

• Selectable 24/32/40 W; lumen selectable 3500 / 4400 / 5500 lm; color selectable 3000K, 3500K, 4000K, 5000K, 6500K
• Double-ended Type B (ballast bypass) operation for 120–277 V; field-adjustable end caps support FA8 and R17D
• Rated life 50,000 hours; CRI 82; up to 146 lm/W efficacy; beam angle 210°; IP20; non-dimmable as shipped (dimming via separate driver)

Product Highlights

8 ft T8 LED tube with selectable wattage, lumen, and color temperatures; double-ended Type B bypass for 120–277 V retrofit applications; DLC 5.1 qualified for FA8 base.

Product Information

Standard Information

• Brand: HALCO LIGHTING
• Manufacturer Part Number: 87226
