Halco Lighting 52106 Electronic Compact Fluorescent Ballast Kit

Product Description

The Halco Lighting 52106 is an electronic ballast kit that is suitable for compact fluorescent lamps. This ballast operates at a voltage range of one hundred twenty to two hundred seventy-seven volts and can power one or two lamps of twenty-six watts each. The programmed start technology ensures reliable operation and extends the life of the lamps.

• Operates one or two twenty-six watt CFL lamps.
• Includes necessary mounting hardware and lead wires.
• Features programmed start technology for improved functionality.

Product Highlights

This ballast kit is designed for ease of installation and performance.

Product Information

Standard Information

• Brand: Halco
• Manufacturer Part Number: 52106

Technical Specifications

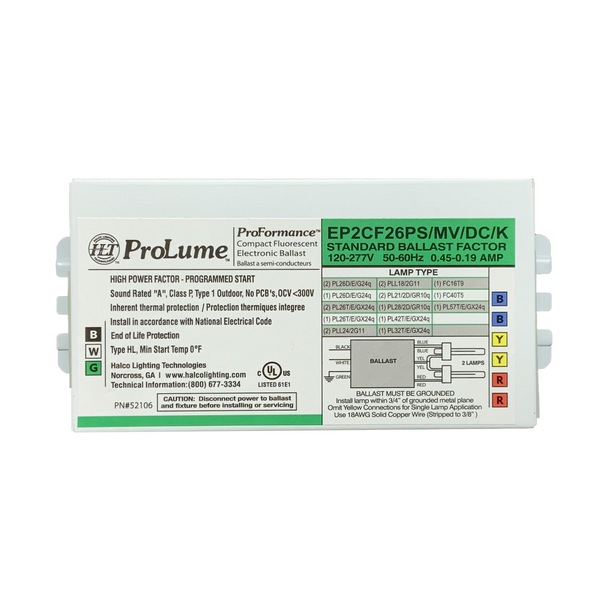

• Model: EP2CF26PS/MV/DC/K
• UPC: 807154521067
• Ballast Type: Electronic - CFL
• Primary Lamp: PL26D/E/G24q
• Number of Lamps: 1, 2
• Input Voltage: 120-277V
• Power: 26W
• Dimmable: No
• Start Type: Programmed Start
• Lamp Connection: Series
• Input Frequency: 50/60Hz
• Ballast Factor: 1
• THD: <10%
• Crest Factor: <1.70
• Power Factor: 0.99
• Minimum Start Temperature: 0°F/-18°C
• Sound Rating: A
• UL Listed: Yes
• cUL Listed: Yes
• CSA Listed: No
• RoHS Compliant: Yes
• UL Type: Class P, Type 1, Outdoor
• Length: 4.63 in.
• Width: 2.41 in.
• Height: 1.00 in.
• Mounting: 5.00 in.
• Ballast Lamp Type: CFL
• Ballast Lamp Watts: 18-57W
