Halco Lighting 23533 ProLED Select Wallpack 70/80/90/100W (Selectable Wattage) WPFS2-WS-CS-U-PC

Brand: HALCO LIGHTING
SKU: 23533
Availability: In Stock

Ships same day if ordered by 12 pm
$214.04
$214.04
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

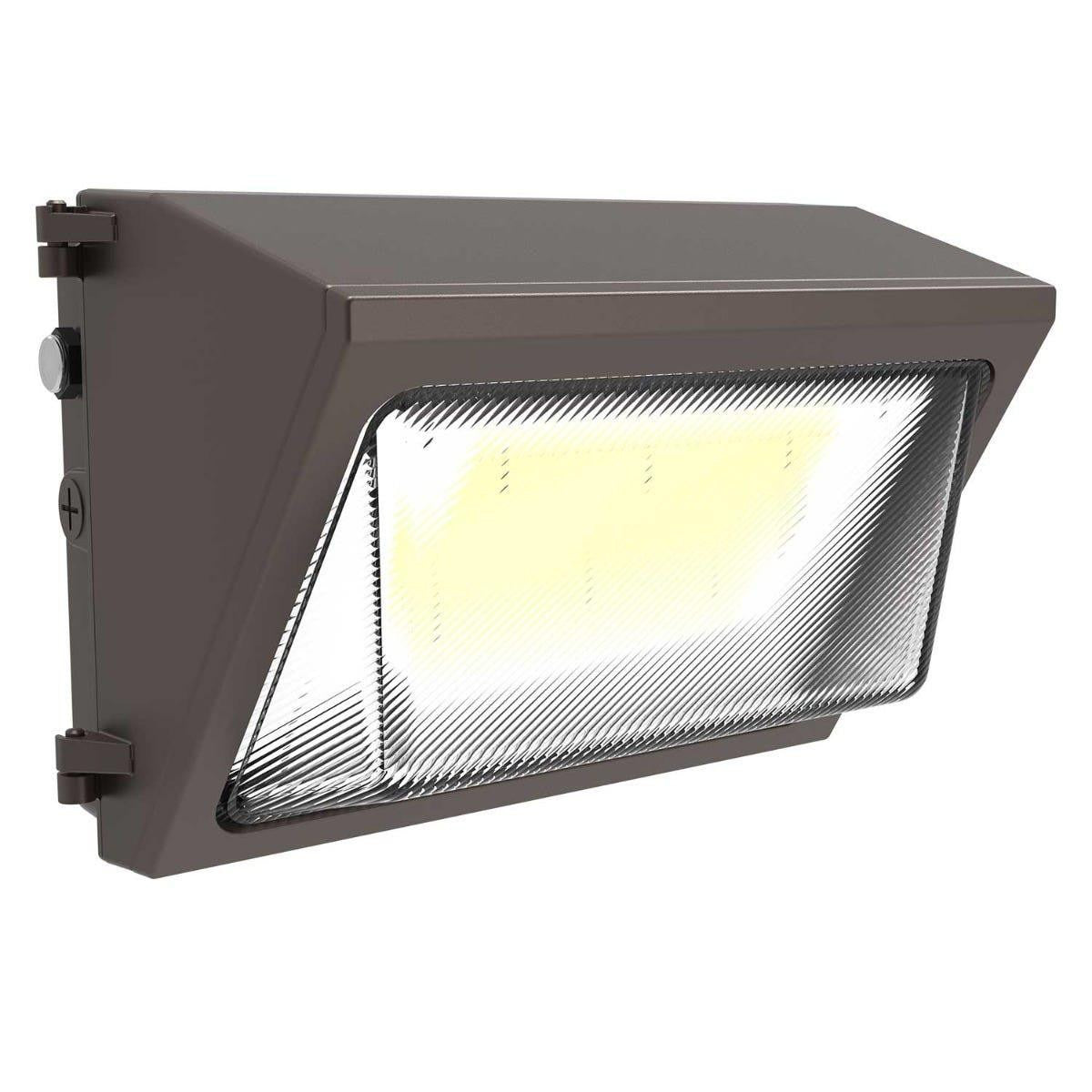

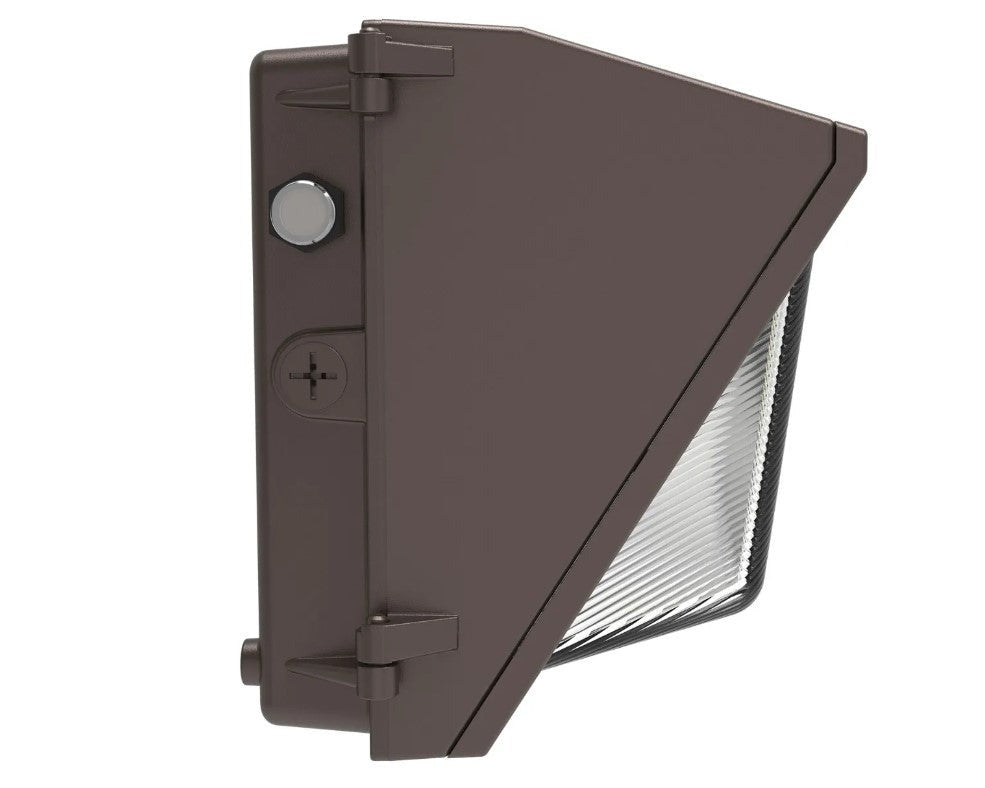

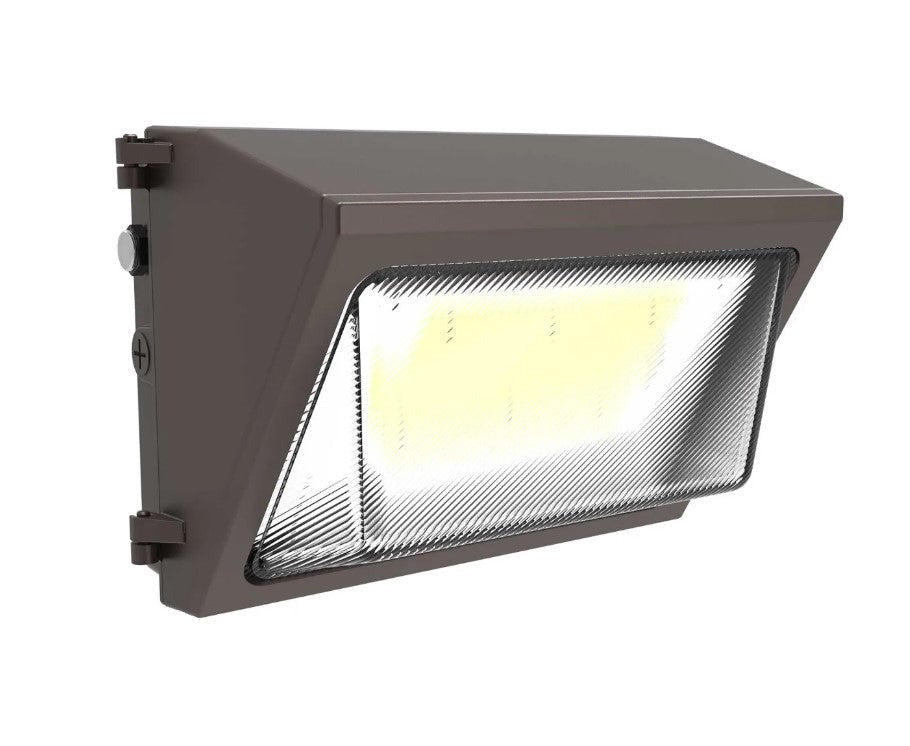

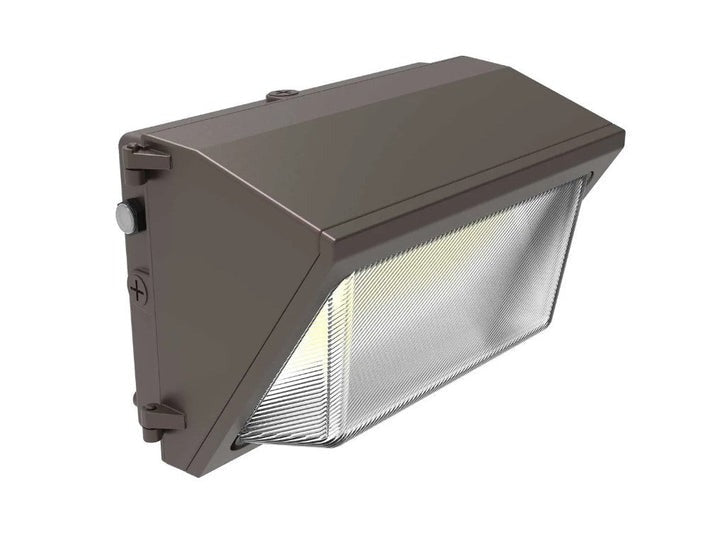

Halco Lighting 23533 is a ProLED Select Wallpack (WPFS2-WS-CS-U-PC) offering field-selectable wattage and color temperature for commercial and industrial exterior lighting. The fixture supports selectable 70W/80W/90W/100W output, operates on 120-347V 50/60 Hz, includes an installed button photocell for dusk-to-dawn control, and delivers 9,656-13,344 lumens with CRI 80 and L70 rated life of 50,000 hours. It features die-cast aluminum housing, borosilicate glass lens, Type IV distribution, IP65 wet-location rating.

  • Field-selectable wattage (70W, 80W, 90W, 100W) and CCT (3000K, 4000K, 5000K)
  • Operates on 120-347V 50/60 Hz with integrated button photocell and Type IV distribution
  • Die-cast aluminum housing, shatter-resistant borosilicate glass lens, IP65 wet-location rated

Product Highlights

Selectable 70-100W output, 9,656-13,344 lm, IP65, 50,000 hour L70

Product Information

Standard Information

  • Brand: HALCO LIGHTING
  • Manufacturer Part Number: 23533
Technical Specifications
Manufacturer
Halco Lighting
Brand
Halco
MPN
23533
Model / Product Code
WPFS2-WS-CS-U-PC
Product Name
ProLED Select Wallpack
Wattage
Selectable 70W, 80W, 90W, 100W
Input Voltage
120-347V AC
Frequency
50/60 Hz
Lumens
9,656-13,344 lm
Color Temperature
Selectable 3000K, 4000K, 5000K
CRI
80
Rated Life
50,000 hours (L70)
Power Factor
0.9
Light Distribution
Type IV
Photocell
Installed button photocell (integrated)
Housing Material
Die-cast aluminum
Lens Material
Borosilicate glass (shatter-resistant)
IP Rating
IP65
Location Rating
UL wet location
Surge Protection
4 kV
Dimmable
No
Equivalent Wattage
300-400W HID equivalent
Efficacy
Up to 148 lumens per watt (varies by configuration)
Dimensions
15.55 x 10.83 x 10.04 in
Weight
10.58 lb
Mounting

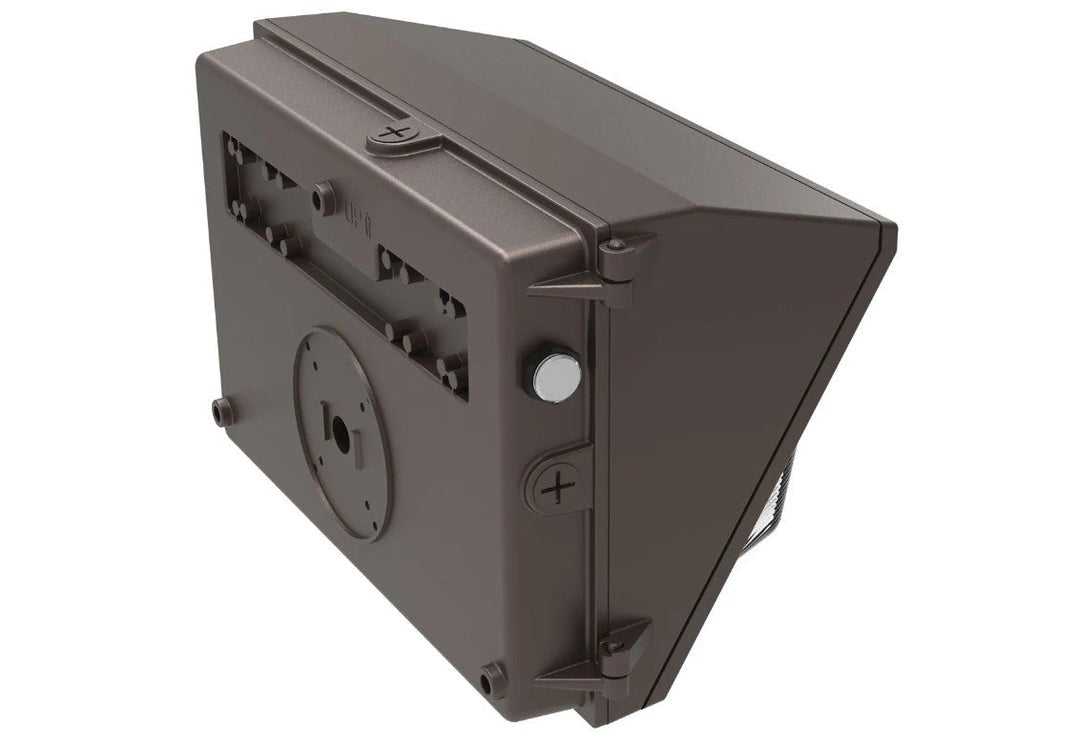

Traditional wall mount with 1/2" knockouts
Certifications
cULus, RoHS, DLC 5.1 Standard (pending per source)
Applications
Distribution centers, factories, warehouses, self storage, commercial buildings
